Inside Rearview Mirror Replacement



Inside Rearview Mirror Replacement

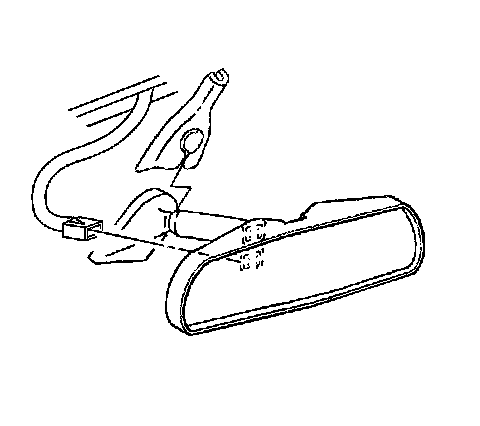

Removal Procedure





1. Use a flat-bladed tool in order to remove the wire cover (if equipped).
2. Disconnect the electrical connector (if equipped).





3. Insert a small, flat-bladed tool into the slot from the bottom.
4. Press slightly in order to release the tab.
5. Slide the mirror off of the support.

Installation Procedure

1. Slide the mirror on to the mirror support.
2. Connect the electrical connector (if equipped).





3. Install the wire cover (if equipped).
