Mirror Replacement

REMOVAL PROCEDURE




1. Remove the door trim panel.

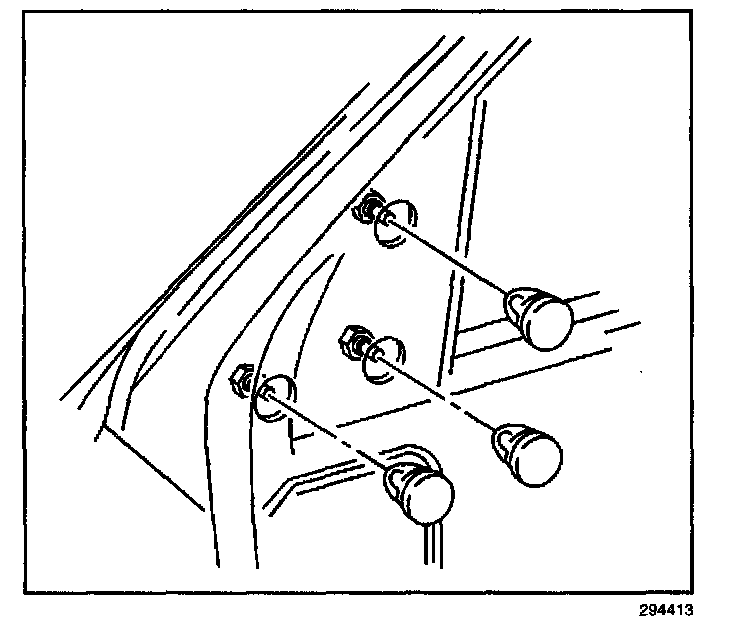

2. Remove the access hole plugs.

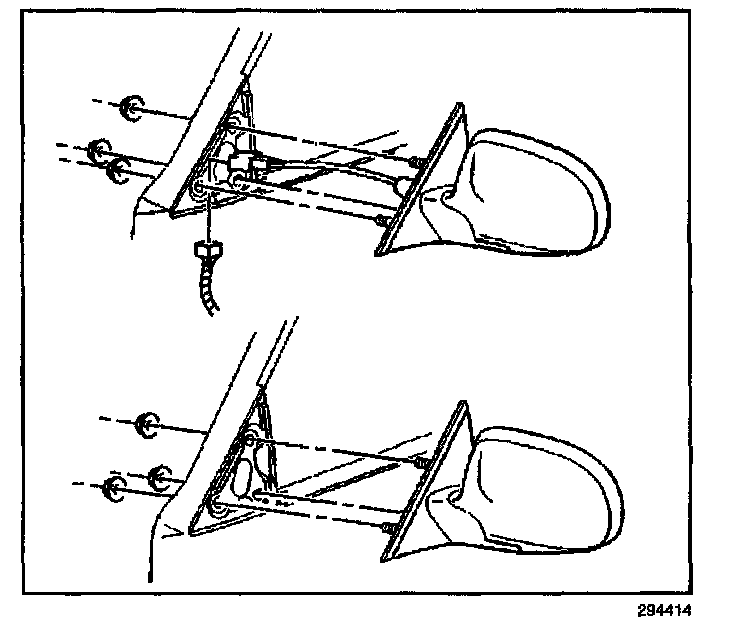

3. Remove the nuts that retain the outside rearview mirror to the door.




4. Remove the outside rearview mirror from the door.
5. Disconnect the electrical connector, if equipped.

INSTALLATION PROCEDURE




1. Connect the electrical connector if equipped.
2. Install the outside rearview mirror to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the nuts that retain the outside rearview mirror to the door.

Tighten
Tighten the nuts to 6 N.m (53 lb in).

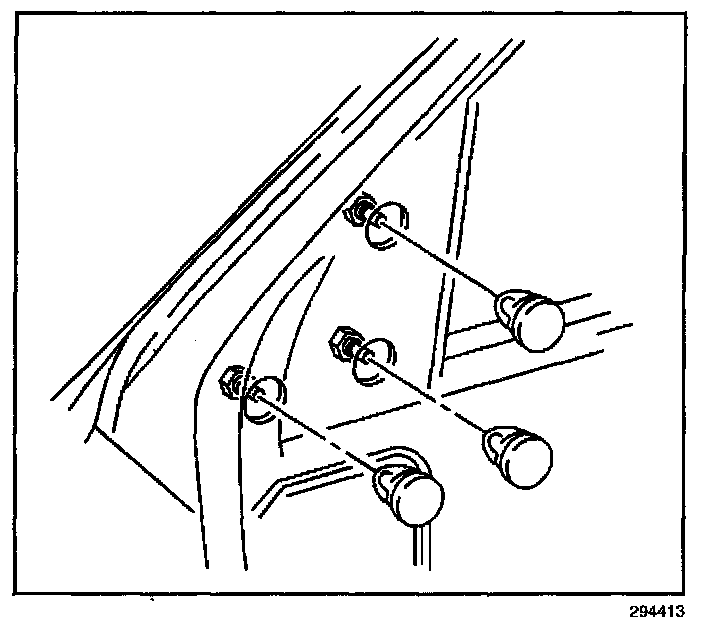

4. Install the access hole plugs.
5. Install the door trim panel.
