Seats: Adjustments



Jump Seat Adjustment

Removal Procedure

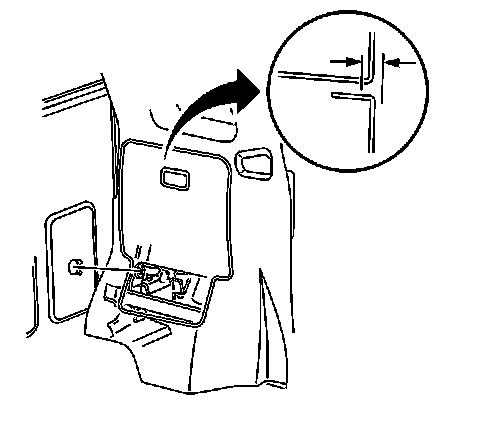

Important: Use the following procedure in order to adjust the jump seat if the seat is not parallel to the body side trim panel when the seat is in the closed position.




1. Use a flat-bladed tool in order to carefully remove the adjustment bolt cover.
2. Turn the bolt clockwise or counterclockwise until the seat trim panel is parallel to the body side trim panel.

Installation Procedure




1. Install the adjustment bolt cover.
2. Snap the adjustment bolt cover into place.
