Bench Seat Replacement



Bench Seat Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the battery negative cable in the power seat only.
2. Remove the seat adjuster trim covers.
3. Disconnect the electrical connectors, if equipped.

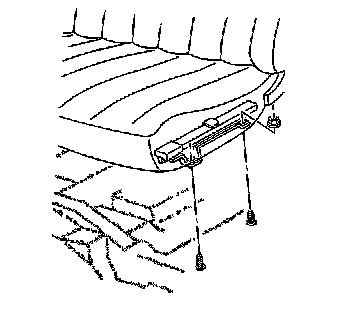

4. Remove the seat mounting nuts.
5. Remove the seat mounting bolts.
6. Guide the seat belts through the slots in the seat. Remove the seat from the vehicle.

Installation Procedure




1. Guide the seat belts through the slots in the seat. Install the seat to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the seat mounting bolts.

Tighten the seat mounting bolts to 70 N.m (52 lb ft).

3. Install the seat mounting nuts.

Tighten the seat mounting nuts to 45 N.m (33 lb ft).

4. Connect the electrical connectors, if equipped.
5. Install the seat adjuster trim covers.
6. Connect the battery negative cable.
