Jump Seat Replacement

Jump Seat Replacement

Removal Procedure

1. Remove the body side trim panel.

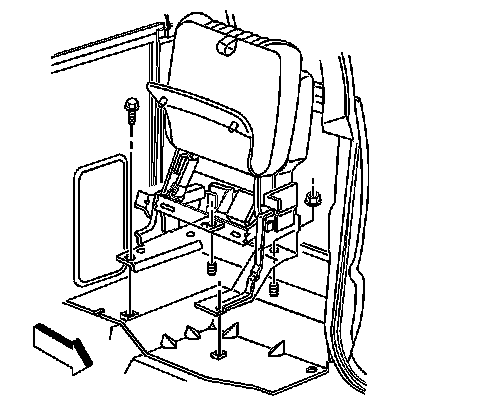

2. Remove the jump seat retaining bolts and nuts.
3. Remove the jump seat from the vehicle.

Installation Procedure

1. Install the jump seat to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the jump seat retaining bolts and nuts.

Tighten the jump seat retaining bolts and nuts to 25 N.m (19 lb ft).

3. Install the body side trim panel.
