Lumbar Support Knob Replacement

Lumbar Support Knob Replacement

Removal Procedure

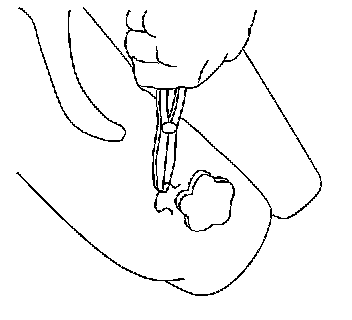

1. Use a flat-bladed tool in order to remove the retainer clip.
2. Remove the lumbar adjustment handle from the seat bottom.

Installation Procedure

1. Install the lumbar adjustment handle to the seat bottom.
2. Ensure that the adjustment handle is secure before installing the retainer clip to the adjustment handle.
3. Install the retainer clip to the adjustment handle.
