Oldsmobile
>>
2000
>>
Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

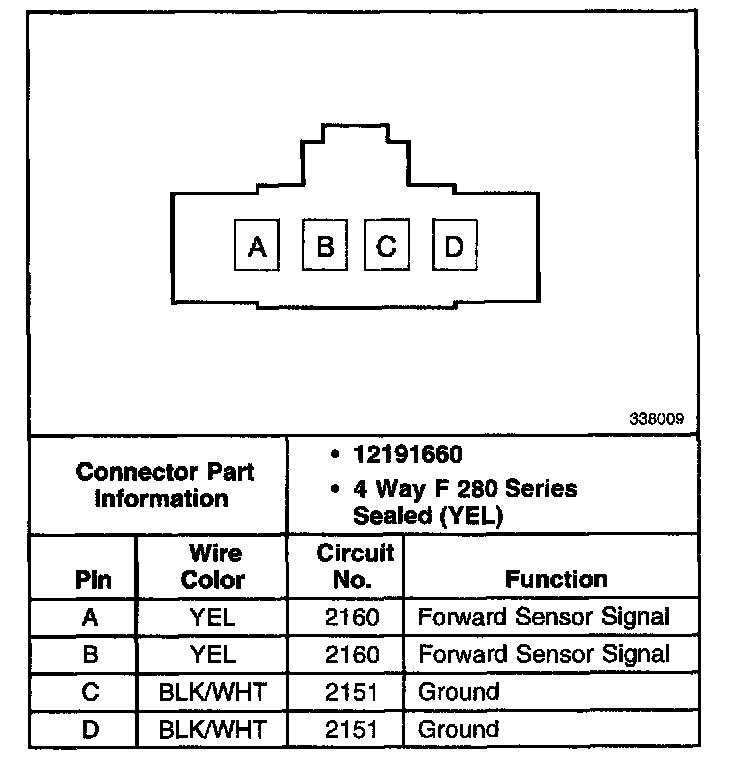

Inflatable Restraint Front End Discriminating Sensor, LH
Inflatable Restraint Front End Discriminating Sensor, LH
Inflatable Restraint Front End Discriminating Sensor, LH:
