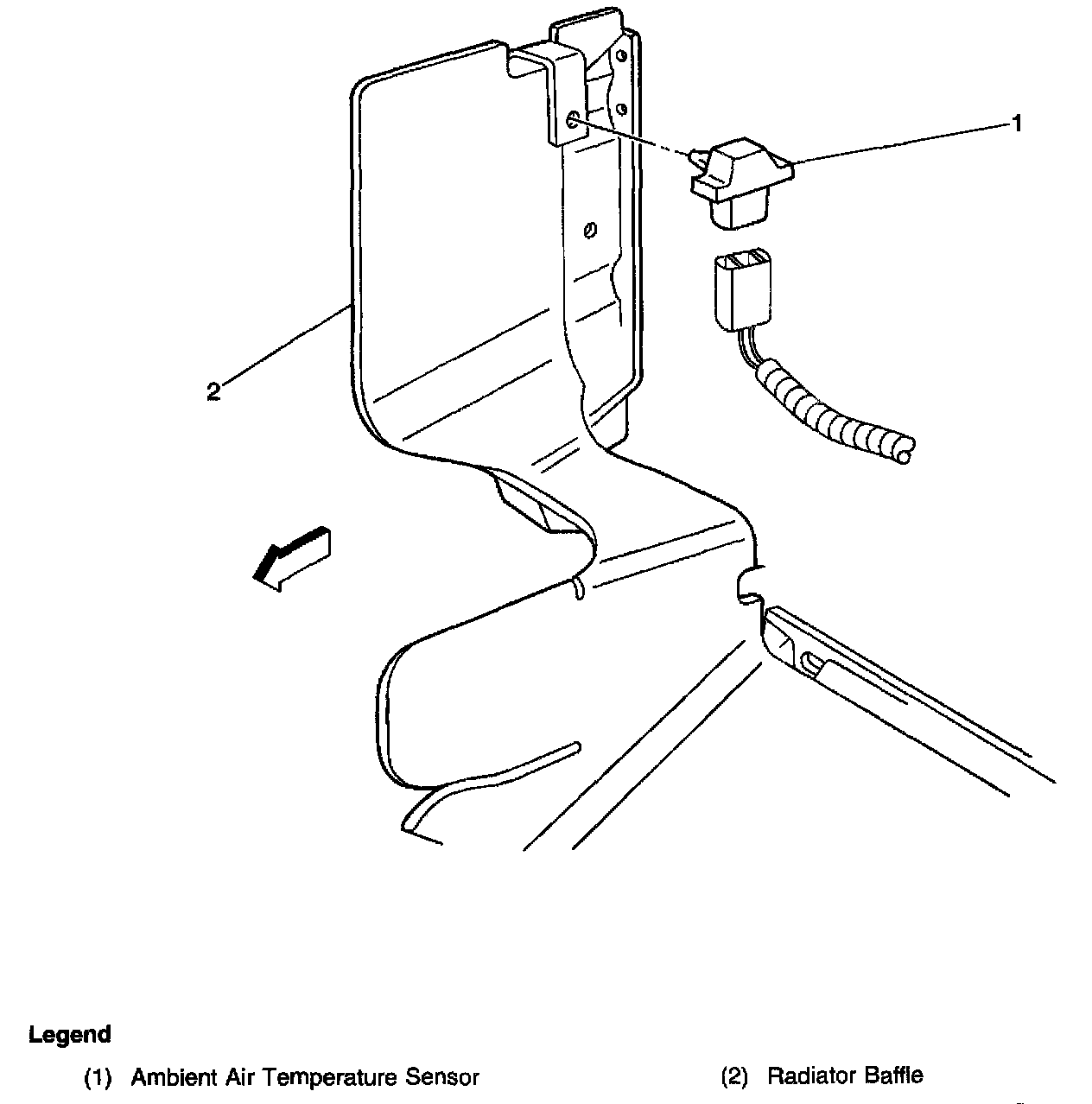

Ambient Air Temperature Sensor

Locations View:




Front center of vehicle, to the left of the hood latch support
