Ambient Temperature Sensor Replacement

REMOVAL PROCEDURE




1. Remove the grille.

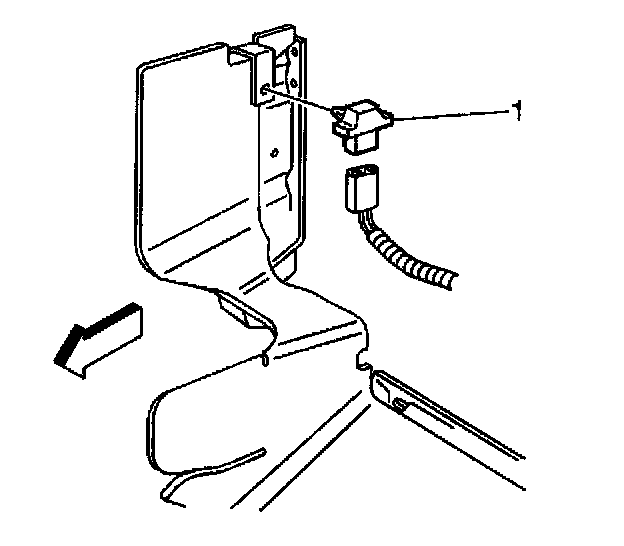

2. Disconnect the electrical connector from the outside air temperature sensor (1).
3. Remove the outside air temperature sensor (1) from the right hand side of the radiator support baffle.

INSTALLATION PROCEDURE




1. Install the outside air temperature sensor (1) to the right hand side of the radiator support baffle.
2. Connect the electrical connector to the outside air temperature sensor (1).
3. Install the grille.
