Home >> Oldsmobile >> 2000 >> Bravada V6-4.3L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> High Pressure Sensor / Switch >> Locations

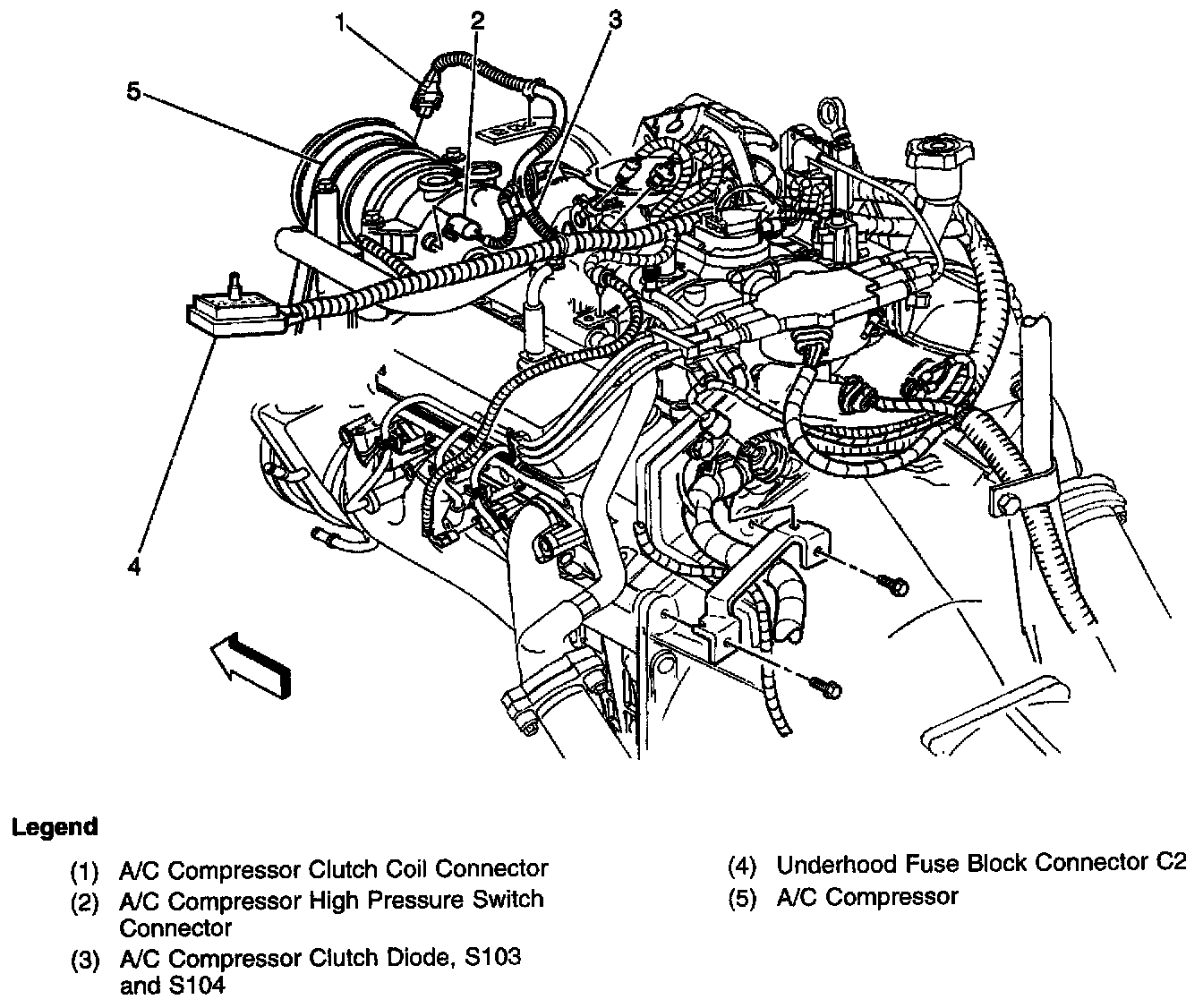

High Pressure Sensor / Switch: Locations

Locations View:
