High Pressure Sensor / Switch: Service and Repair

A/C HIGH PRESSURE CUT-OUT SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging.
2. Remove the air cleaner outlet duct.

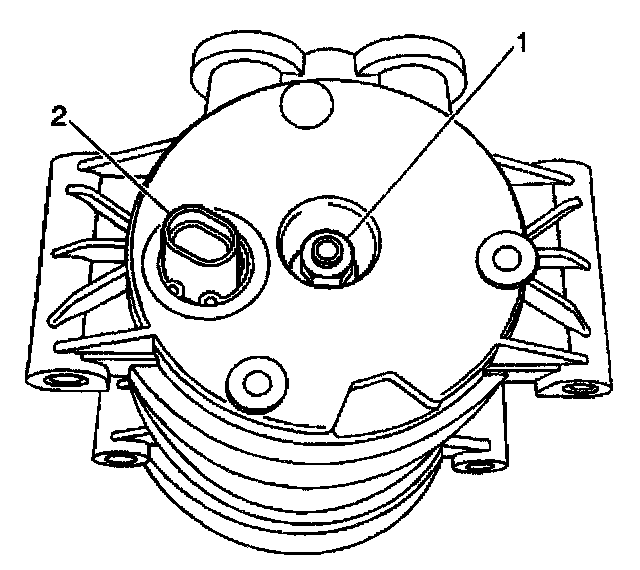

3. Disconnect the A/C High Pressure Switch connector (2).
4. Remove the A/C High Pressure Switch connector retaining ring.
5. Remove the A/C High Pressure Switch from the A/C Compressor.

INSTALLATION PROCEDURE




1. Install the A/C High Pressure Switch to the A/C Compressor.
2. Install the A/C High Pressure Switch connector retaining ring.
3. Connect the A/C High Pressure Switch connector (2).
4. Install the air cleaner outlet duct.
5. Evacuate and recharge the A/C refrigerant system. Refer to Refrigerant Recovery and Recharging.
