Temperature Check

IMPORTANT:
^ Feel the upper radiator hose in order to confirm proper thermostat operation.
^ Feel the heater inlet and outlet hoses in order to confirm that warm coolant flows through the heater.

1. Run the engine for about 20 minutes in order to reach operating temperature.
2. Drive the vehicle at 48 km/h (30 mph).
3. Use an accurate thermometer in order to determine the temperature of the outside air and the temperature of the air discharged at the floor outlets.

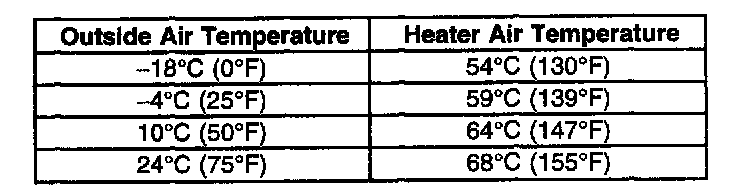

The minimum acceptable heater output temperatures at 4 different outside temperatures are represented in the table.

Minimum acceptable heater output temperatures for outside air temperatures other than those shown may be approximated by using the Fahrenheit scale and rounding off the outside air temperature to the nearest 5 degrees.

When the outside temperature is below 50 degrees, allow an additional 1.8 degrees of heater output temperature for every additional 5 degrees of outside temperature.

When the outside temperature is above 50 degrees, allow an additional 1.6 degrees of heater output temperature for every 5 degrees of outside temperature.
