Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2000
>>
Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Liftgate LH
Liftgate LH

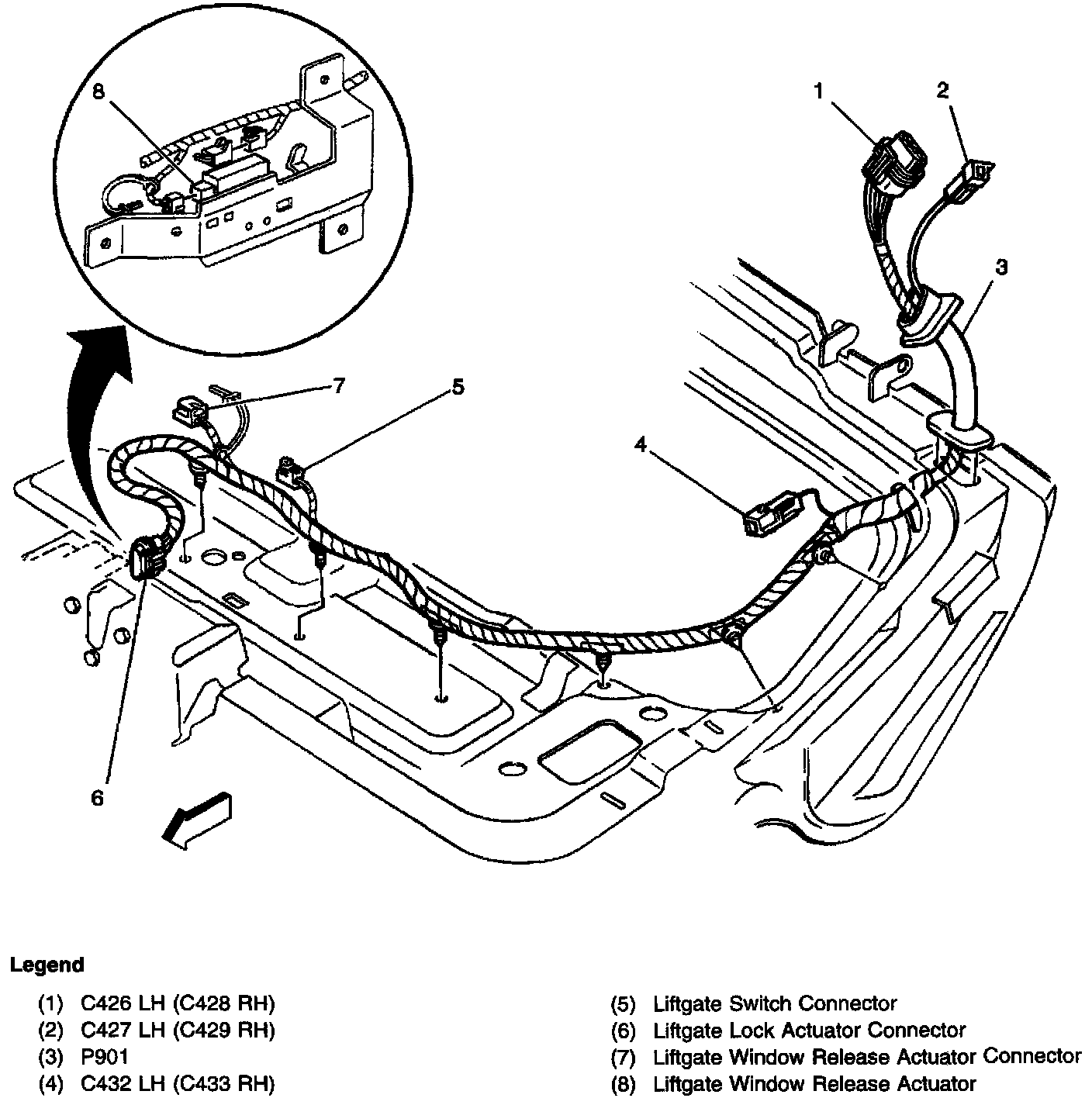

Harness Routing Views (Liftgate LH (Utility)):
