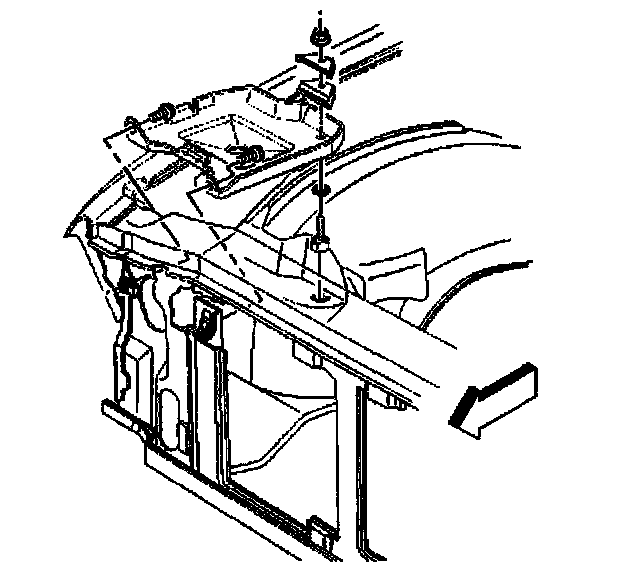

Battery Tray Replacement
REMOVAL PROCEDURE 1.
Remove the battery.
2.
Remove the
battery tray retaining bolts.
3.
Remove the
battery tray.
INSTALLATION PROCEDURE 1.
Install the
battery tray.
NOTE: Refer to Fastener Notice in Service Precautions
2.
Install the
battery tray retaining bolts.
Tighten Tighten the
battery tray retaining bolts to
25 N.m (18 lb ft).
3.
Install the battery.
