Trunk / Liftgate Lock Cylinder: Service and Repair

Rear Compartment Lid Lock Cylinder Replacement

Removal Procedure

1. Open the rear compartment.




2. Remove the rear compartment lid lock cylinder actuator cable from the rear compartment lid lock cylinder.

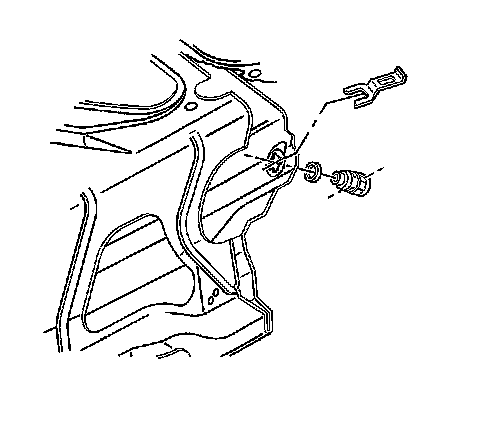

3. Remove the rear compartment lid lock cylinder to rear compartment lid retainer.




4. Remove the rear compartment lid lock cylinder and gasket from the rear compartment lid.

Installation Procedure




1. Install the rear compartment lid lock cylinder and gasket to the rear compartment lid.
2. Install the rear compartment lid retainer to the rear compartment lid lock cylinder.




3. Install the rear compartment lid lock cylinder actuator cable to the rear compartment lid lock cylinder.
4. Close the rear compartment.
