Front Fender Insulator Replacement

Front Fender Insulator Replacement

Removal Procedure




1. Remove the front fender liner. Refer to Front Fender Liner Replacement (Service and Repair).

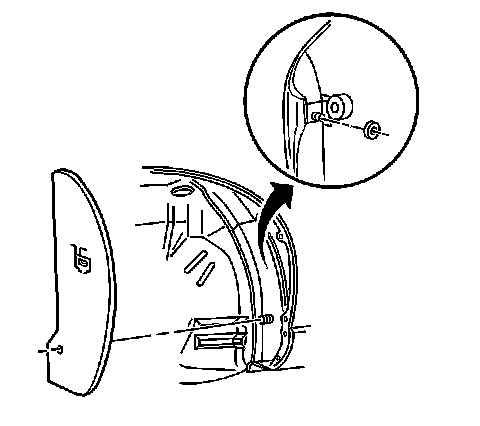

2. Remove the front fender insulator tabs from the mounting studs by pulling off.
3. Remove the front fender insulator from the inner fender.

Installation Procedure




1. Align the front fender insulator to the inner fender.
2. Install the front fender insulator tabs to the mounting studs by pressing on.
3. Align the front fender insulator to the flange of the fender to avoid interference with the front door edge.
4. Install the front fender liner. Refer to Front Fender Liner Replacement (Service and Repair).
