Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2000
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>

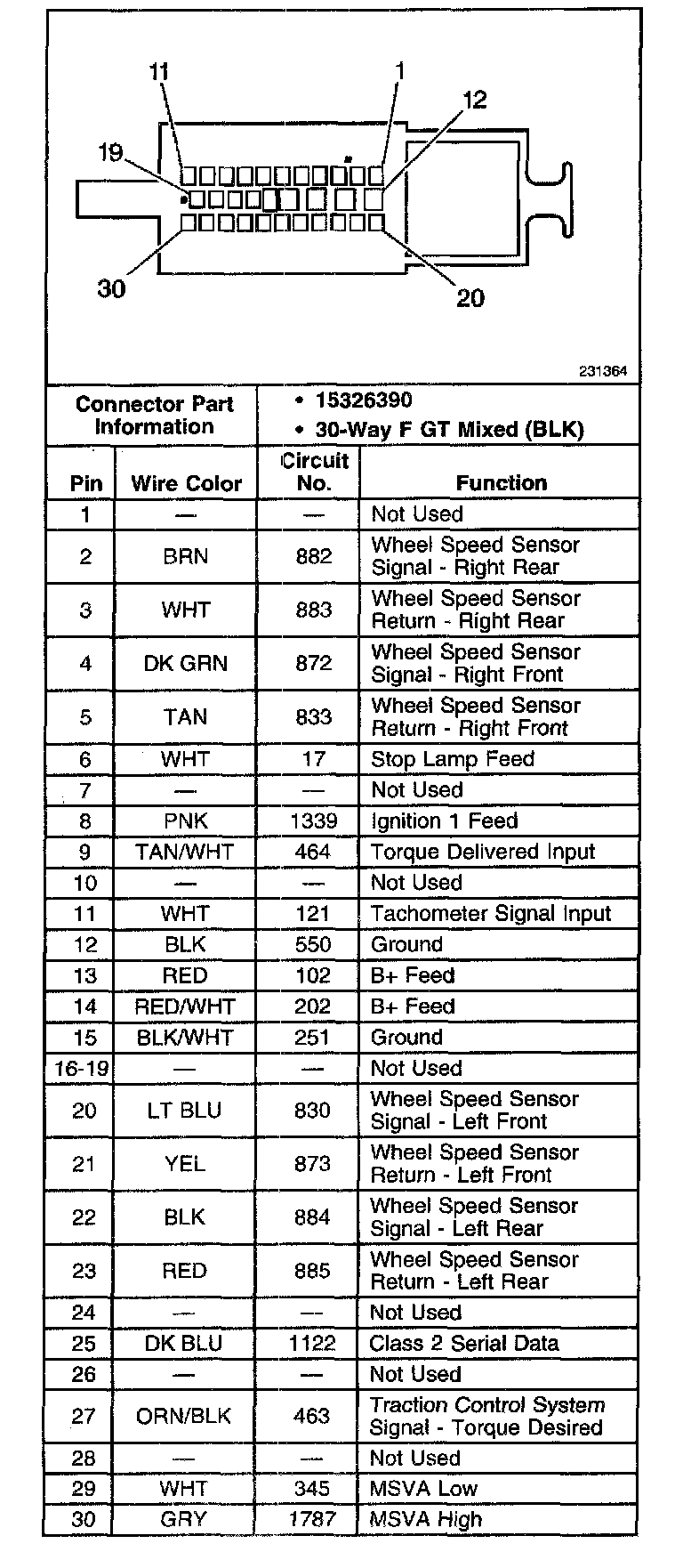

Electronic Brake Control Module (EBCM) (W/O RPO JL4)
Electronic Brake Control Module (EBCM) (W/O RPO JL4)
