Coolant Level Indicator Module
Coolant Level Indicator Module

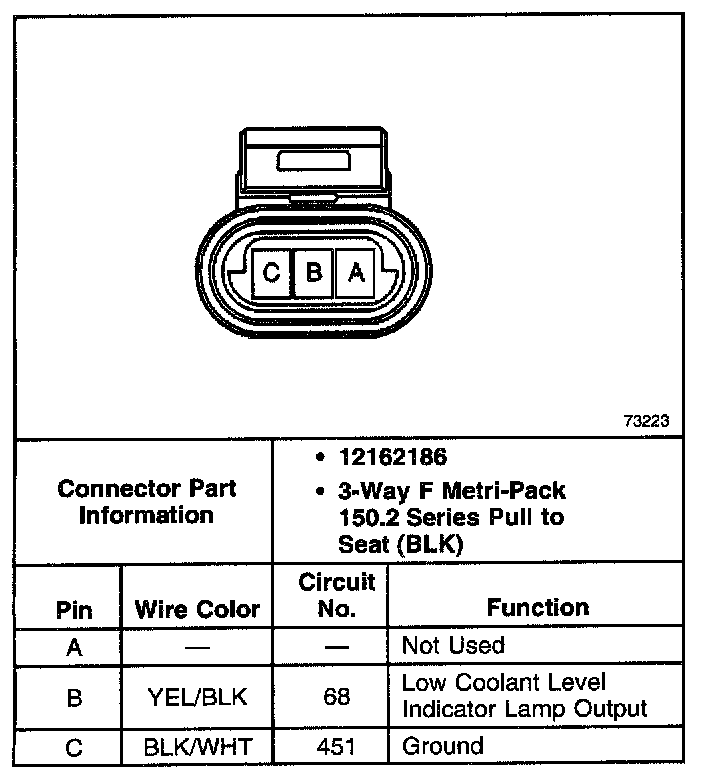

Engine Coolant Level Indicator Module:

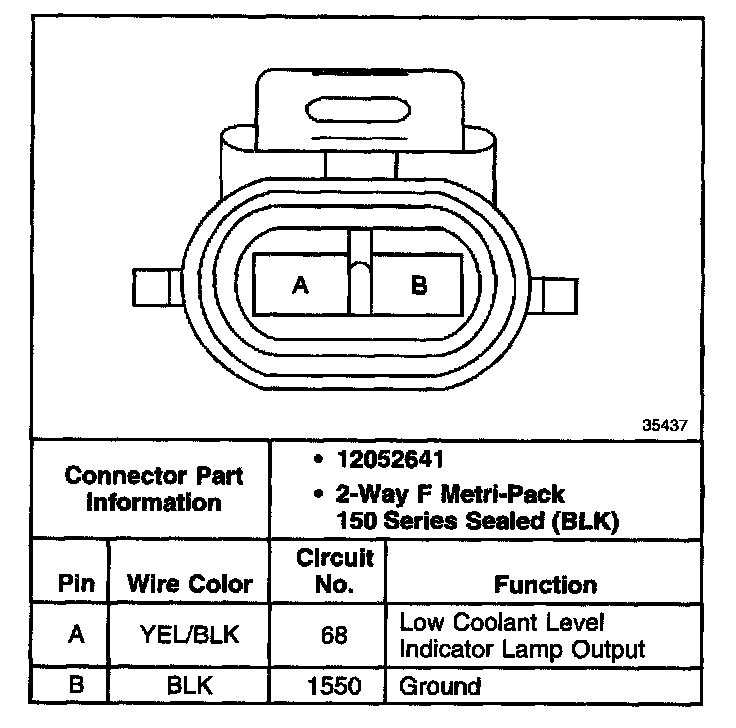

Engine Coolant Level Indicator Module:
