Instrument Cluster Schematics
>>
Windshield Washer Solvent Level Switch Input, and Serial Data
Windshield Washer Solvent Level Switch Input, and Serial Data

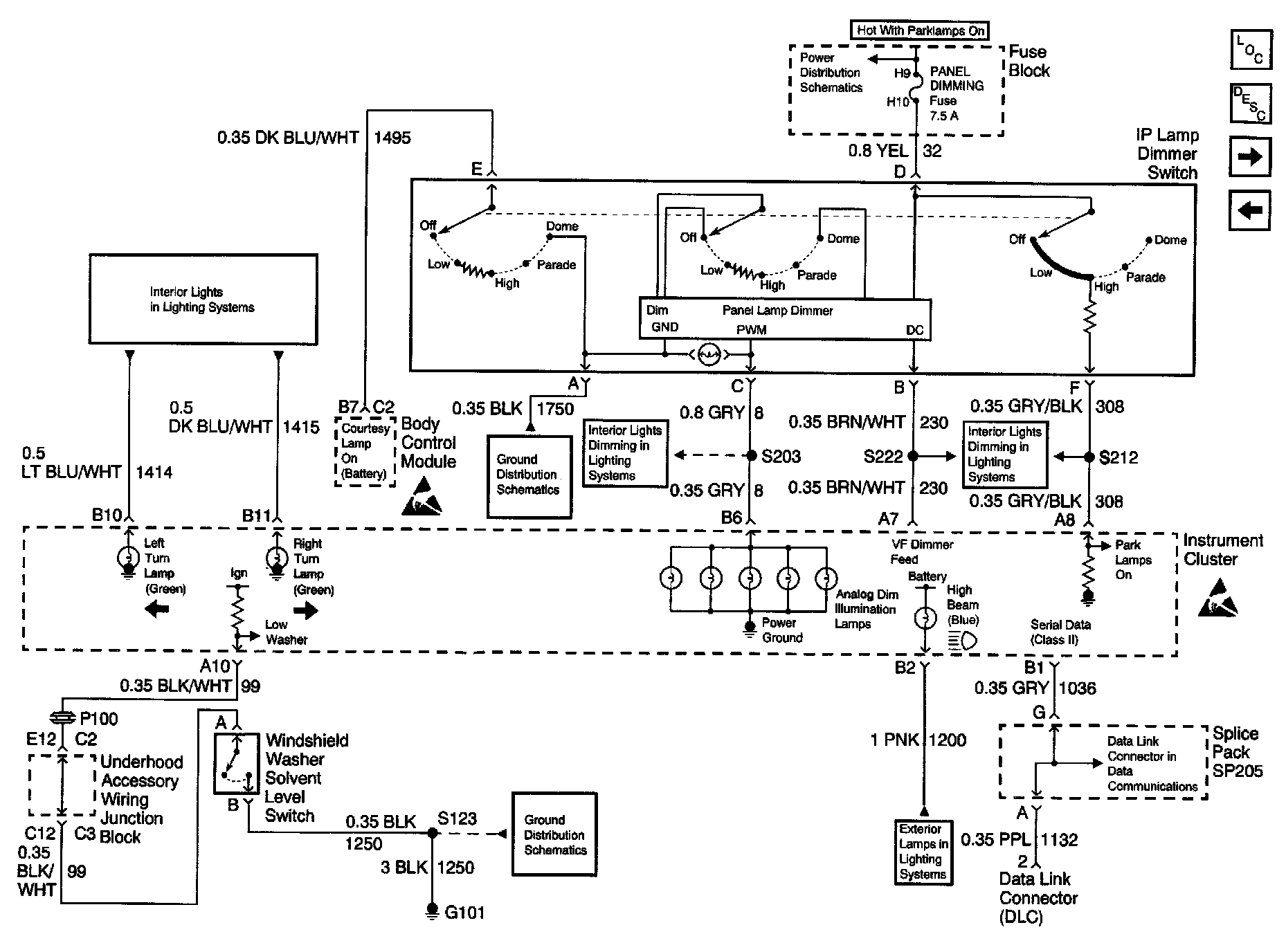

Instrument Cluster Schematics: Interior Lights Dimming Inputs, Windshield Washer Solvent Level Switch Input, And Serial Data:
