PCM Engine Oil Level and Pressure Inputs
PCM Engine Oil Level and Pressure Inputs

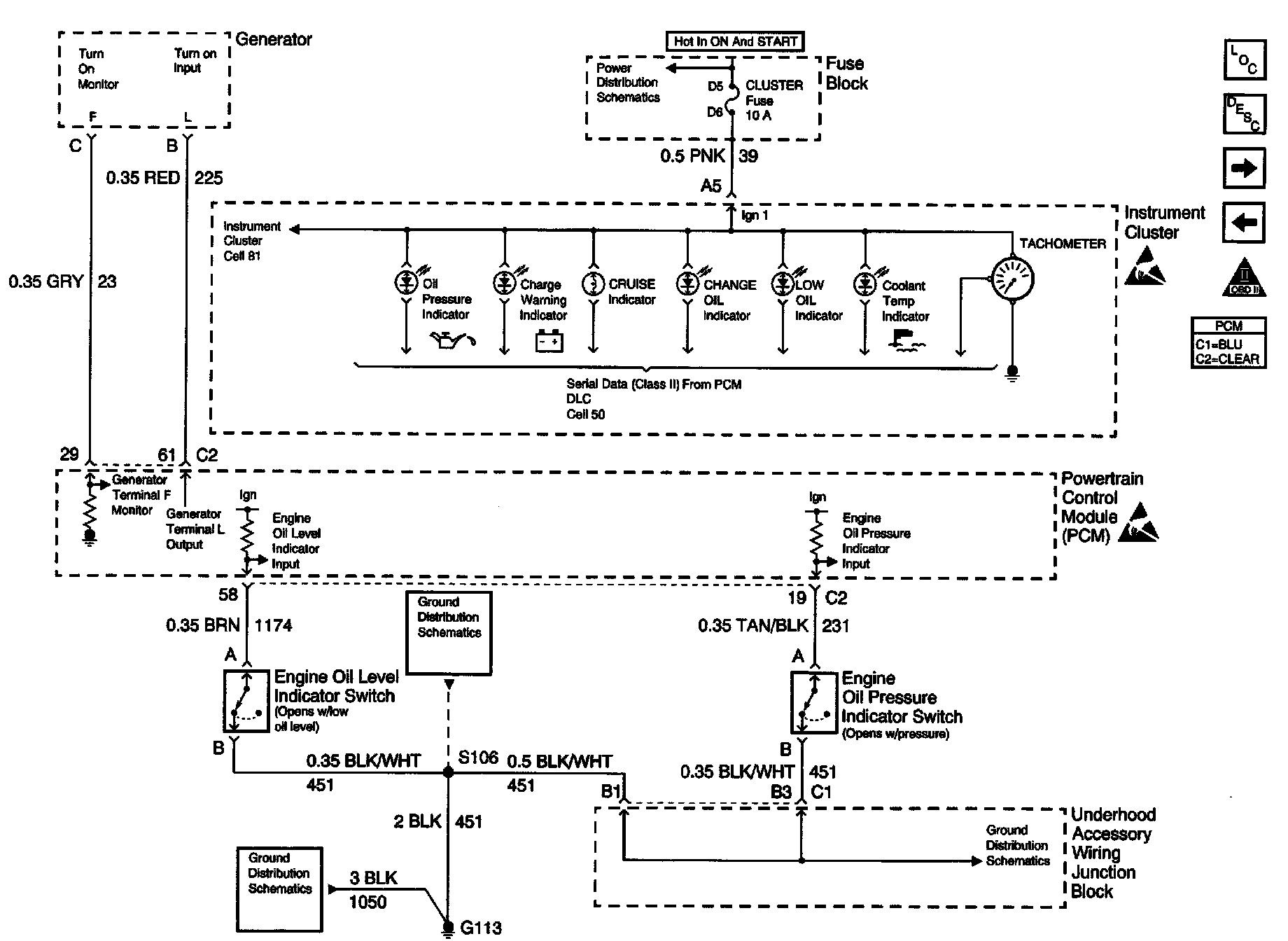

Engine Controls Schematics: PCM Engine Oil Level and Pressure Inputs:
