Engine
>>
Disassembled Views
Disassembled Views

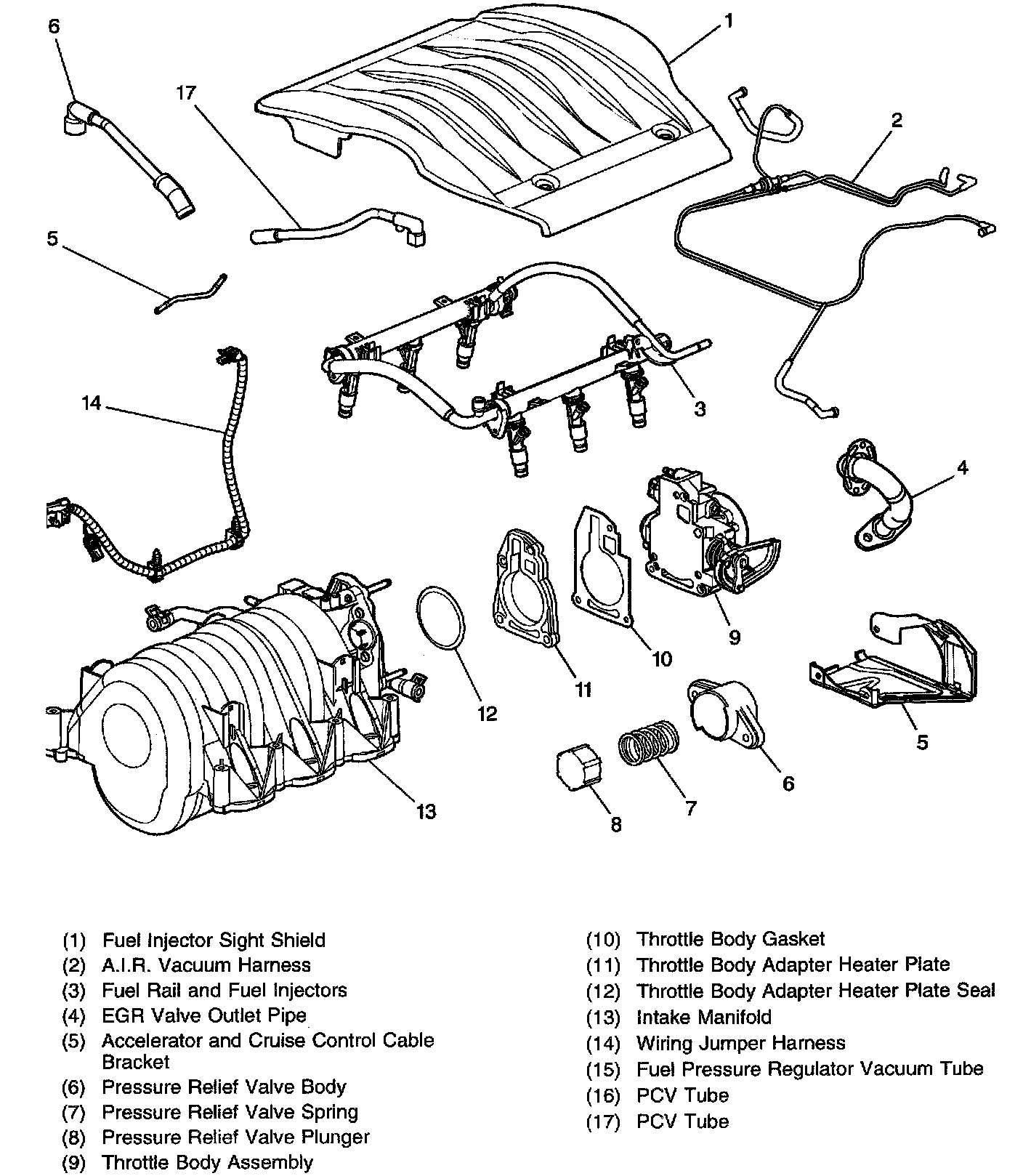

Intake Manifold
and Fuel Components

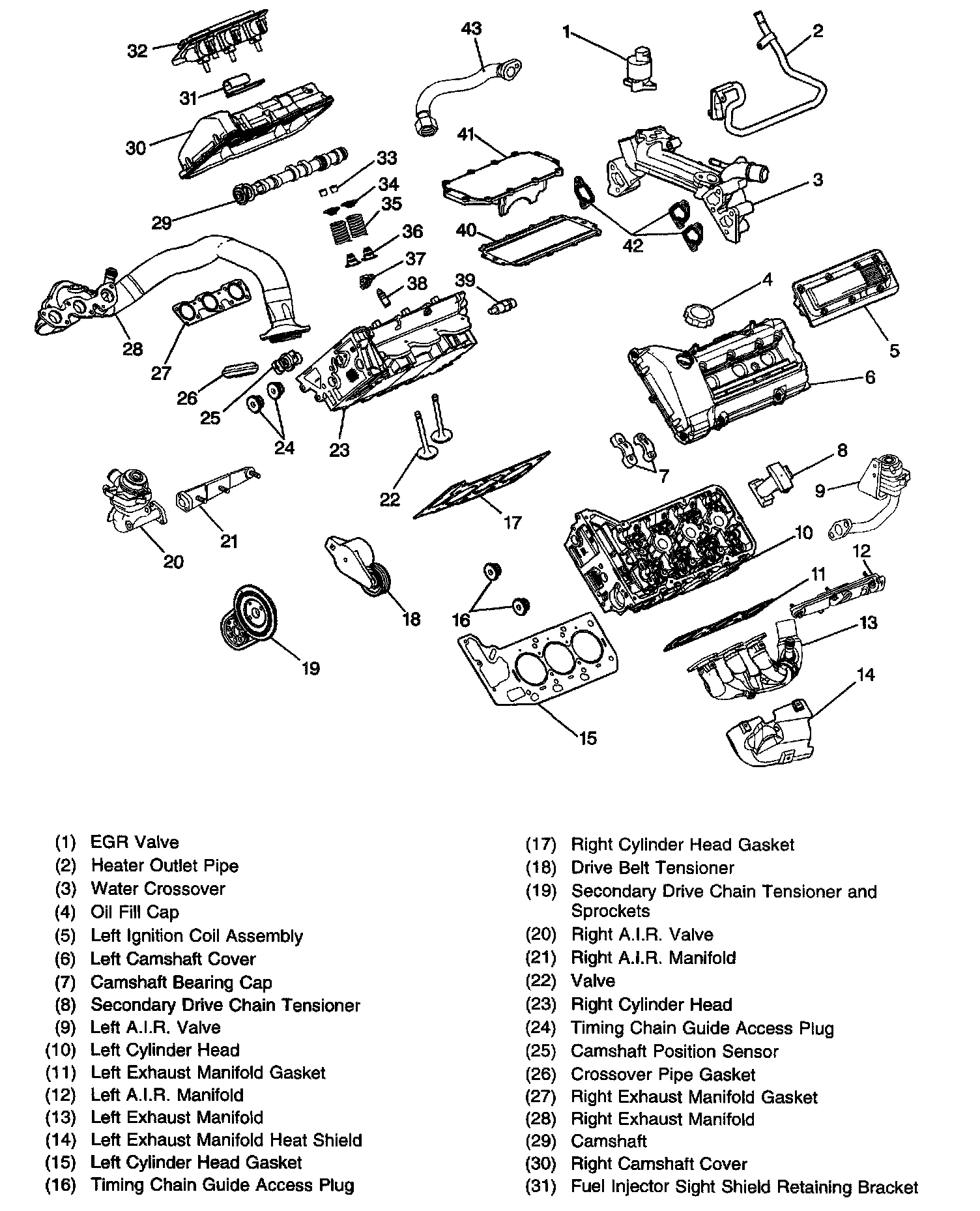

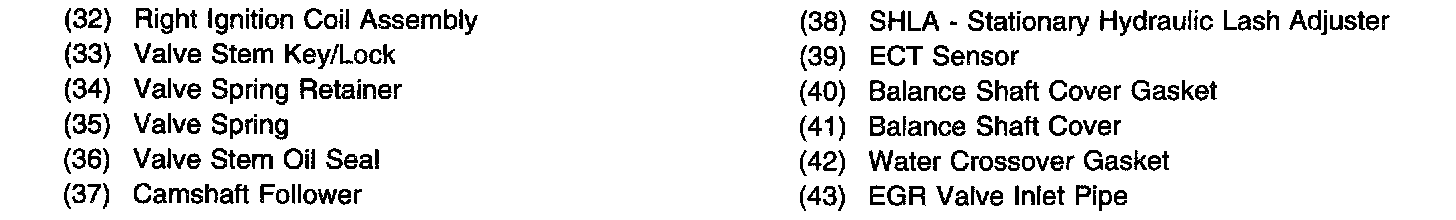

Upper Engine Components

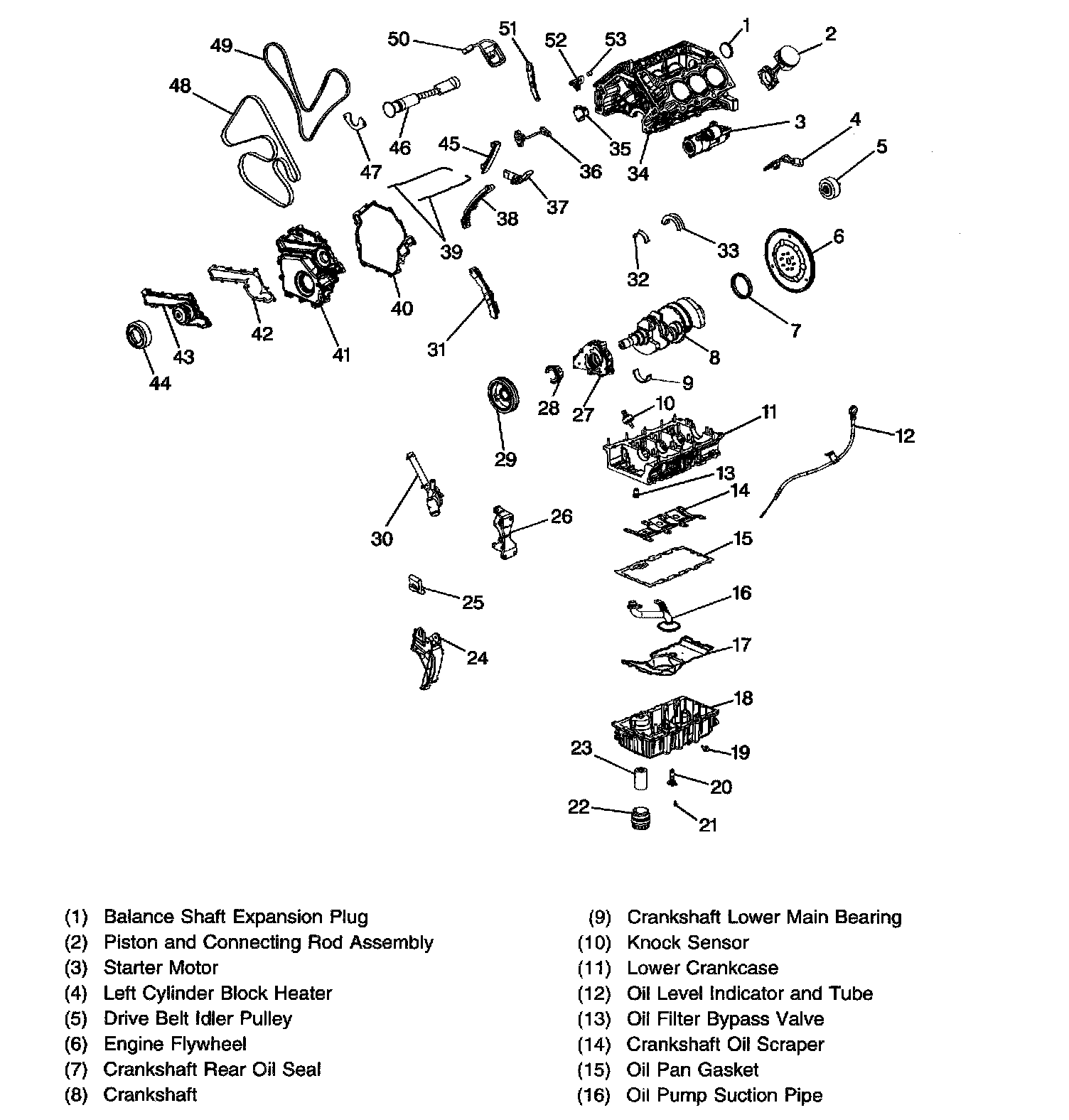

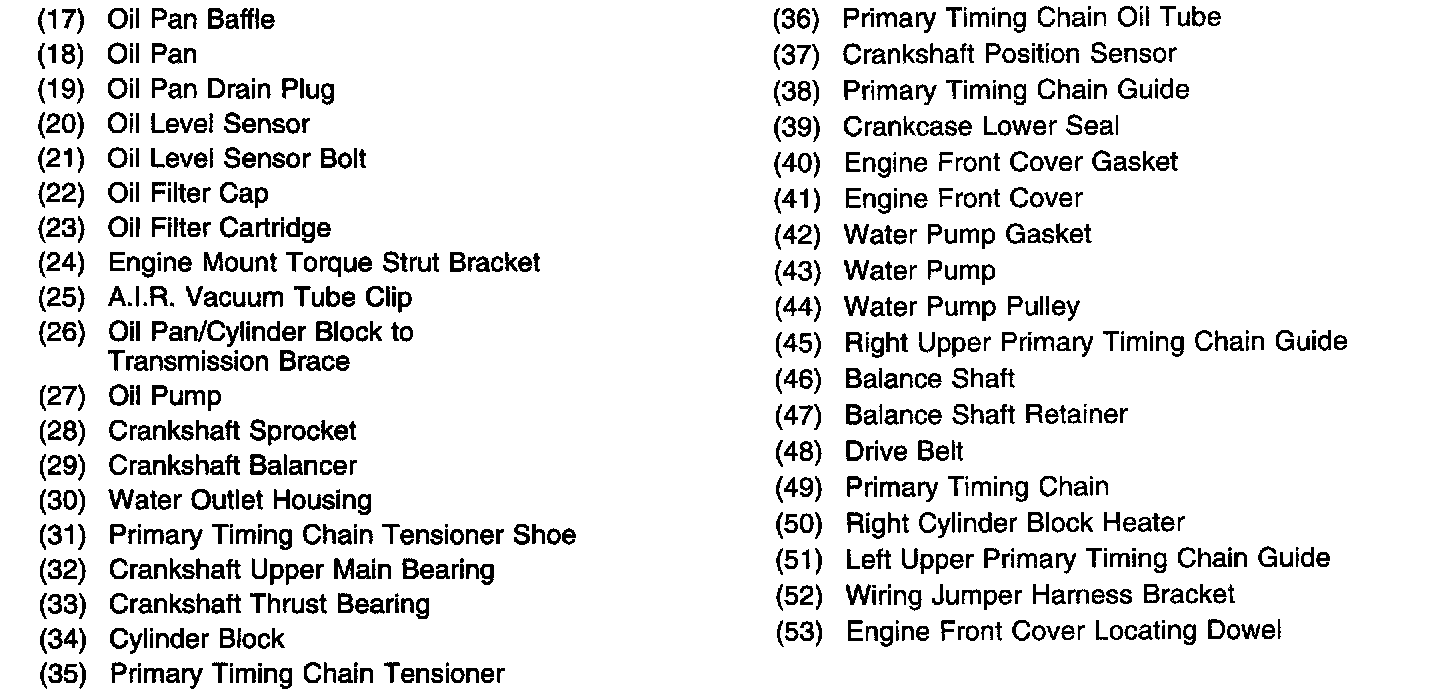

Lower Engine Components

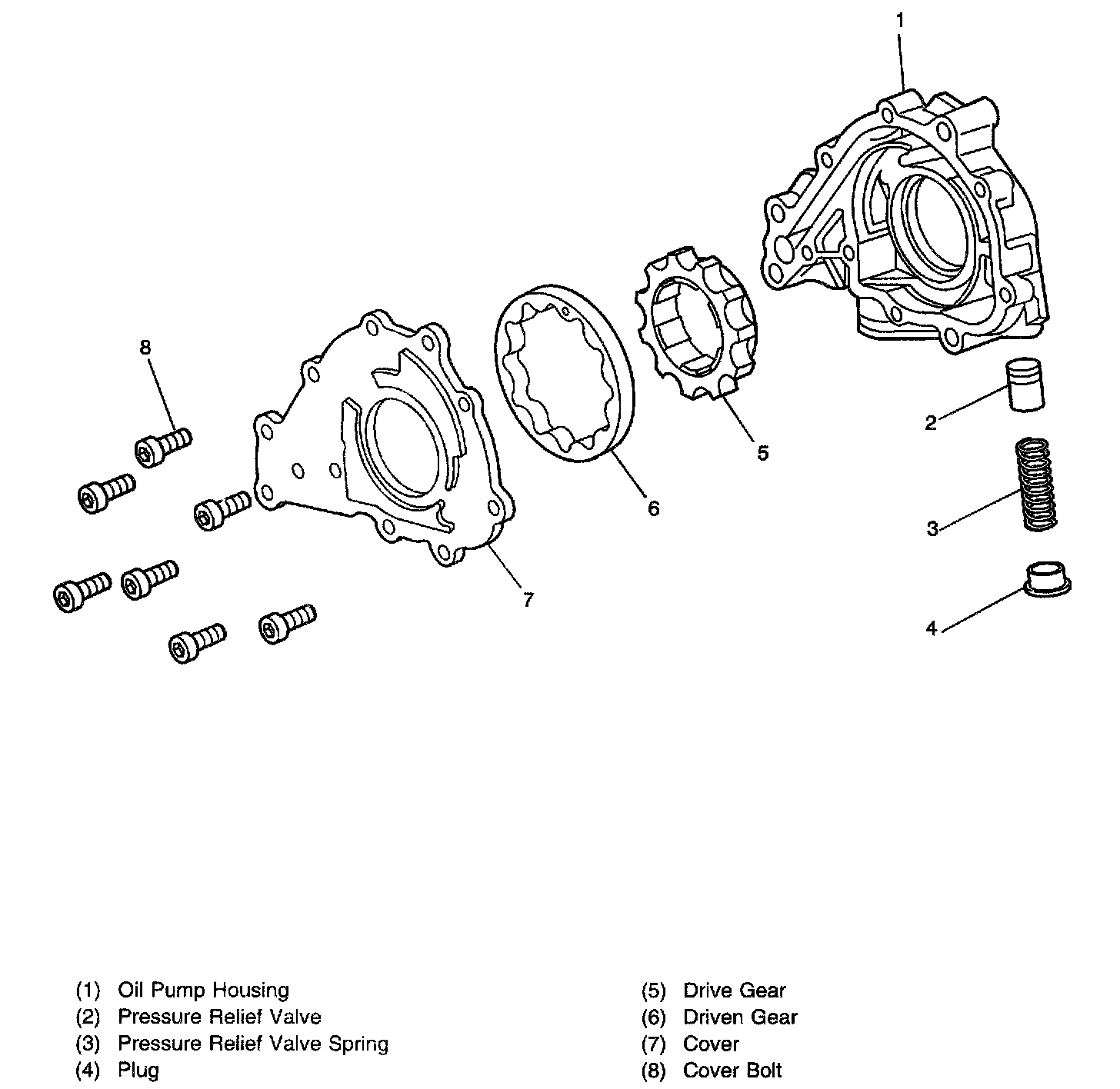

Oil Pump Assembly
