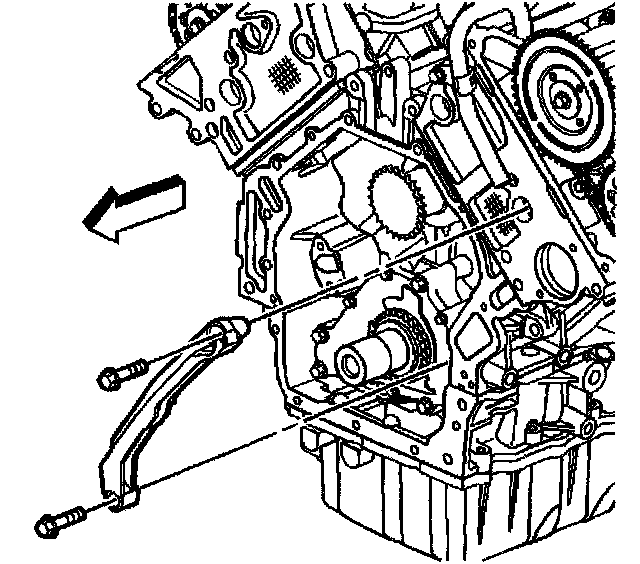

90. Primary Camshaft Drive Chain Guide Installation - Lower

1. Install the lower primary timing chain guide.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the lower primary timing chain guide bolts.
Tighten the lower primary timing chain guide bolts to 30 Nm (22 ft. lbs.).
