97. Ignition Coil Module Installation - Left

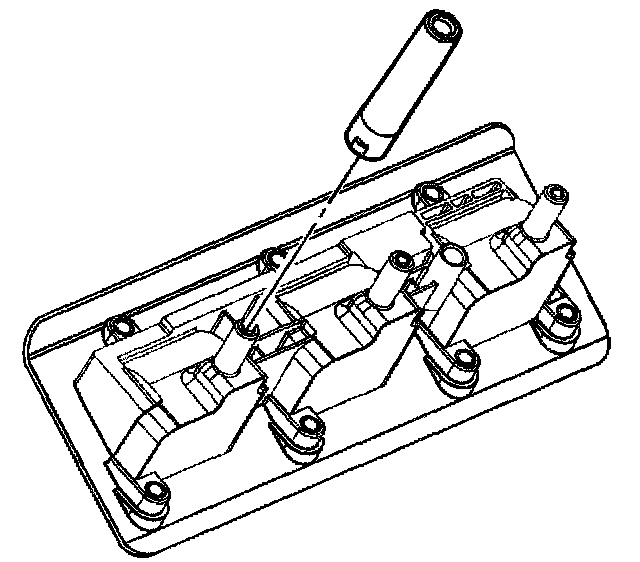

1. Press the spark plug boots onto the ignition coil assembly.

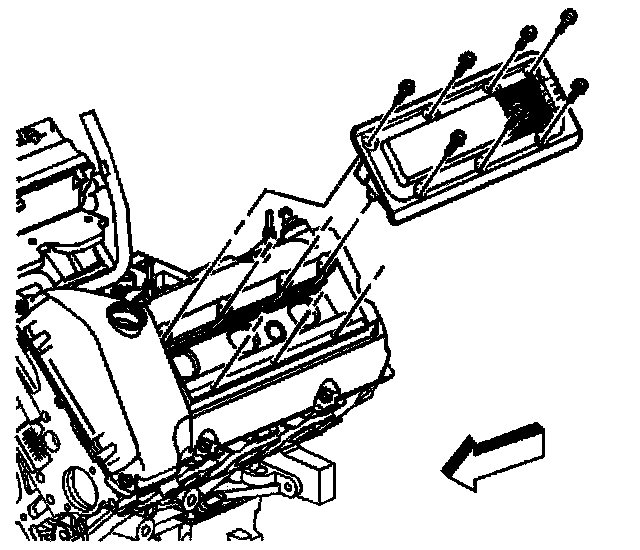

2. Lower the ignition coil assembly into the camshaft cover valley. DO NOT damage the ignition coil assembly's perimeter seal.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the ignition coil assembly bolts.
Tighten the ignition coil assembly bolts to 9 Nm (80 inch lbs.).
