Audible Warning Schematics
>>
Power/Grounds, Serial Data
Power/Grounds, Serial Data

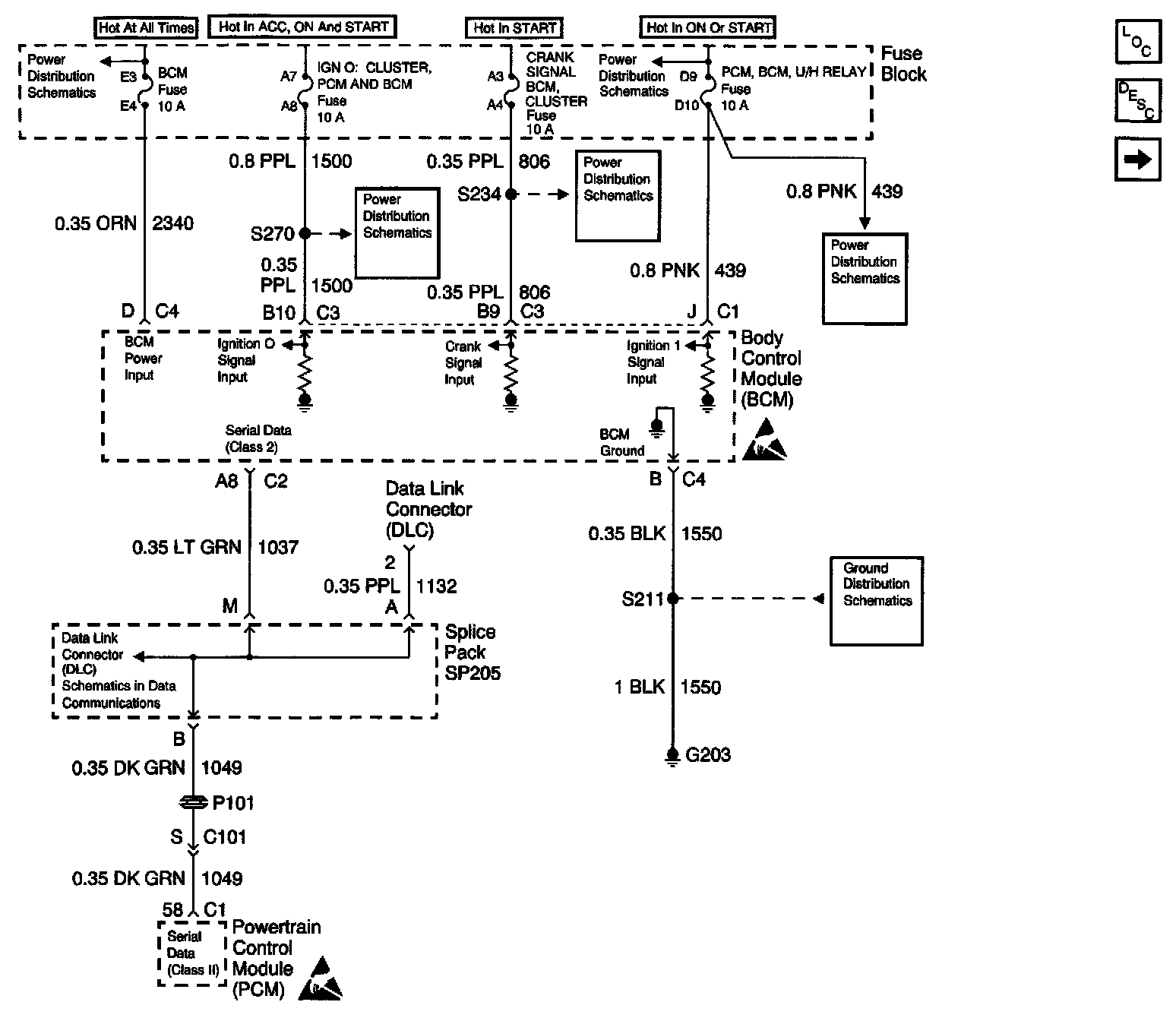

Audible Warnings Schematics: Power/Grounds, Serial Data:
