Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connectors By Number
>>
C200 - C299
>>

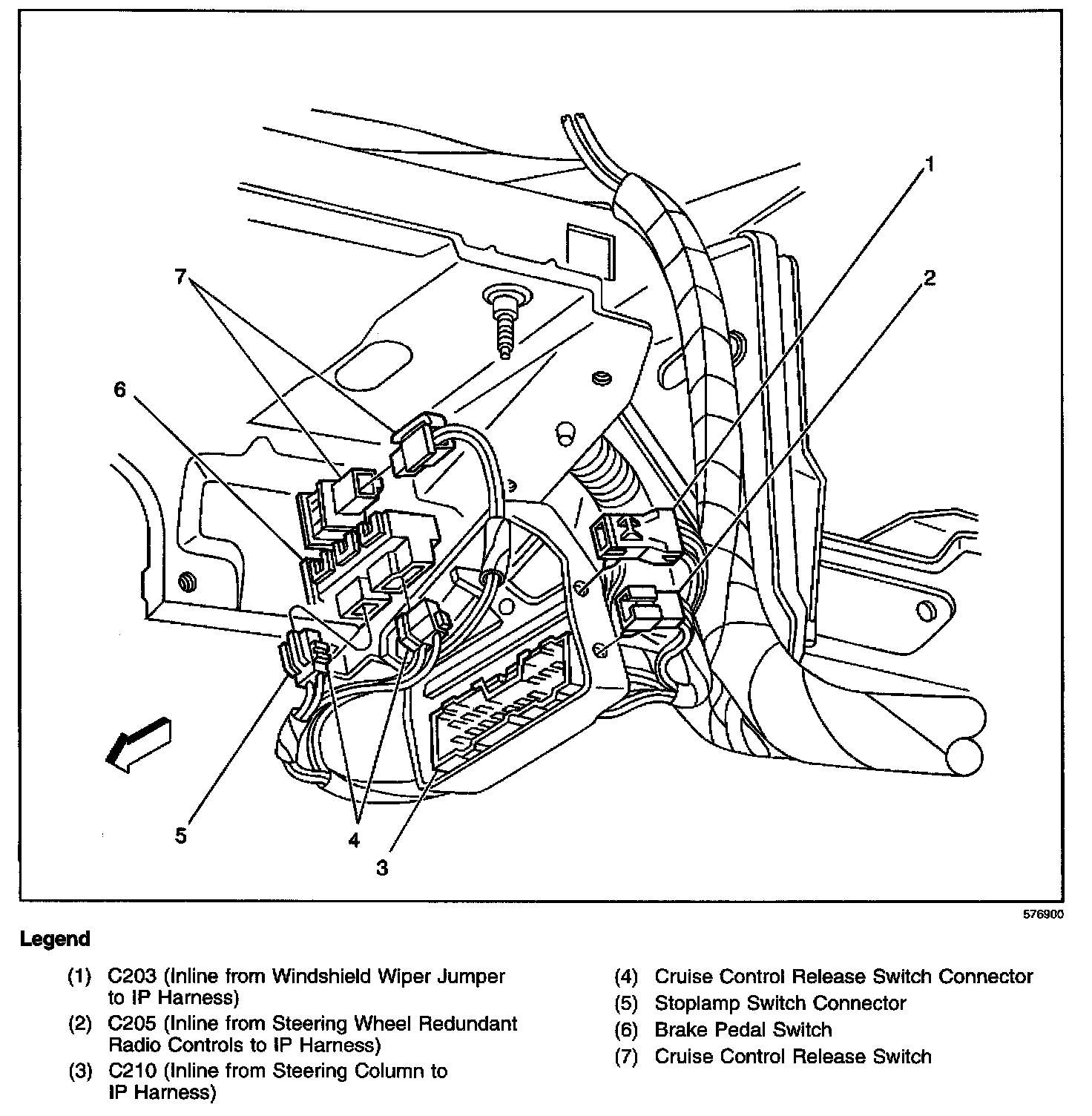

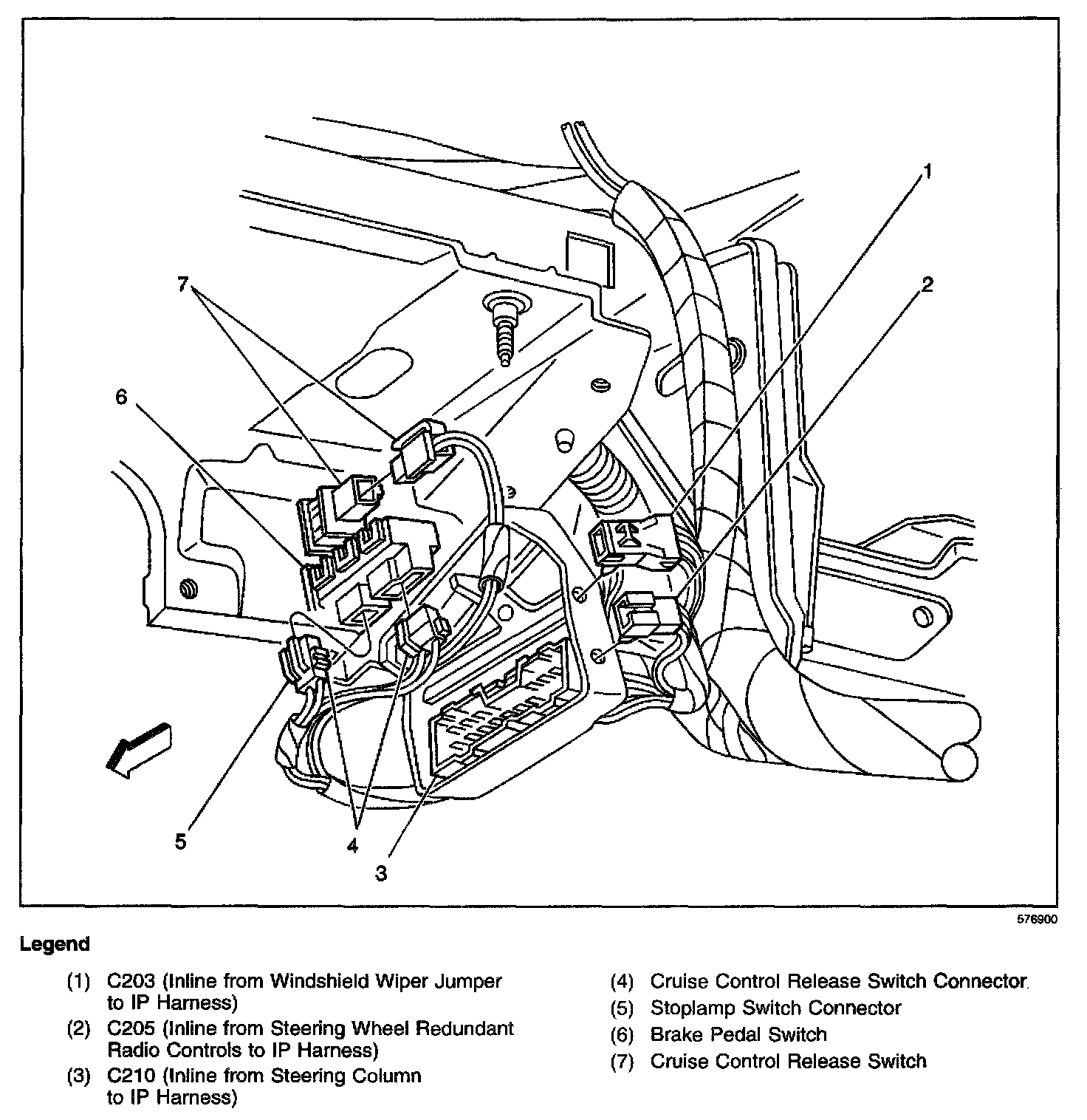

C203 (Inline from Windshield Wiper Jumper to IP Harness)
C203 (Inline from Windshield Wiper Jumper to IP Harness)
Locations View:
Locations View:
