Door Locks and Power Mirrors Fuses
Door Locks and Power Mirrors Fuses

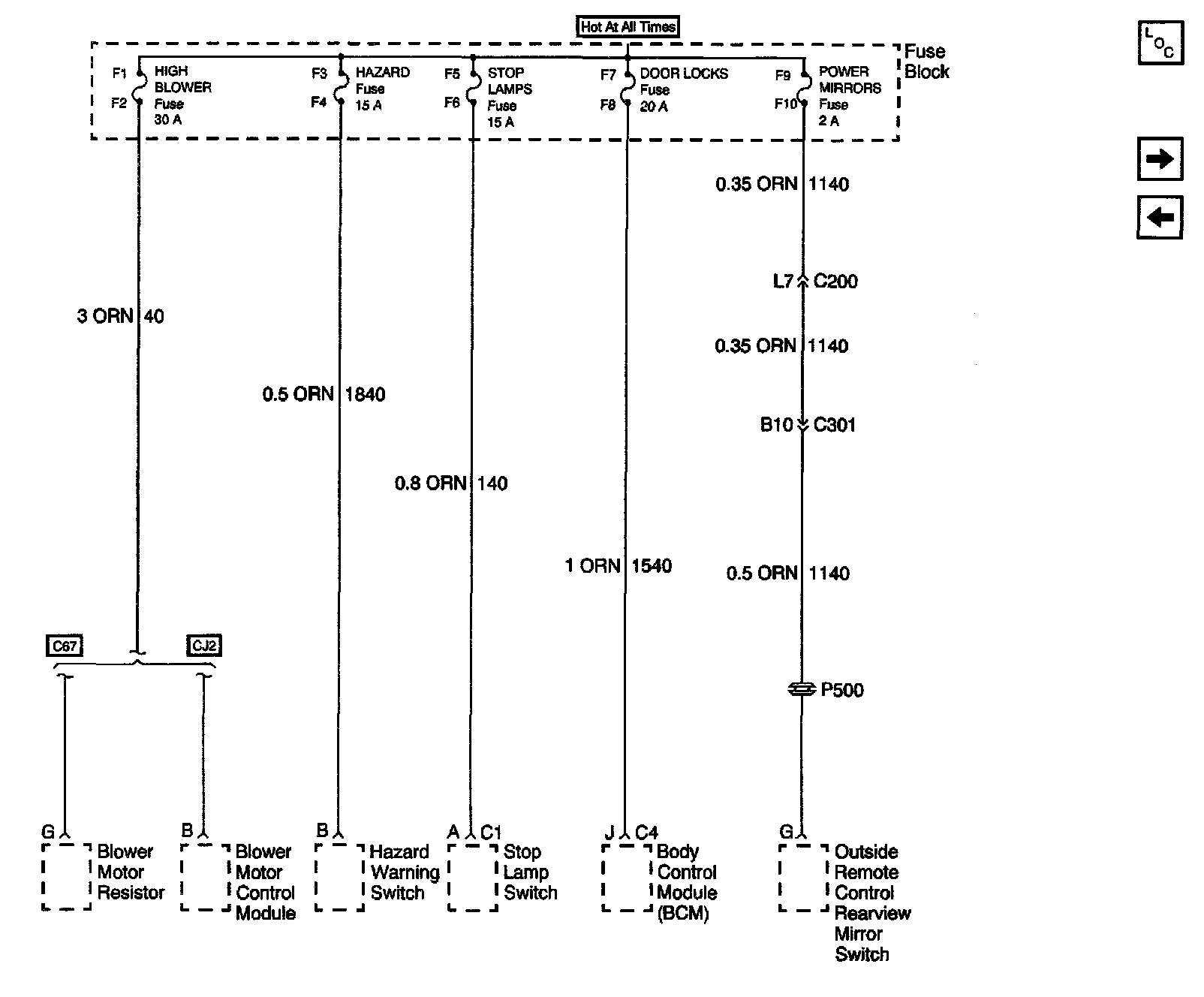

Power Distribution Schematics: High Blower, Hazard, Stop Lamps, Door Locks And Power Mirrors Fuses:
