WIPER

Power Distribution Schematics: Ignition 1 MaxiFuse And Ignition Switch:

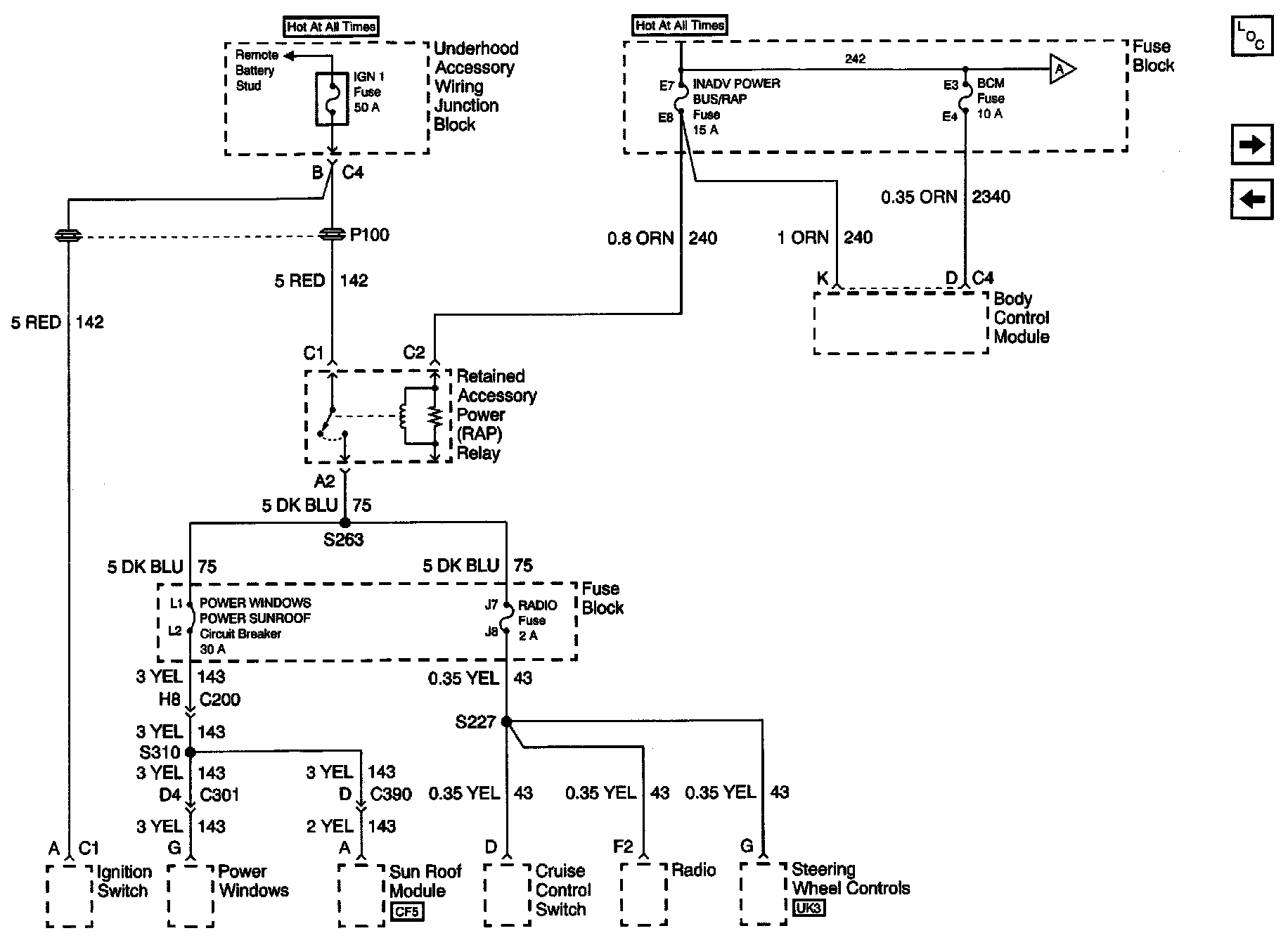

Power Distribution Schematics: INADV POWER BUS/RAP And BCM Fuses:
