Park Lamp Relay

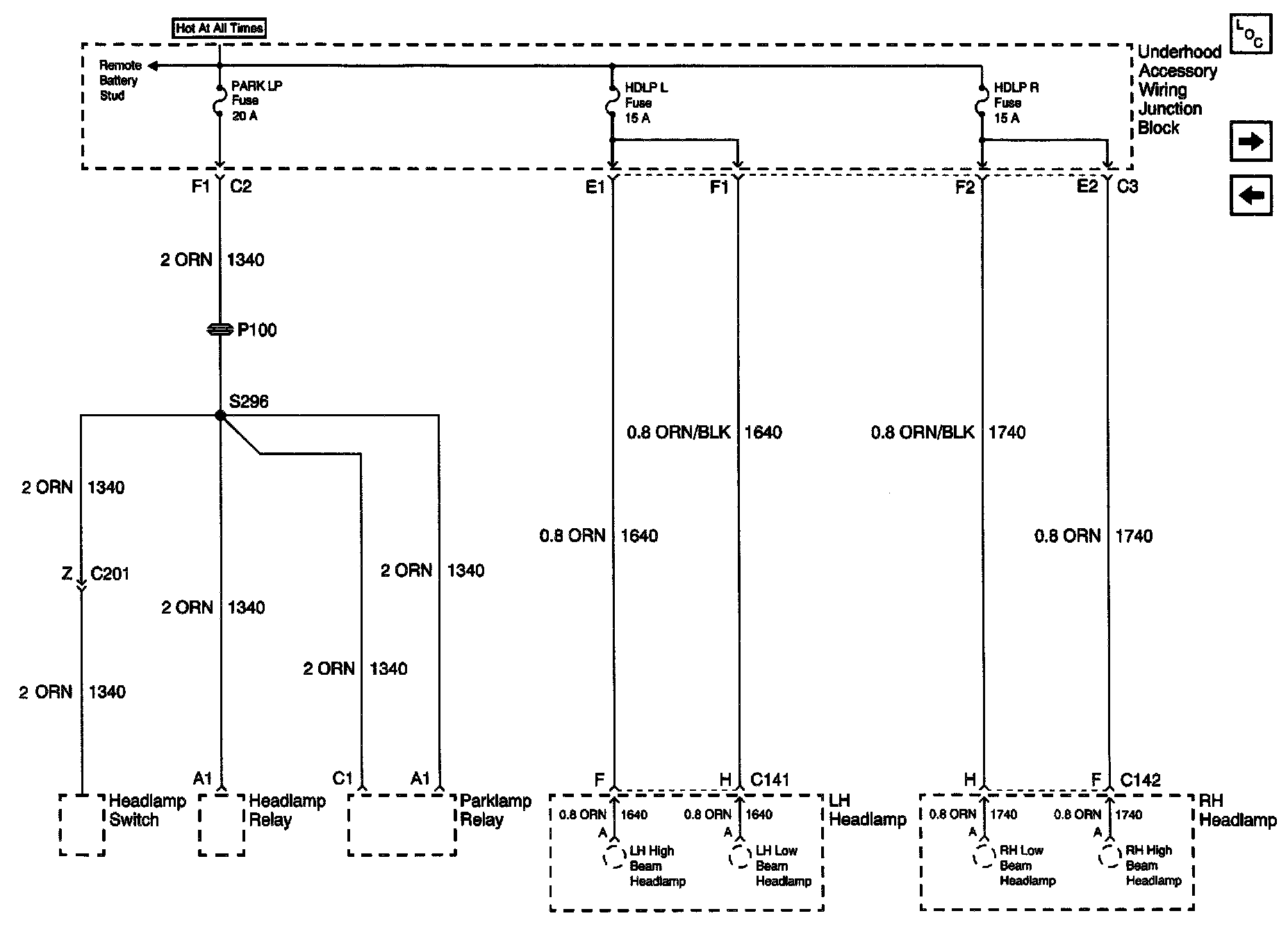

Power Distribution Schematics: Parklamp And Headlamp Fuses:

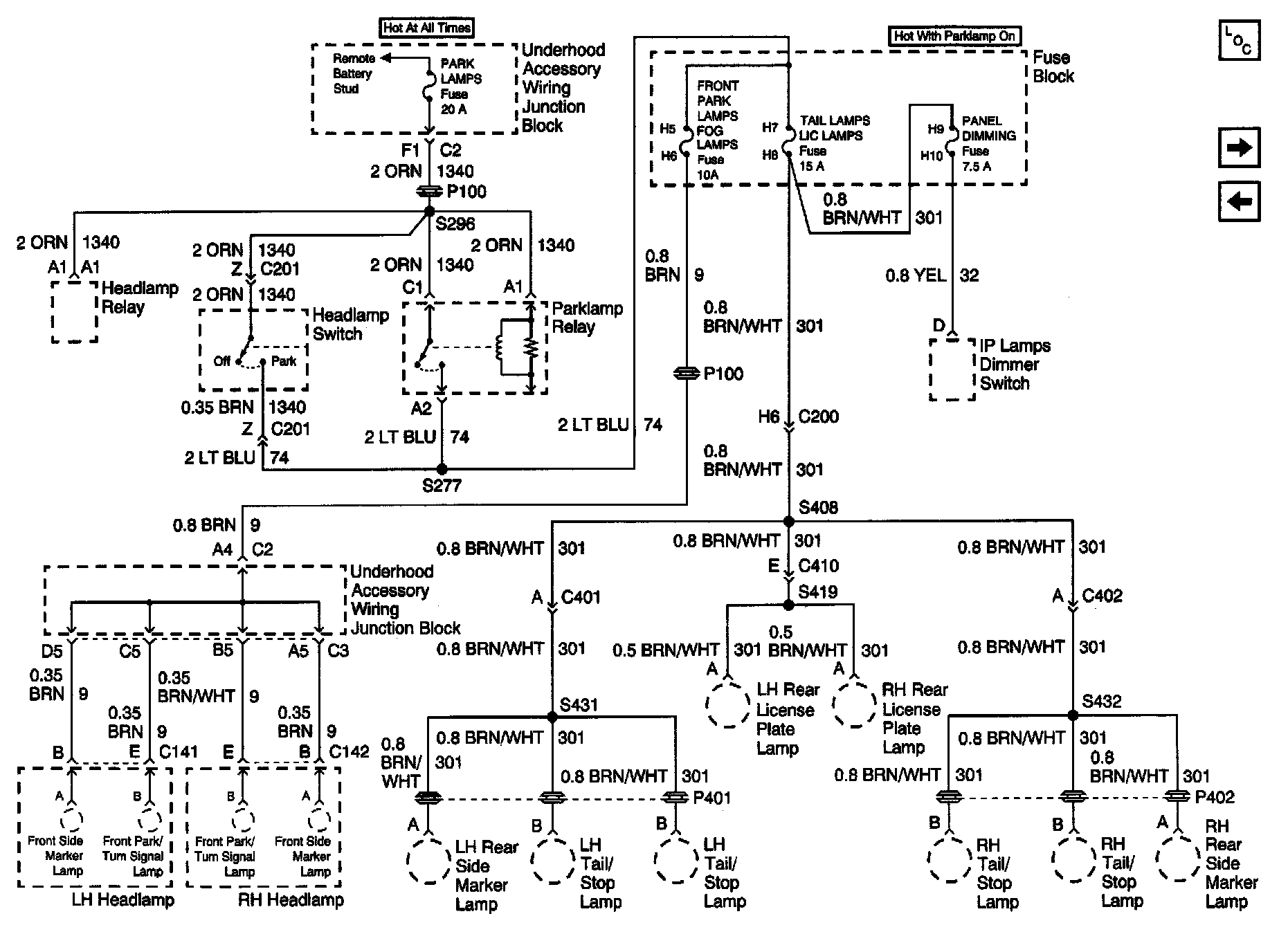

Power Distribution Schematics: Park Lamp Relay:
