Courtesy Lamps, Ignition Switch Illumination
Courtesy Lamps, Ignition Switch Illumination

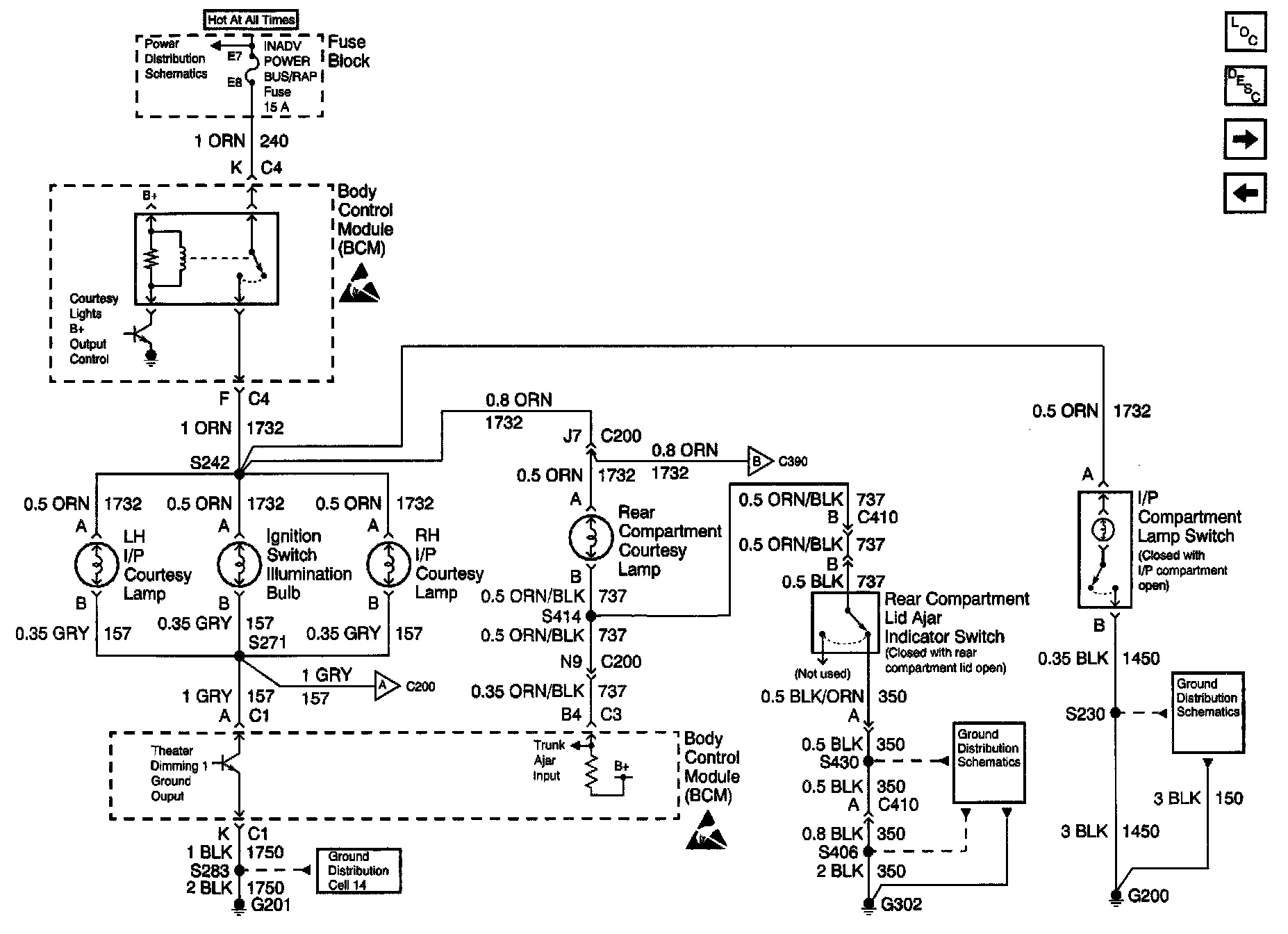

Body Control Module Schematics: Courtesy Lamps, Ignition Switch Illumination Bulb, Rear Compartment Lid Ajar Indicator Switch And I/P Compartment Lamp Switch:
