RAP Relay, Park Lamp Relay, Headlamp Relay
RAP Relay, Park Lamp Relay, Headlamp Relay

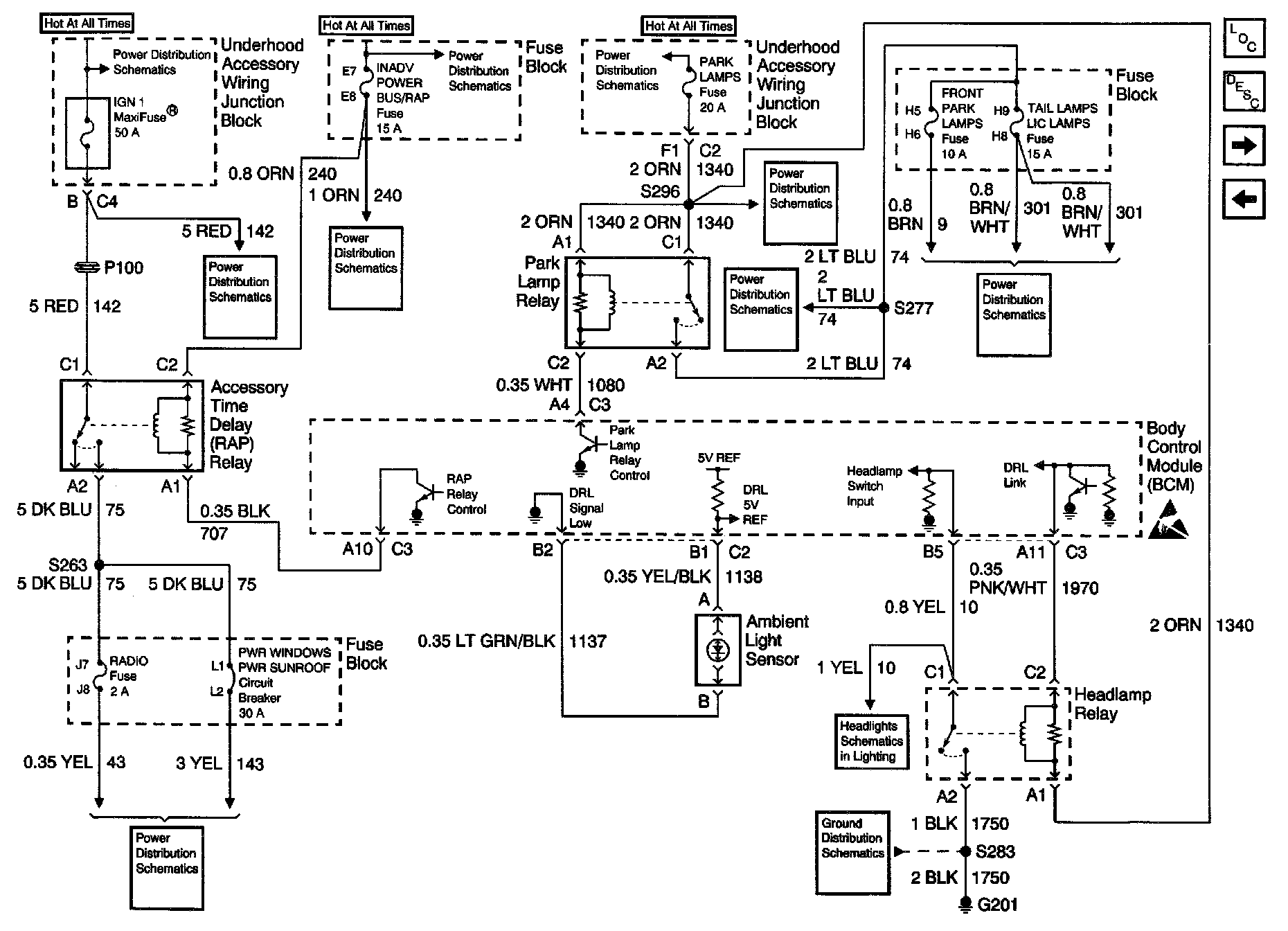

Body Control Module Schematics: RAP Relay, Park Lamp Relay, Headlamp Relay And Ambient Light Sensor:
