Ignition Control Module
>>
Diagrams
>>
Ignition Control Module - Rear Bank
Ignition Control Module - Rear Bank

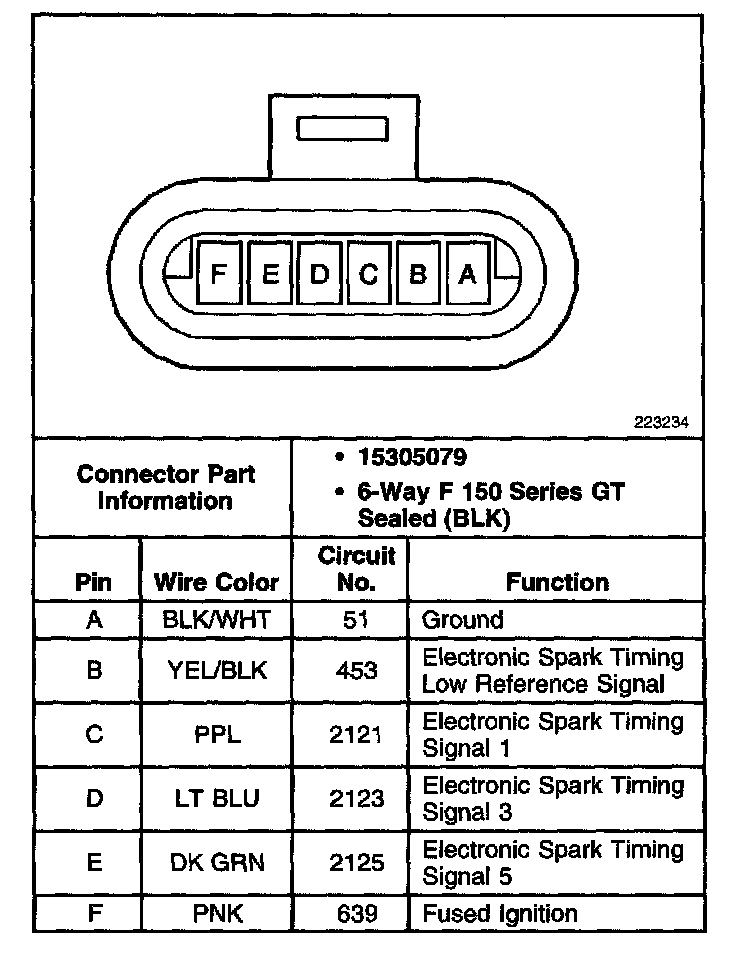

Ignition Control Module (ICM), Rear:

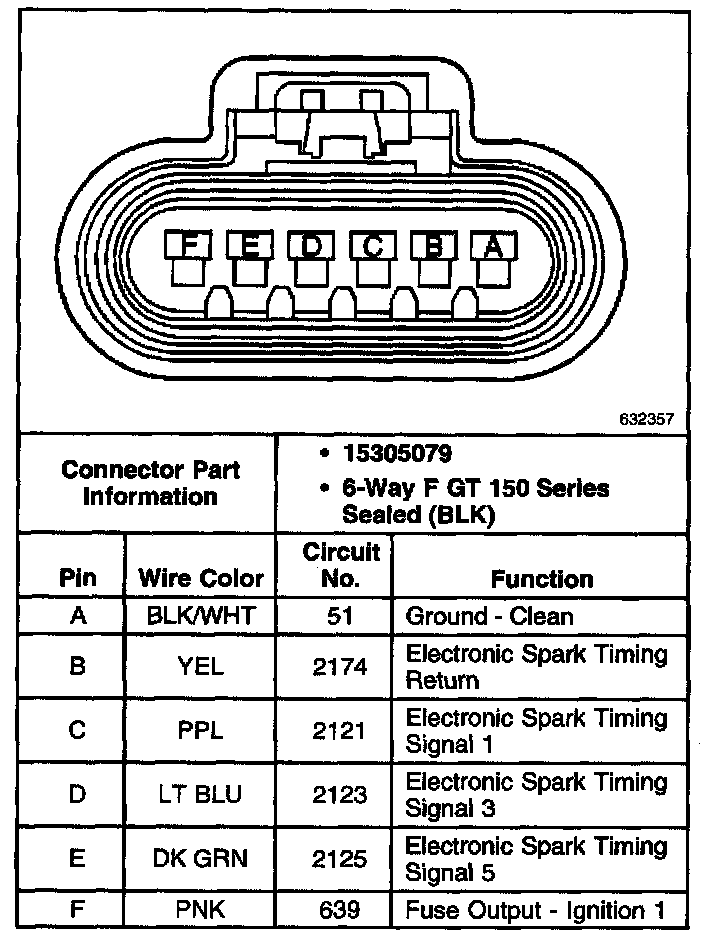

Rear Bank Ignition Control (IC) Module:
