Door Lock Switch Inputs
Door Lock Switch Inputs

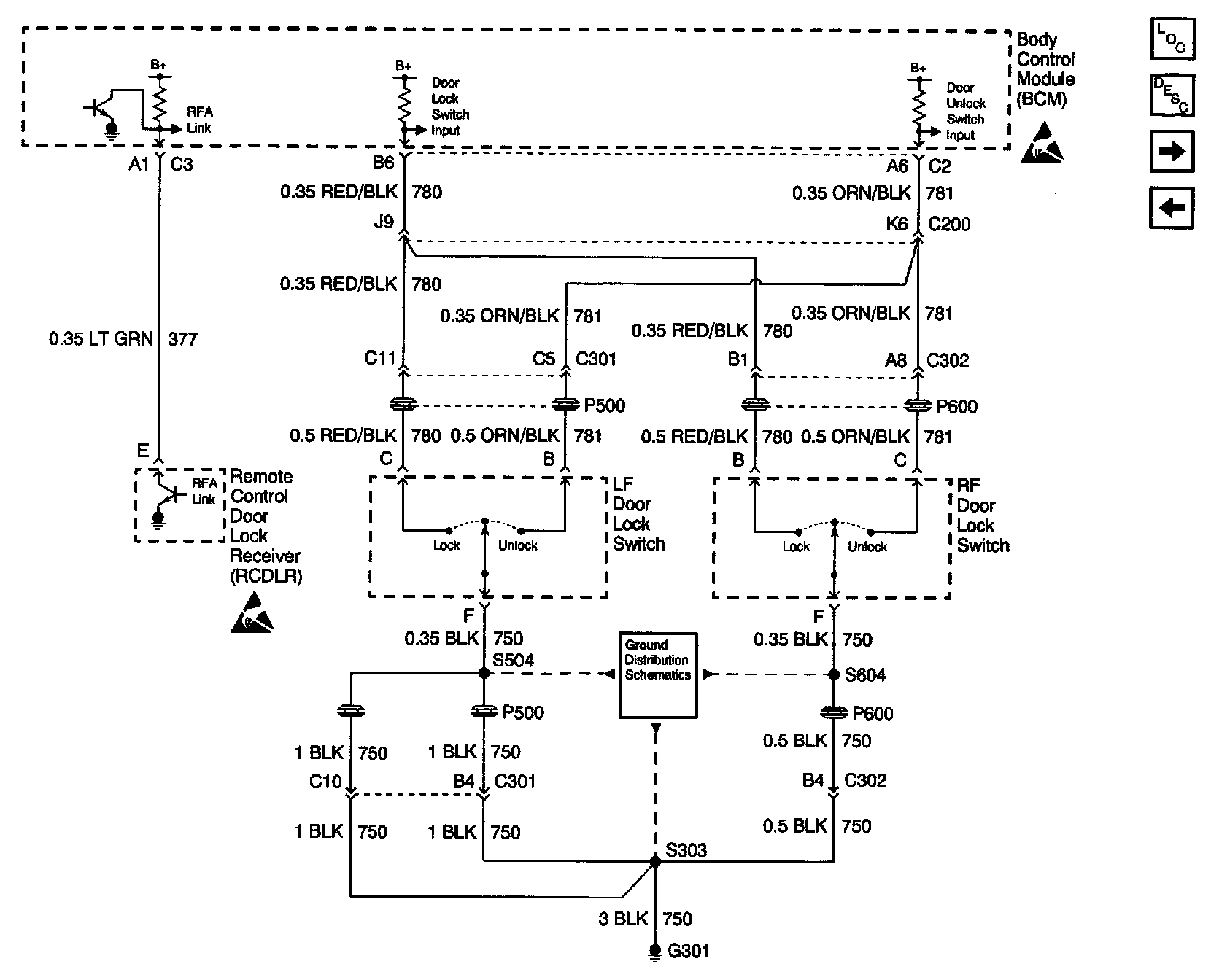

Body Control Module Schematics: Door Lock Switch Inputs And Remote Control Door Lock Receiver (RCDLR) Link:
