Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2000
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Engine
>>
Oil Pressure Sensor
>>
Diagrams
Oil Pressure Sensor: Diagrams

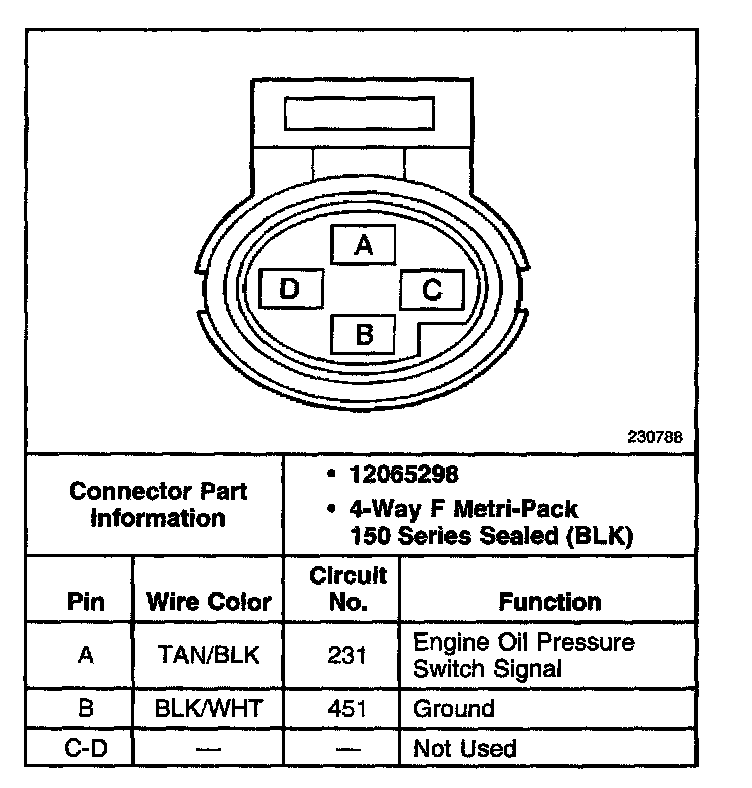

Engine Oil Pressure Indicator Switch:
