Home >> Oldsmobile >> 2000 >> Intrigue V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Ambient Light Sensor >> Diagrams

Ambient Light Sensor: Diagrams

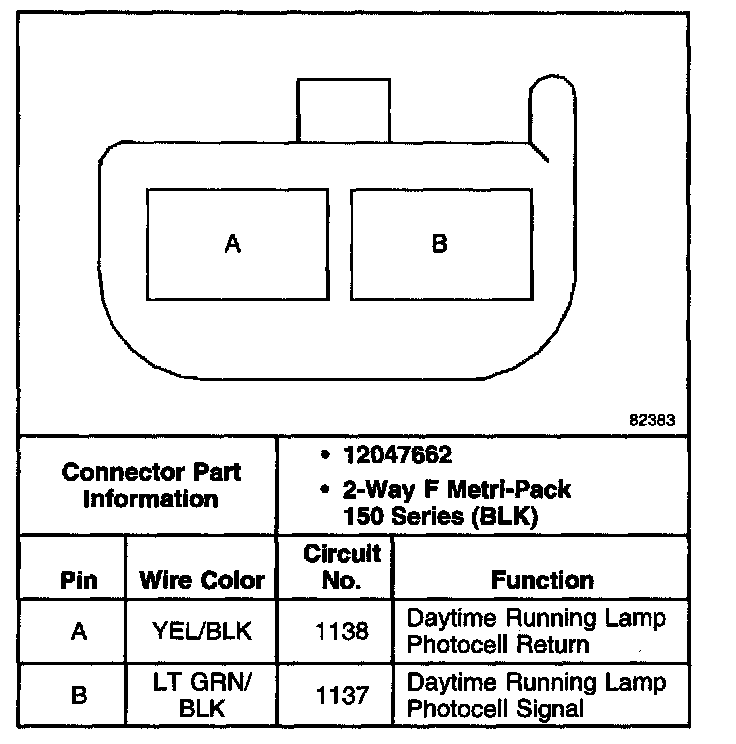

Daytime Running Lamp (DRL) Ambient Light Sensor:
