Home
>>
Oldsmobile
>>
2000
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Starting and Charging
>>
Ignition Switch
>>
Locations
>>
Component Locations
>>

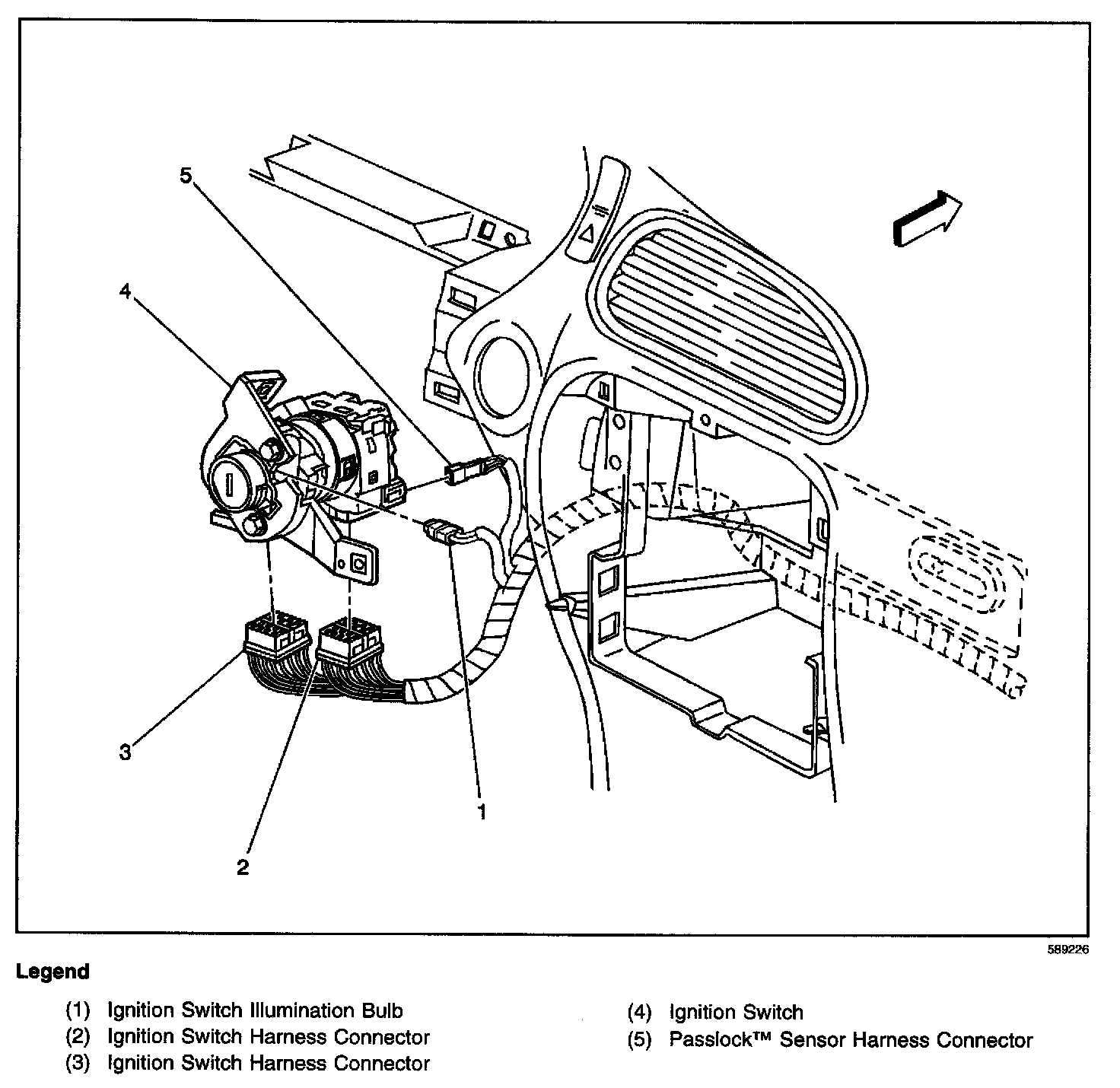

Ignition Switch - Dash Mounted
Ignition Switch - Dash Mounted
Locations View:
Locations View:
Mounted in the IP, right side of the instrument cluster
