Thread Repair Specifications

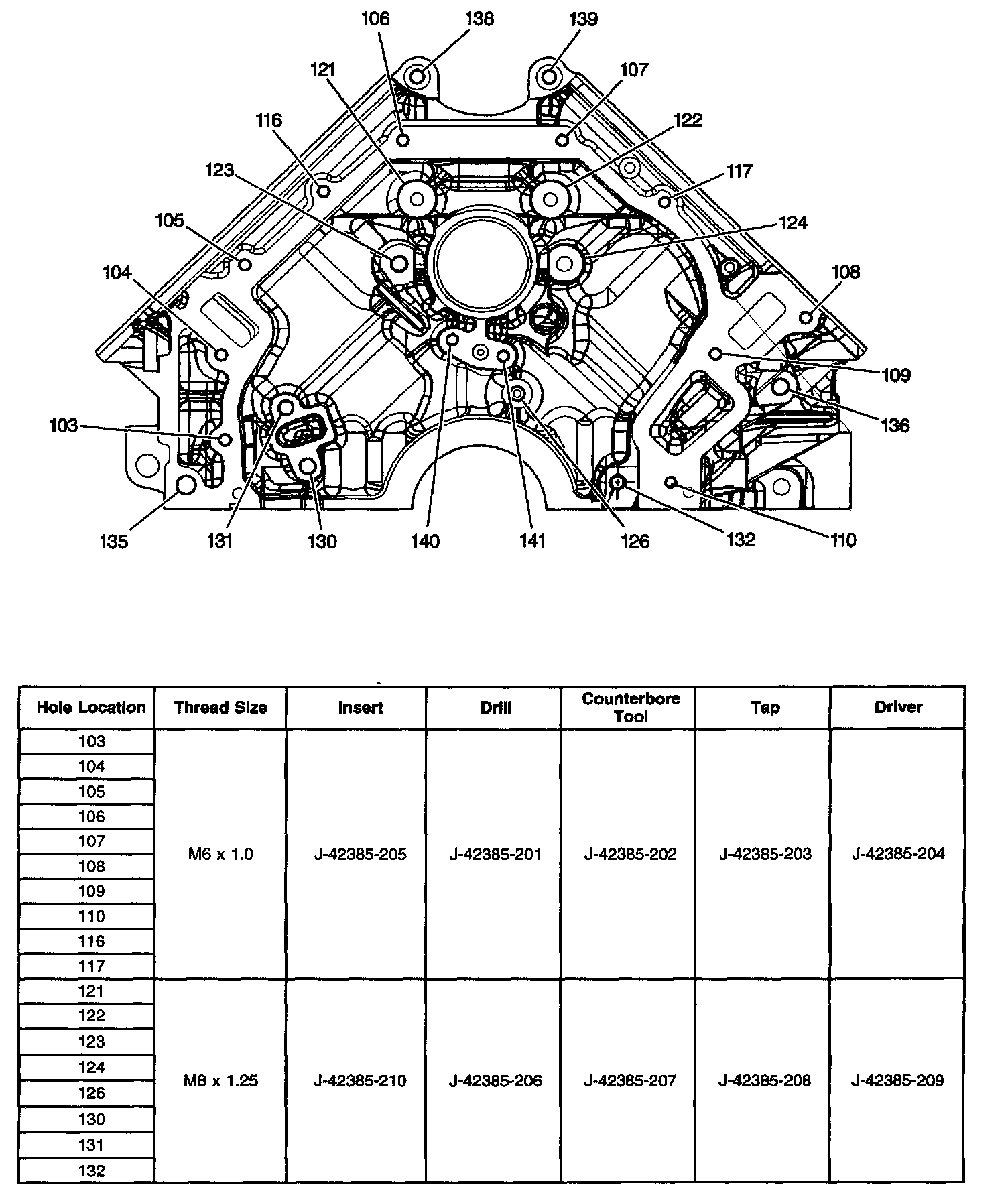

Cylinder Block - Front Face

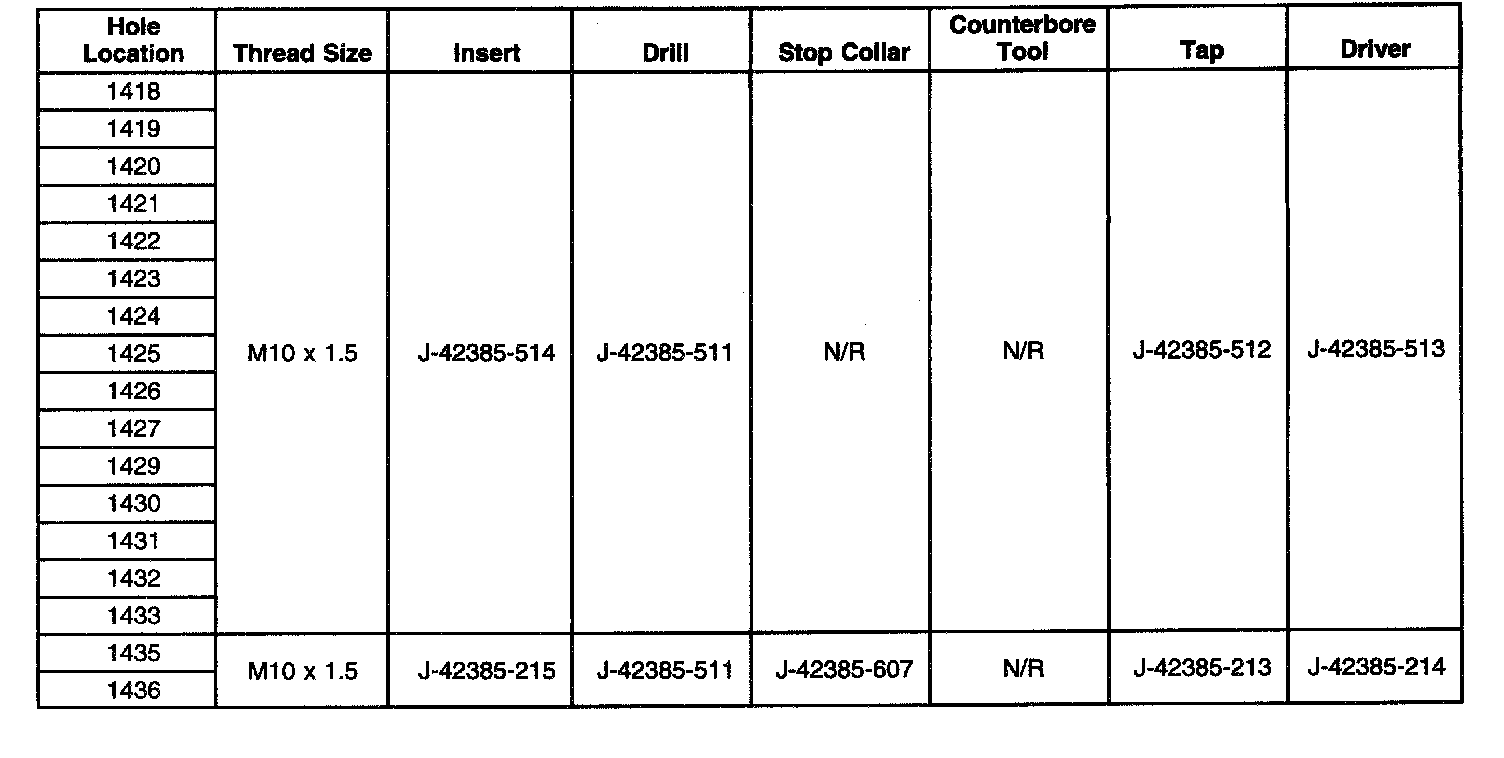

Part 1 of 2
Part 2 of 2

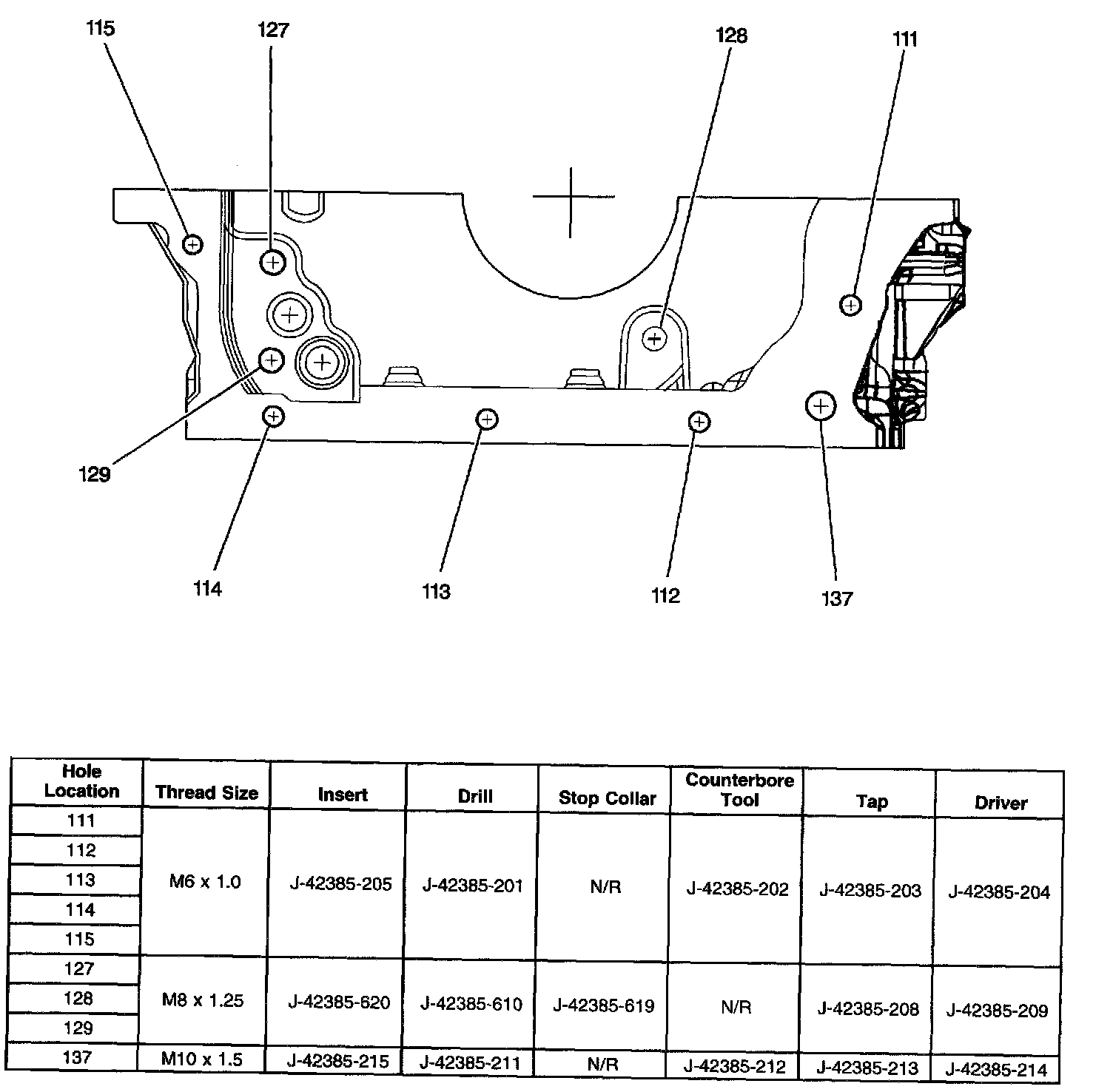

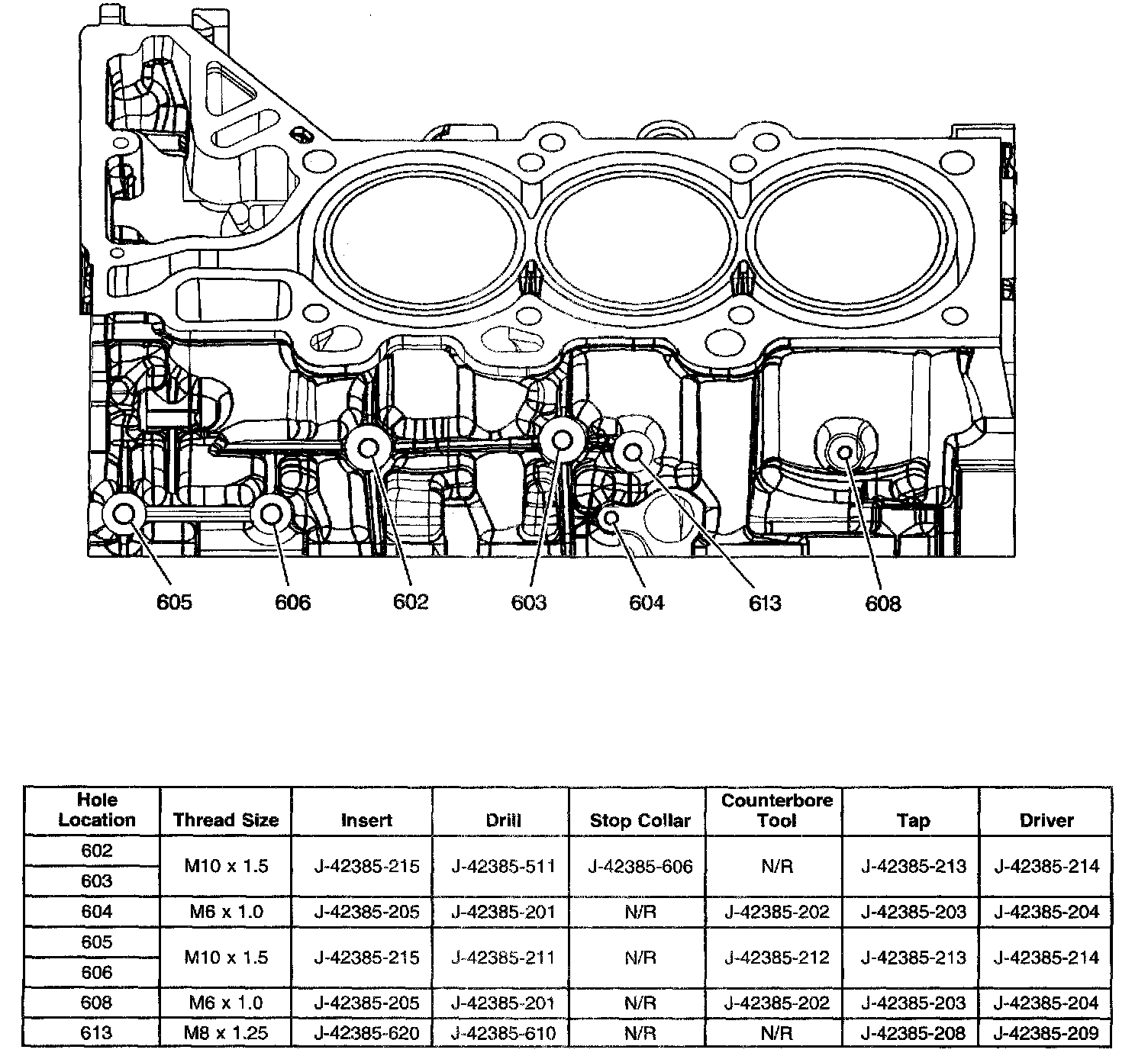

Cylinder Block - Left Side

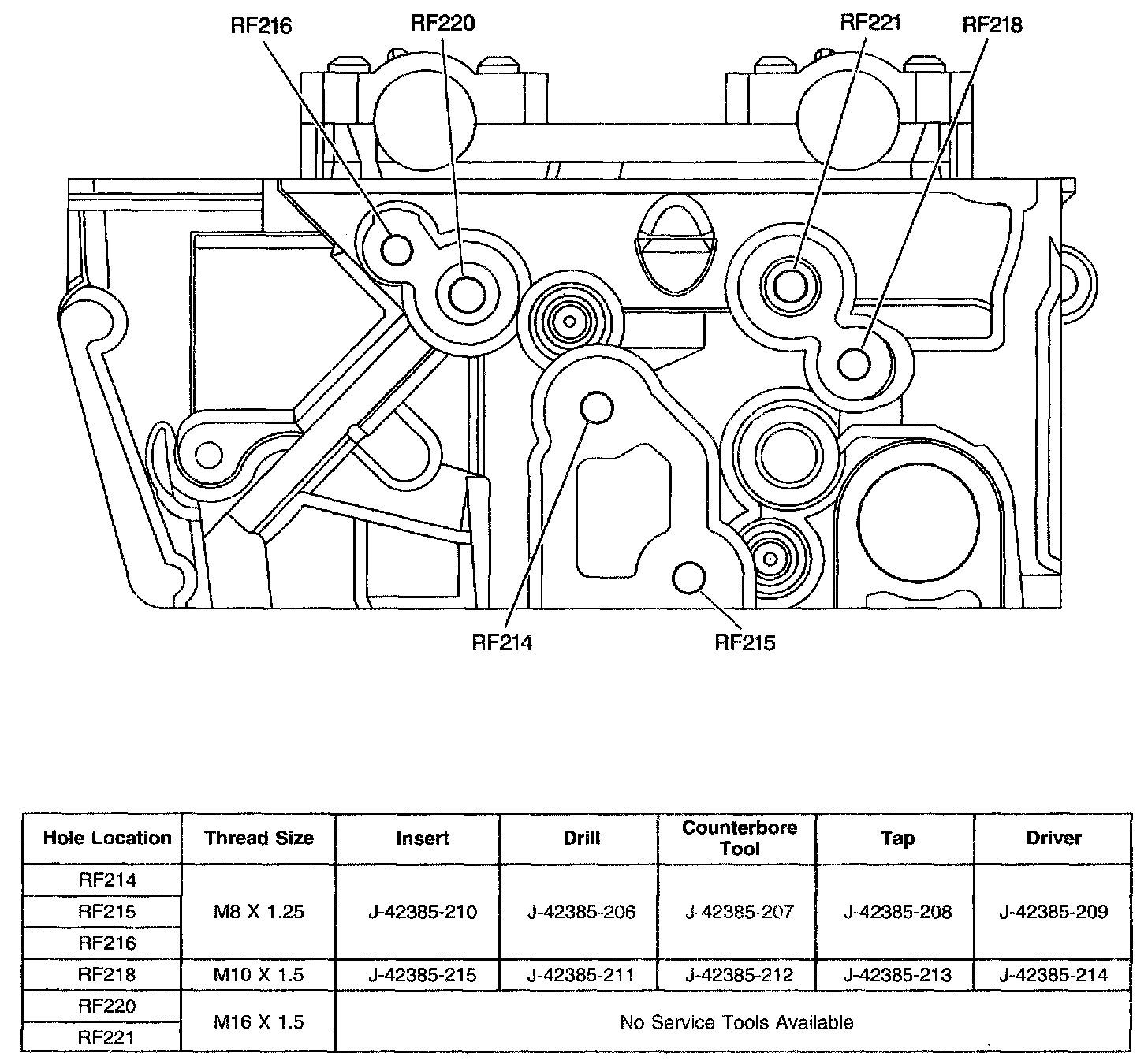

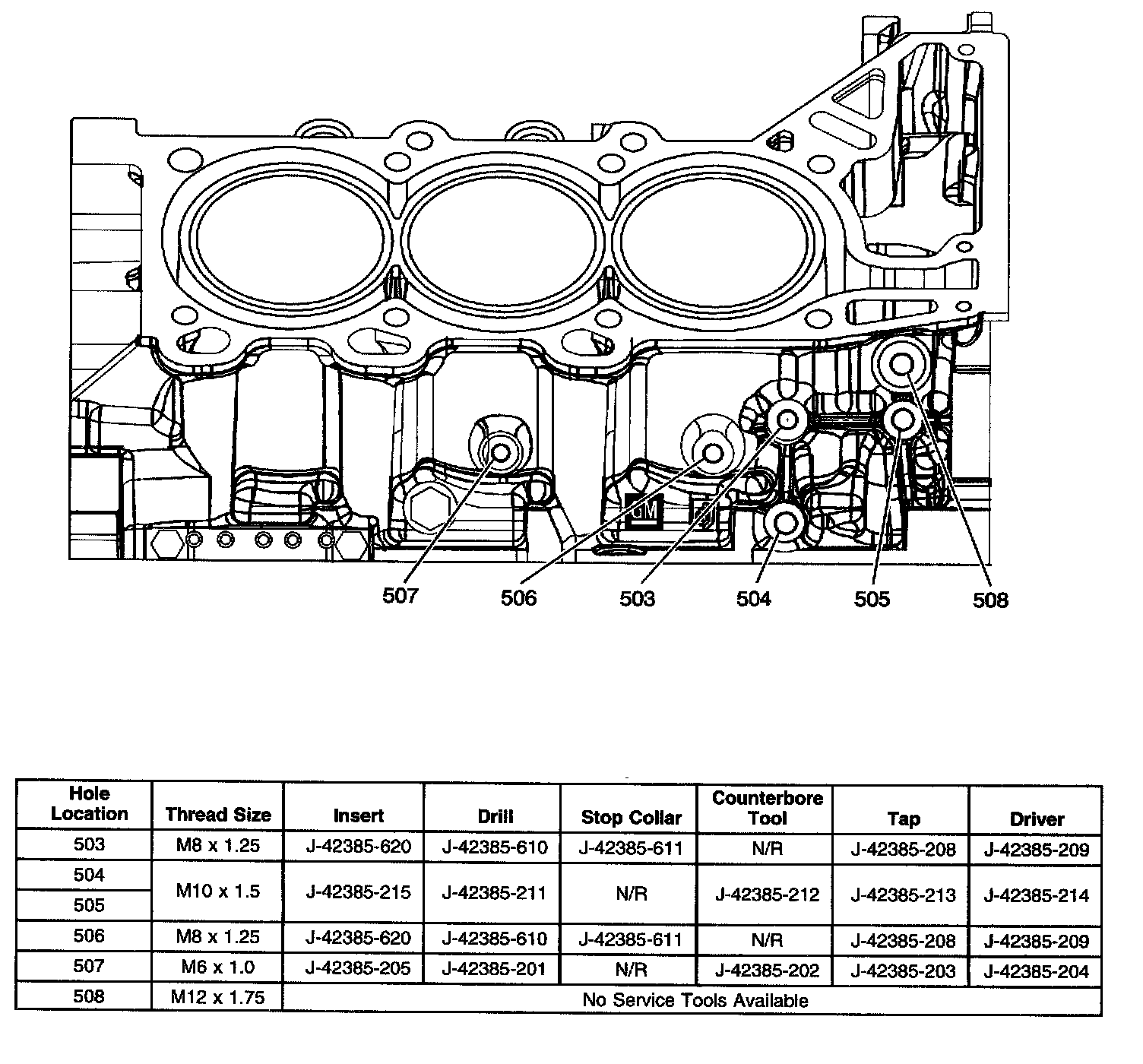

Cylinder Block - Right Side

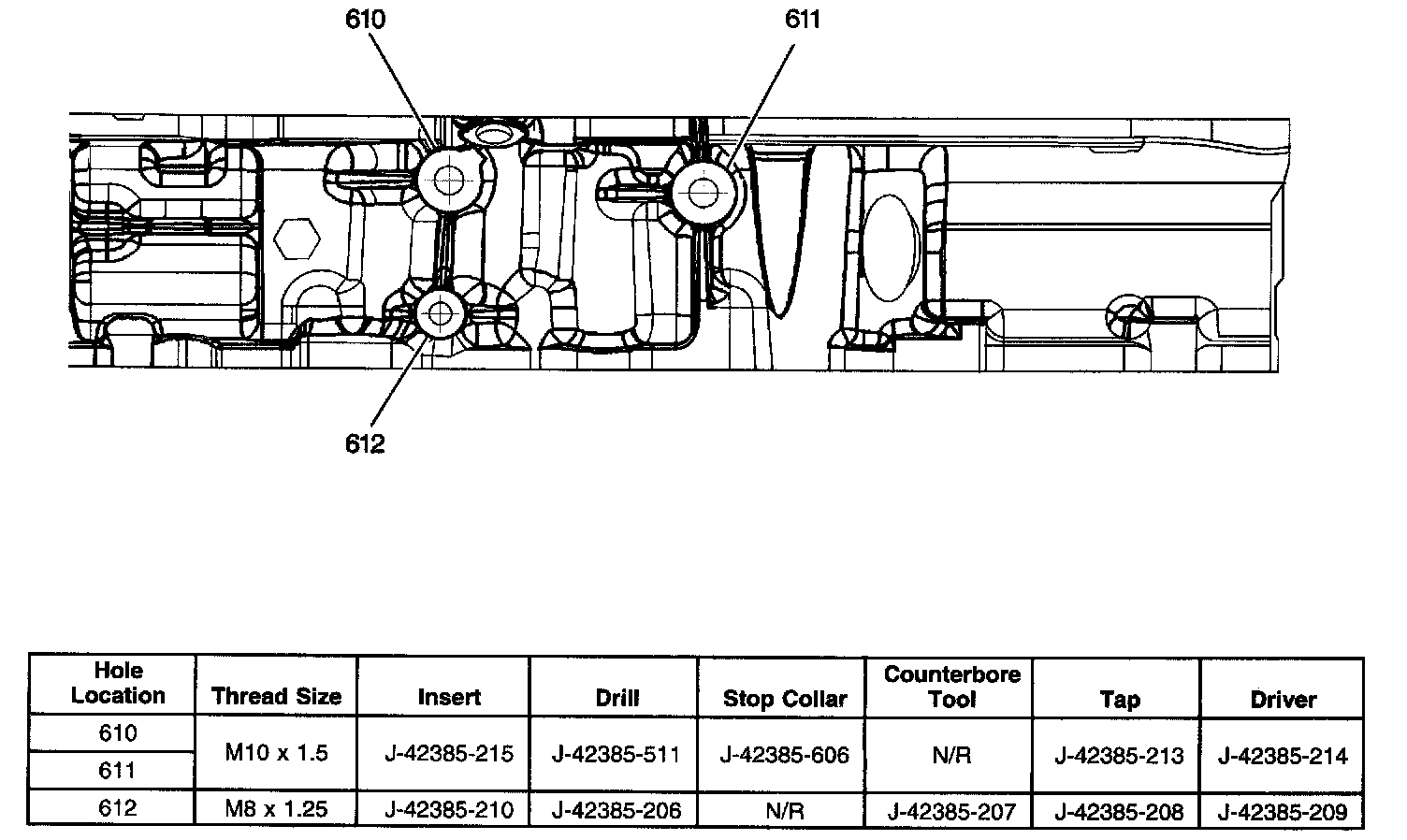

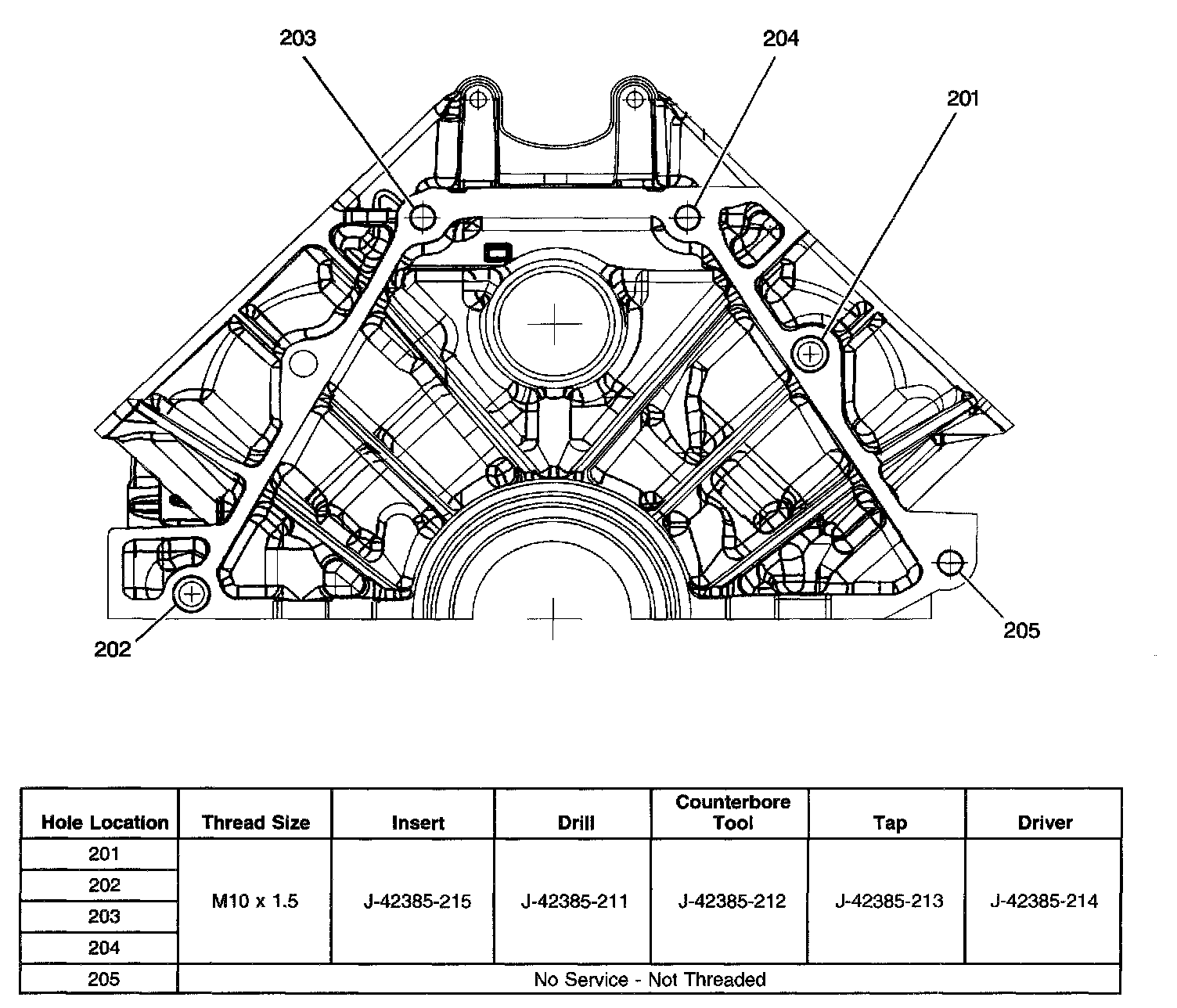

Cylinder Block - Rear Face

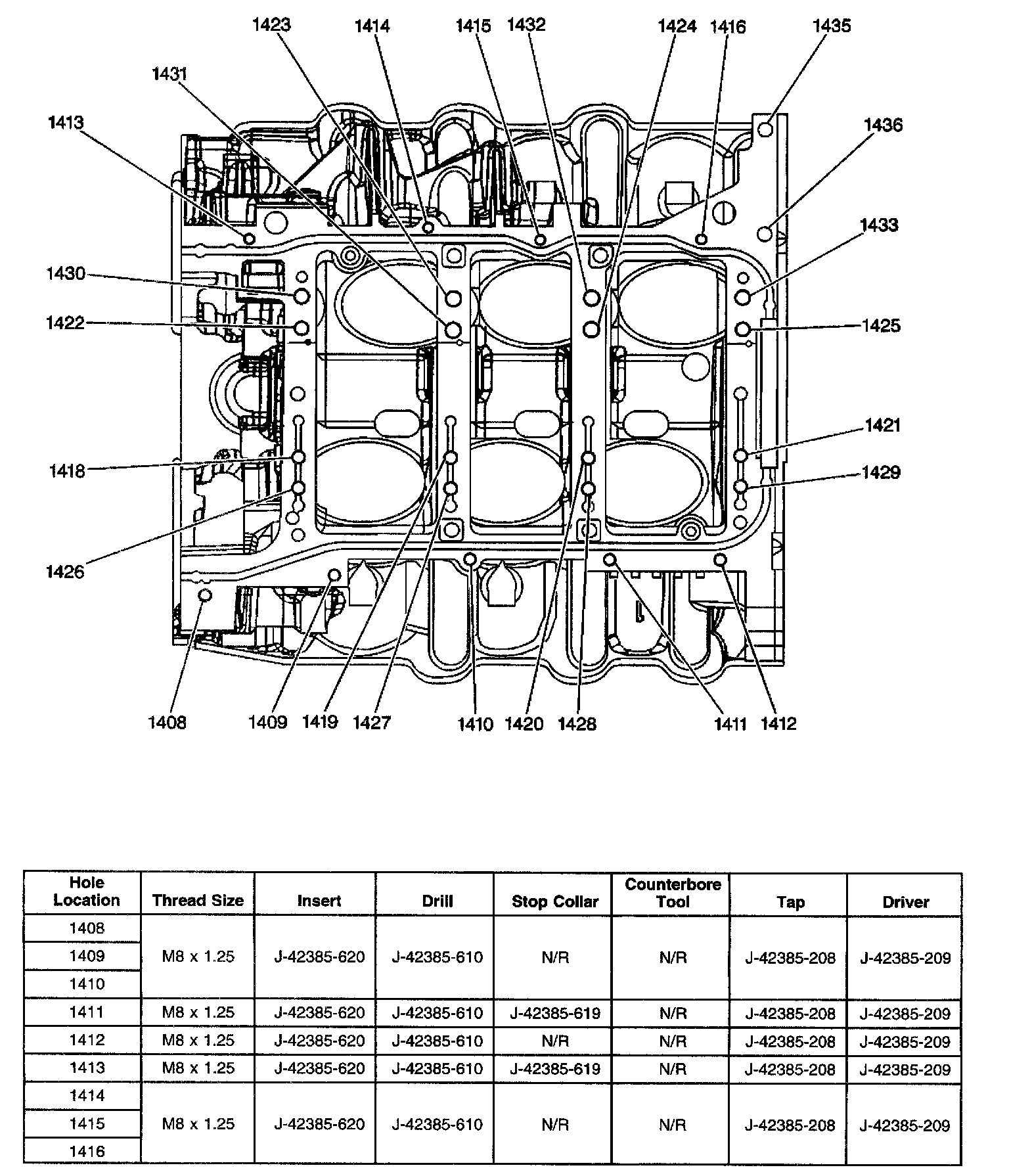

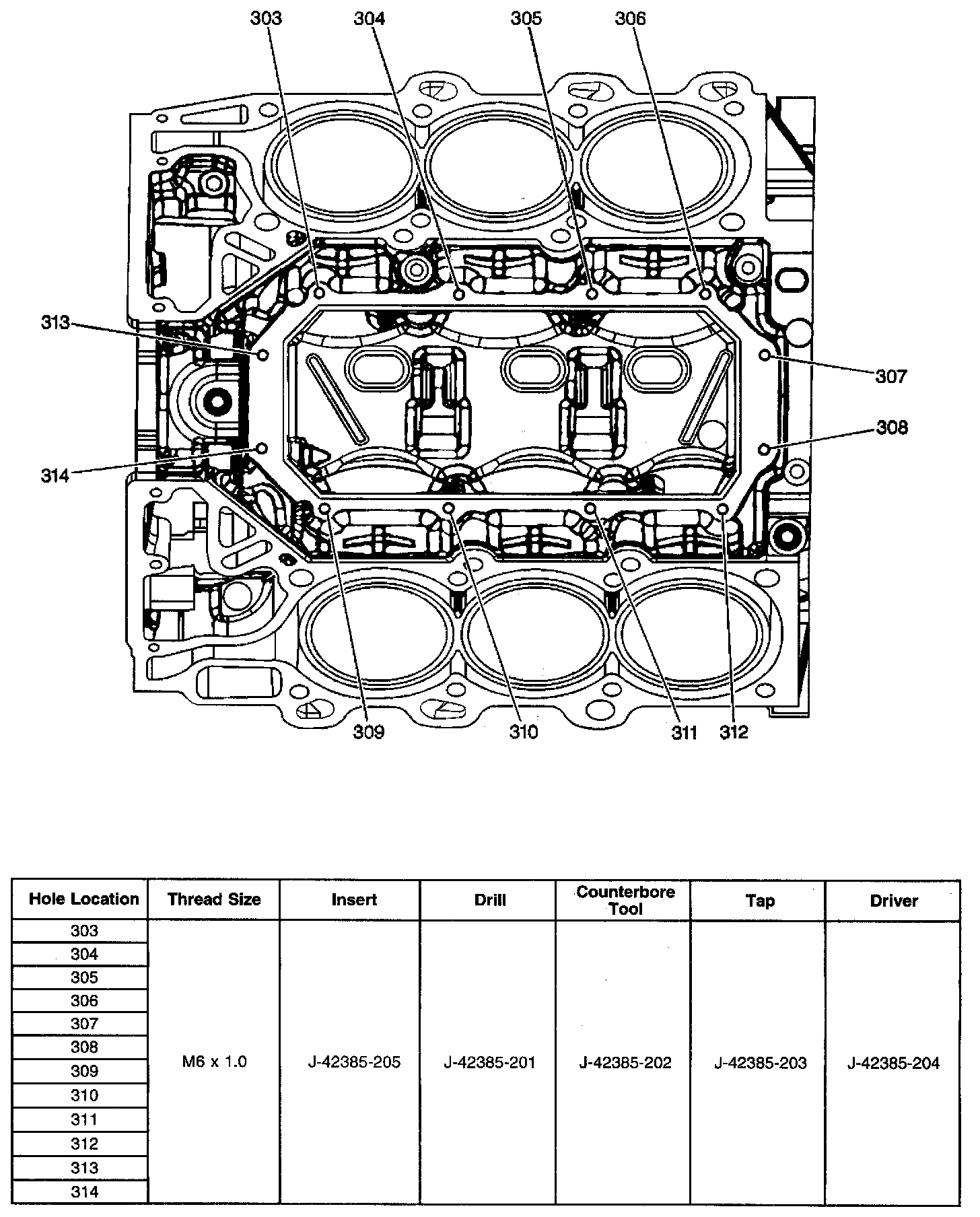

Cylinder Block - Upper Joint Face
Part 1 of 2
Part 2 of 2

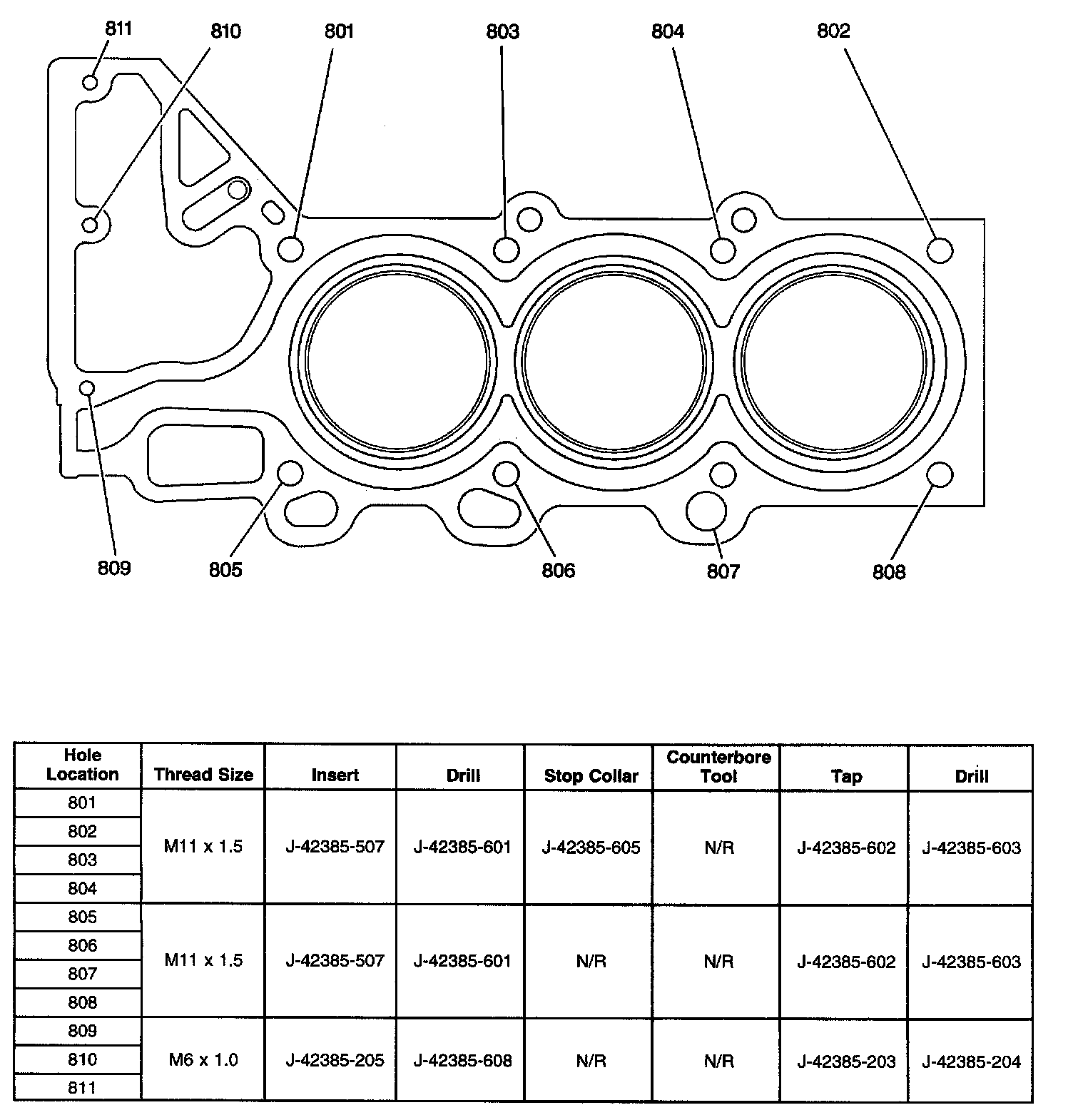

Left Bank Deck Face

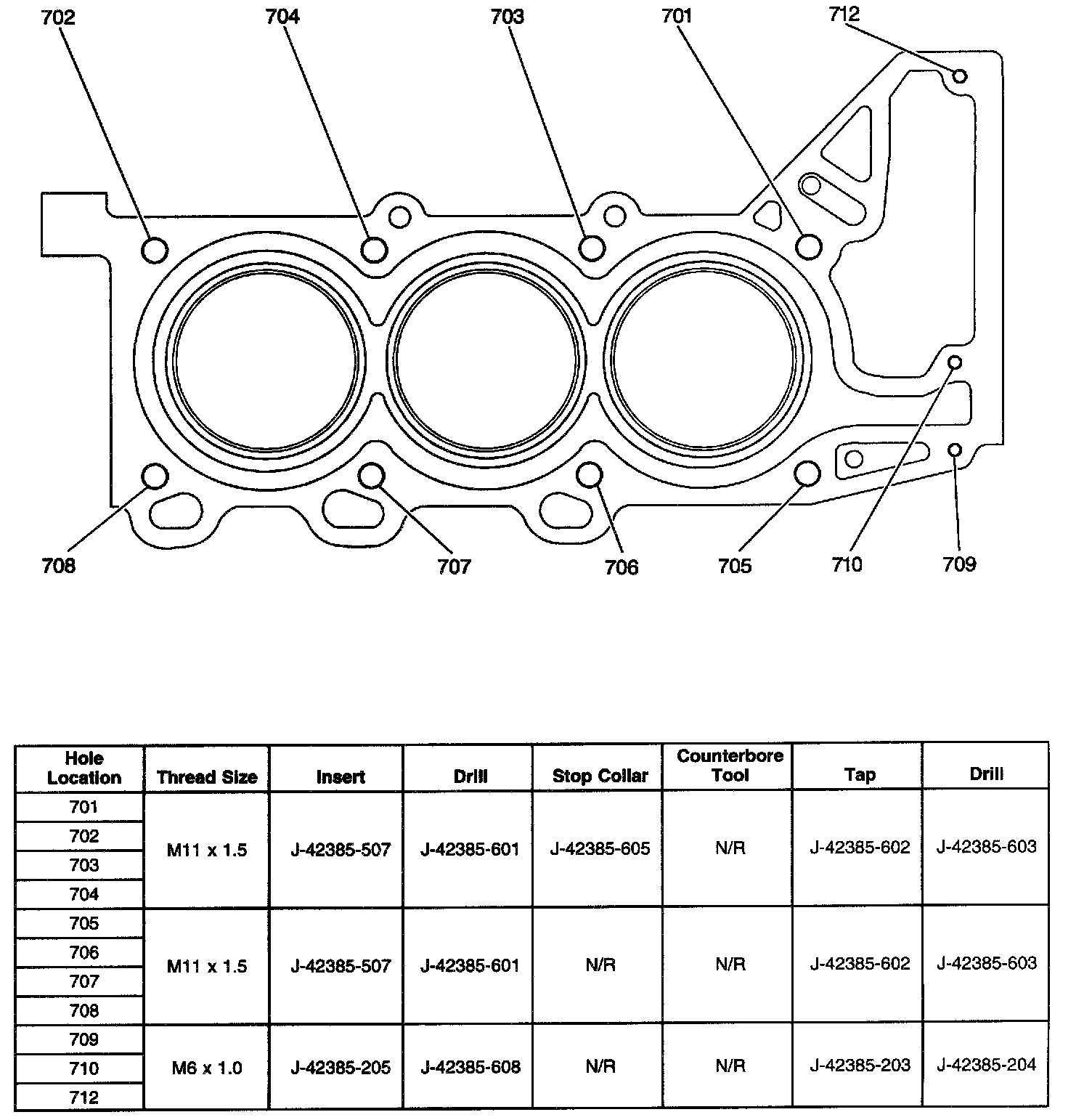

Right Bank Deck Face
Cylinder Block Top View
Lower Crankcase Front Face
Lower Crankcase Left Side

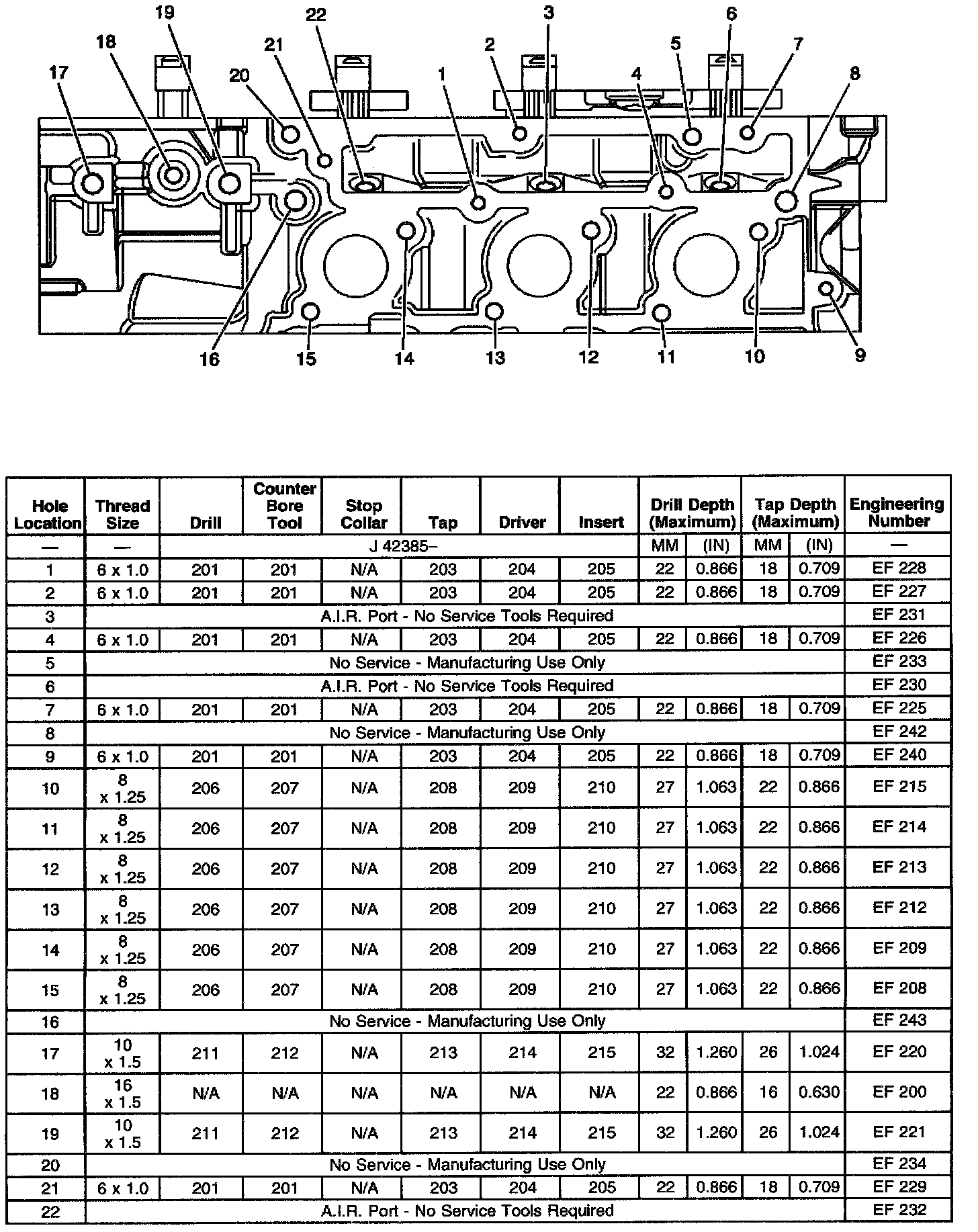

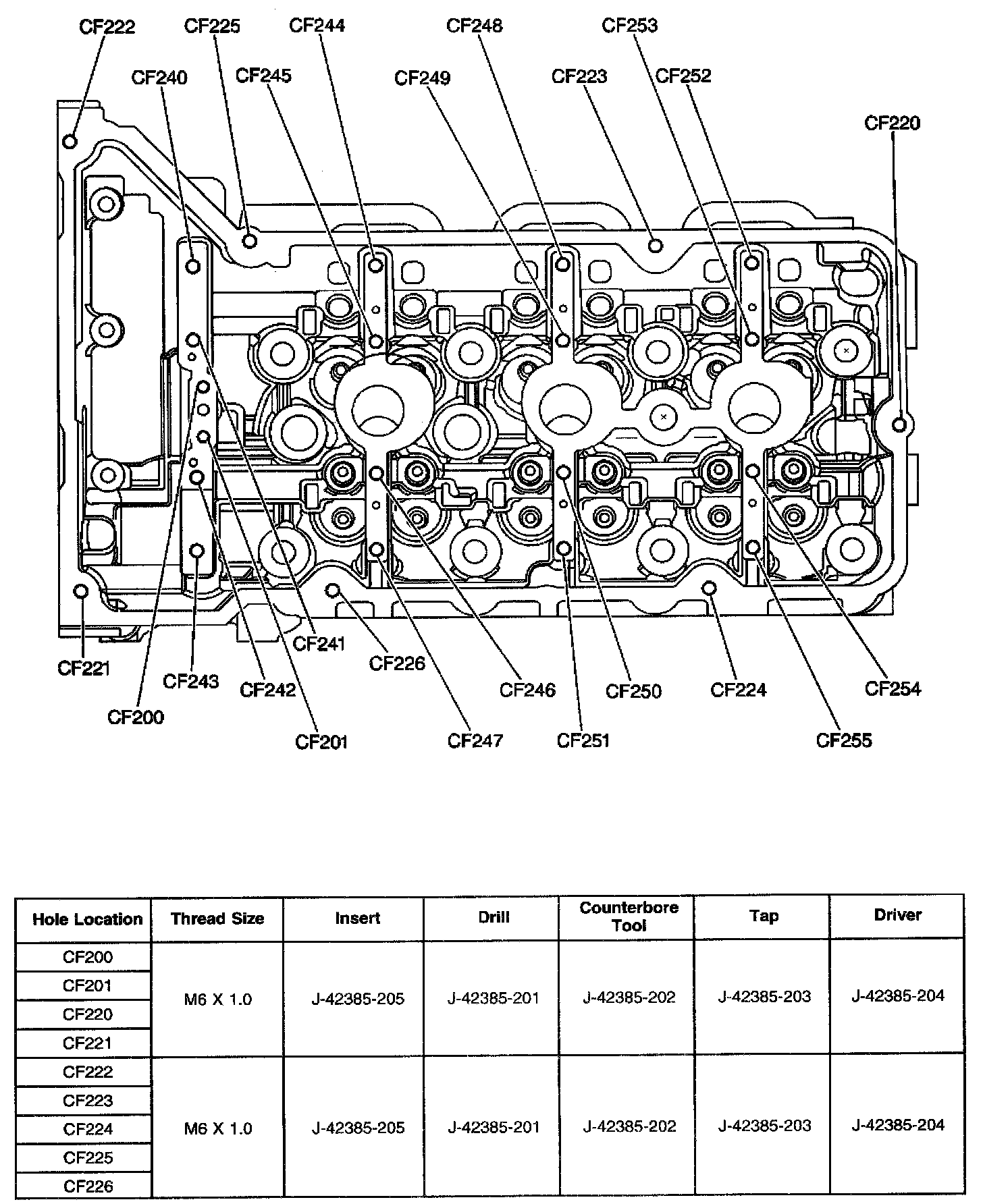

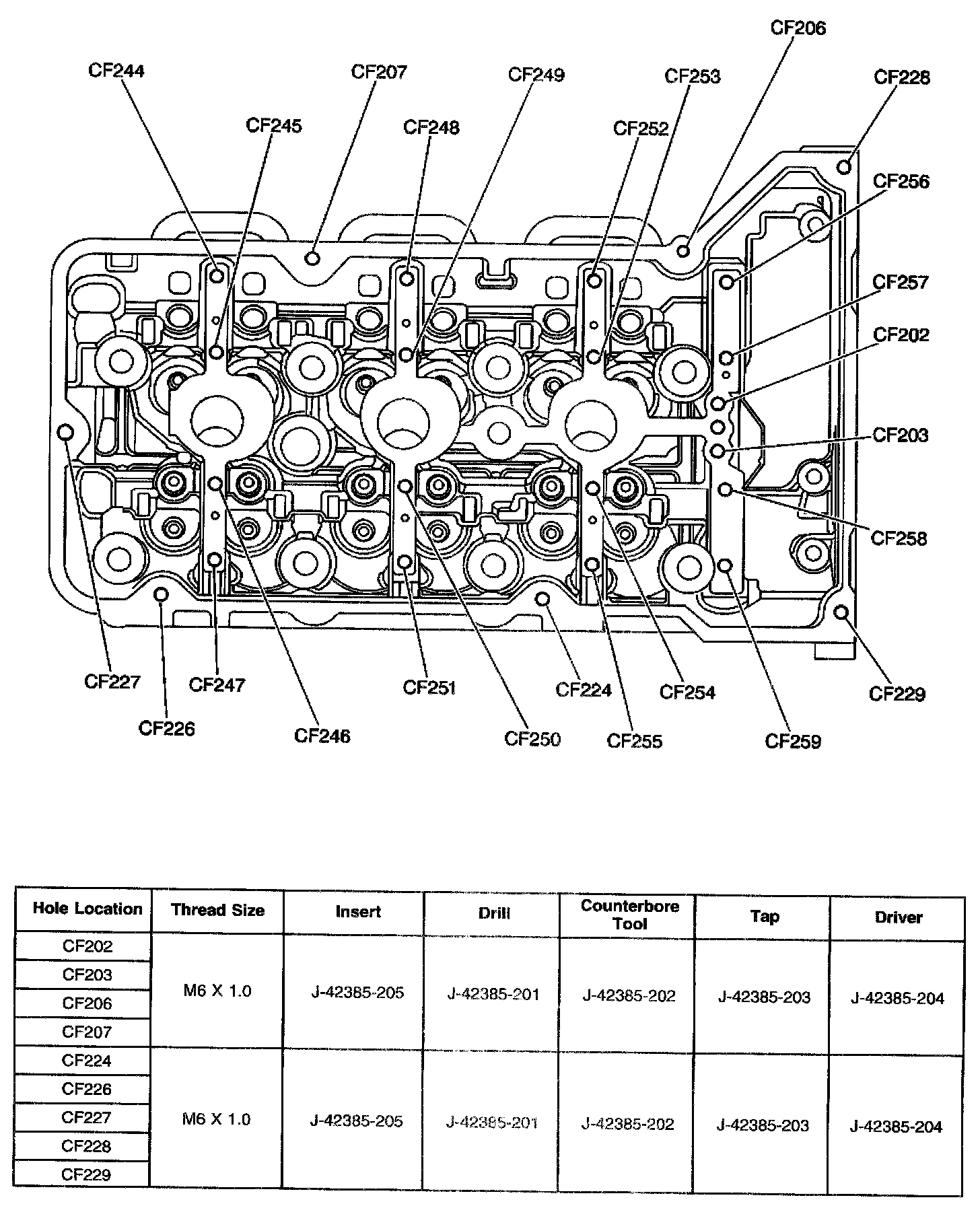

Left Cylinder Head Cam Cover Face

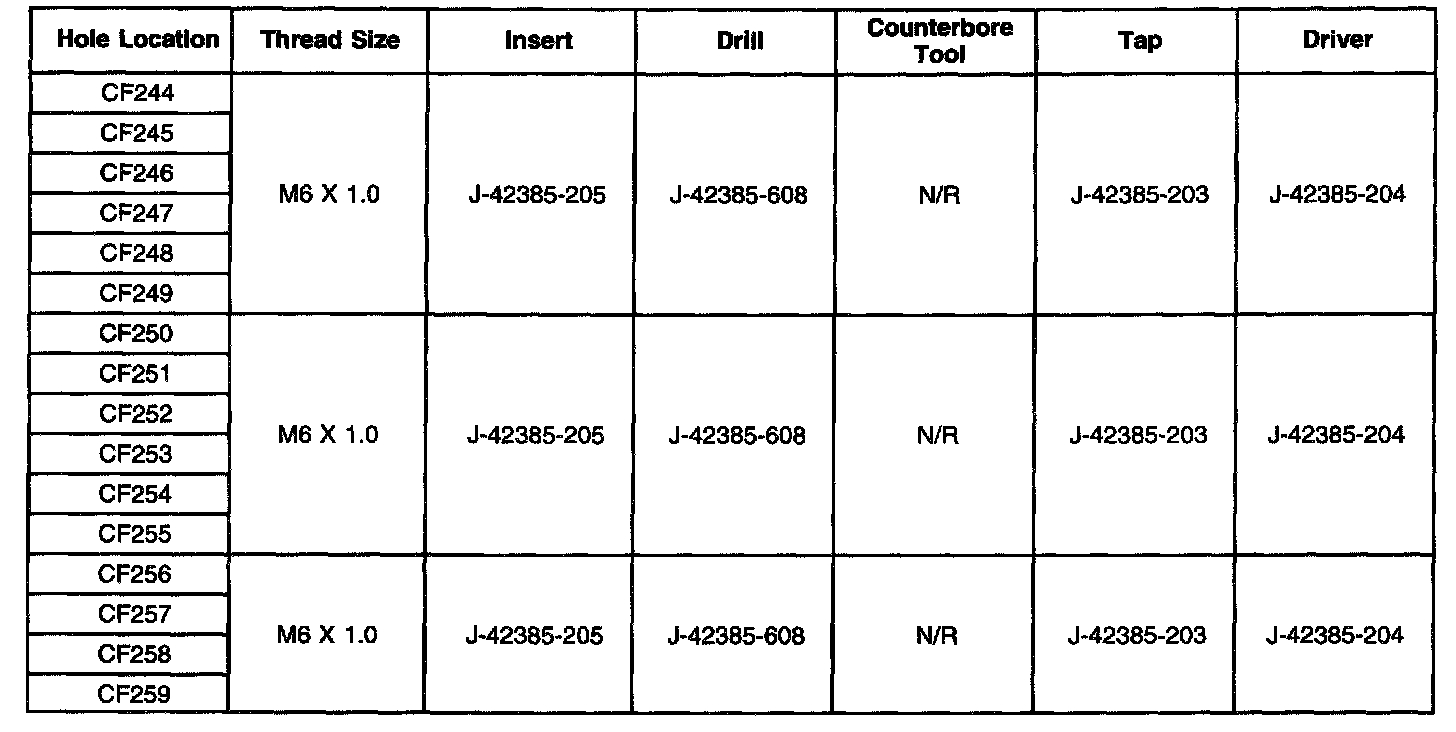

Part 1 of 2
Part 2 of 2

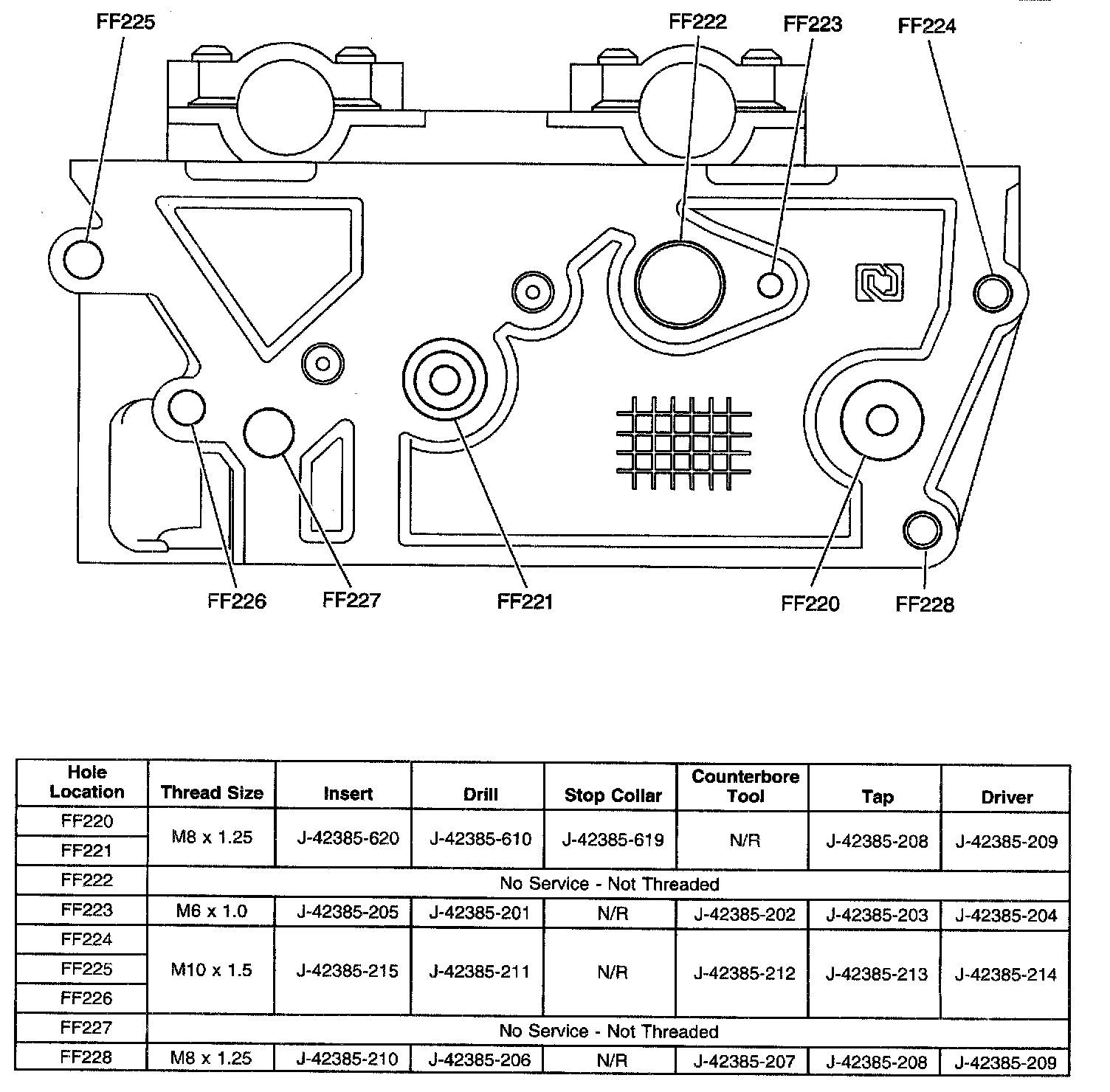

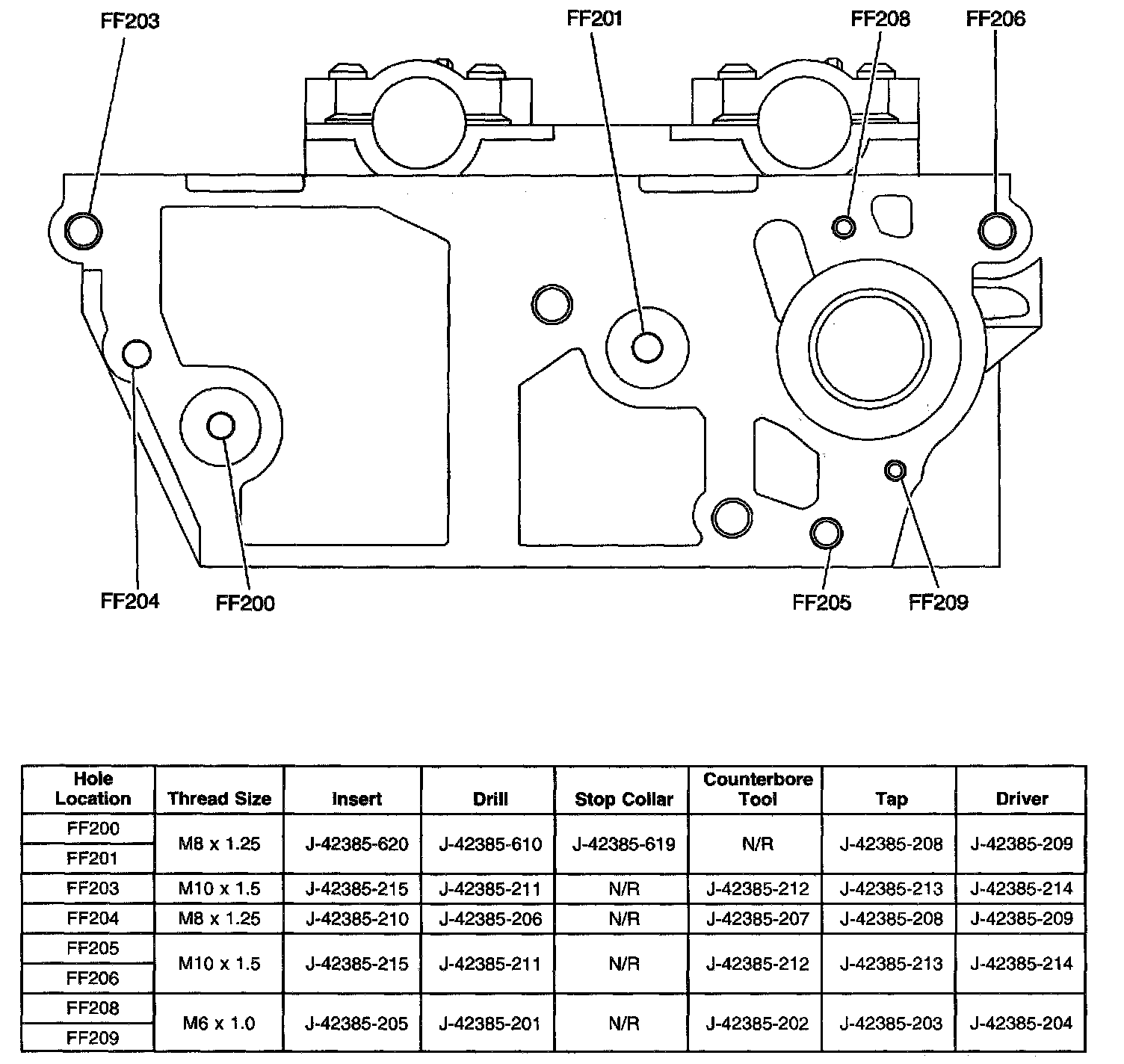

Left Cylinder Head Front Face

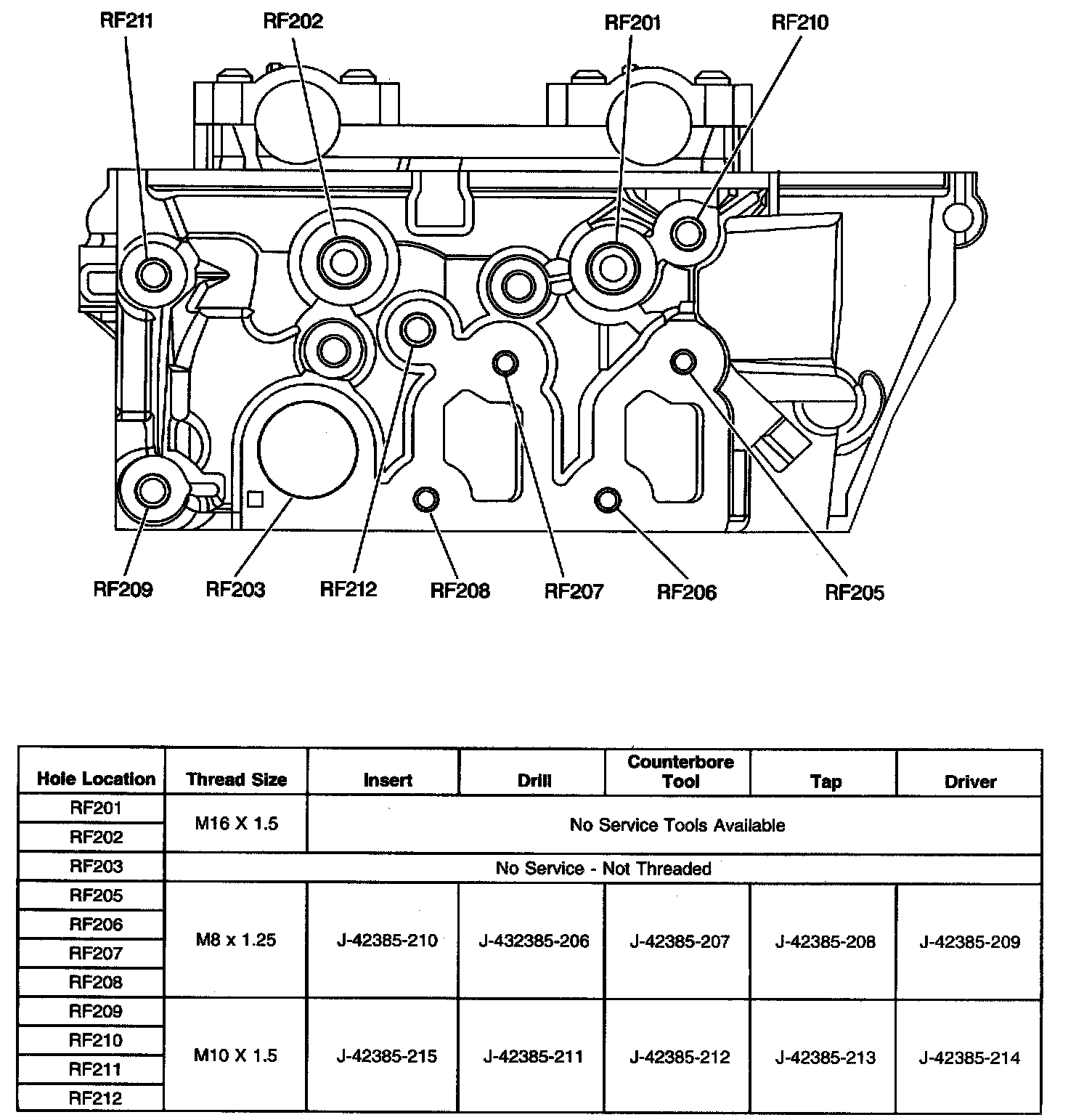

Left Cylinder Head Rear Face

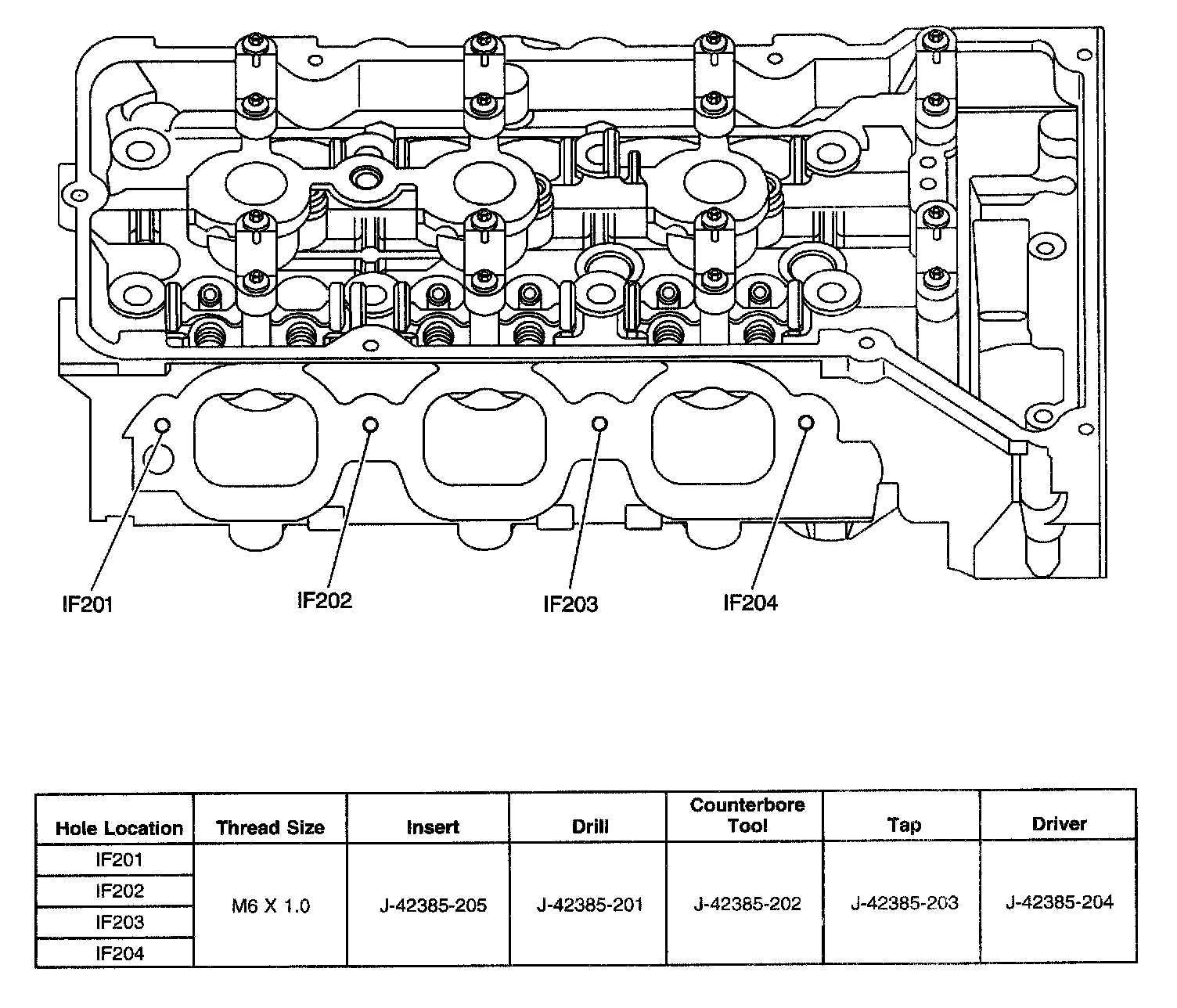

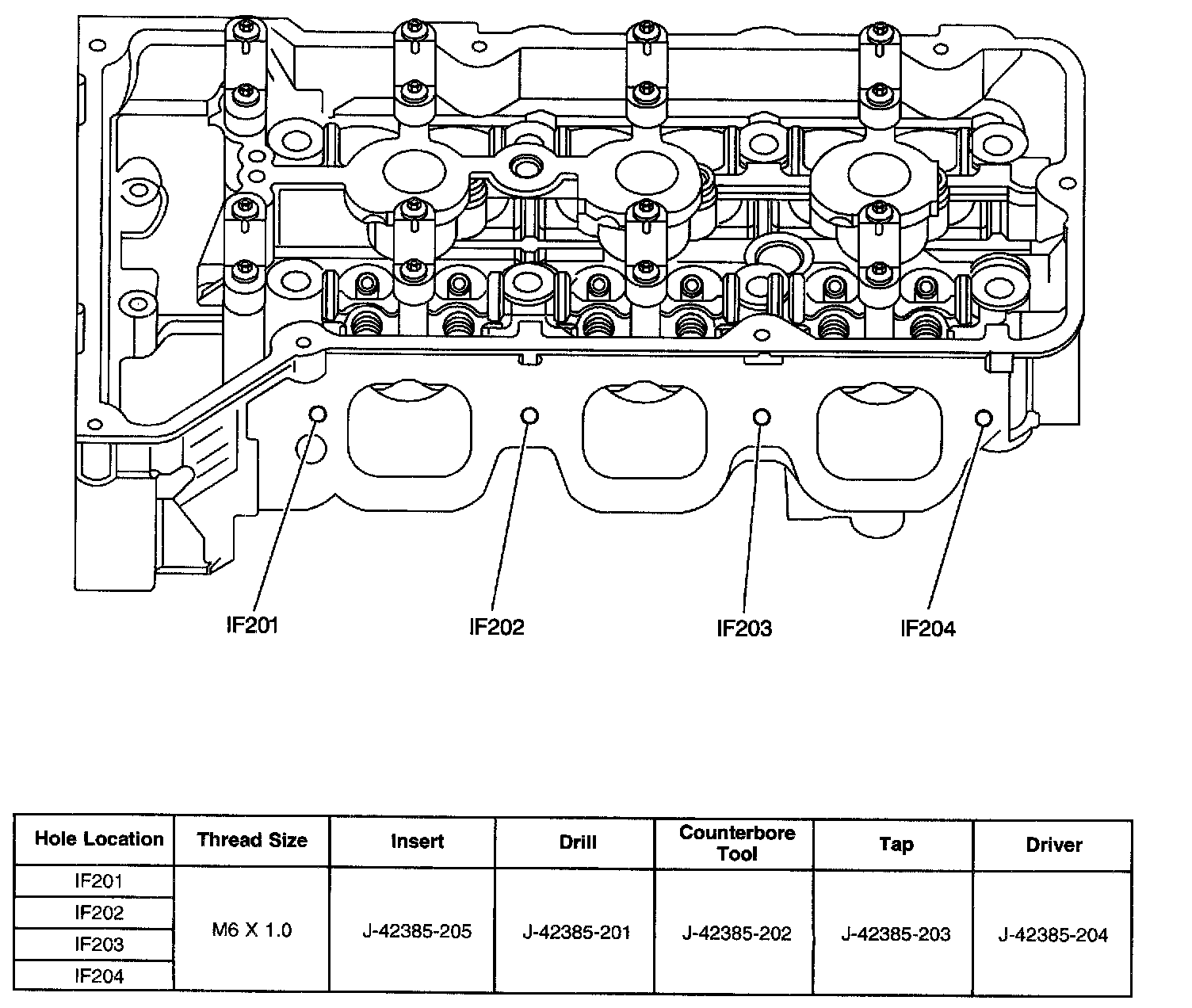

Left Cylinder Head Intake Face

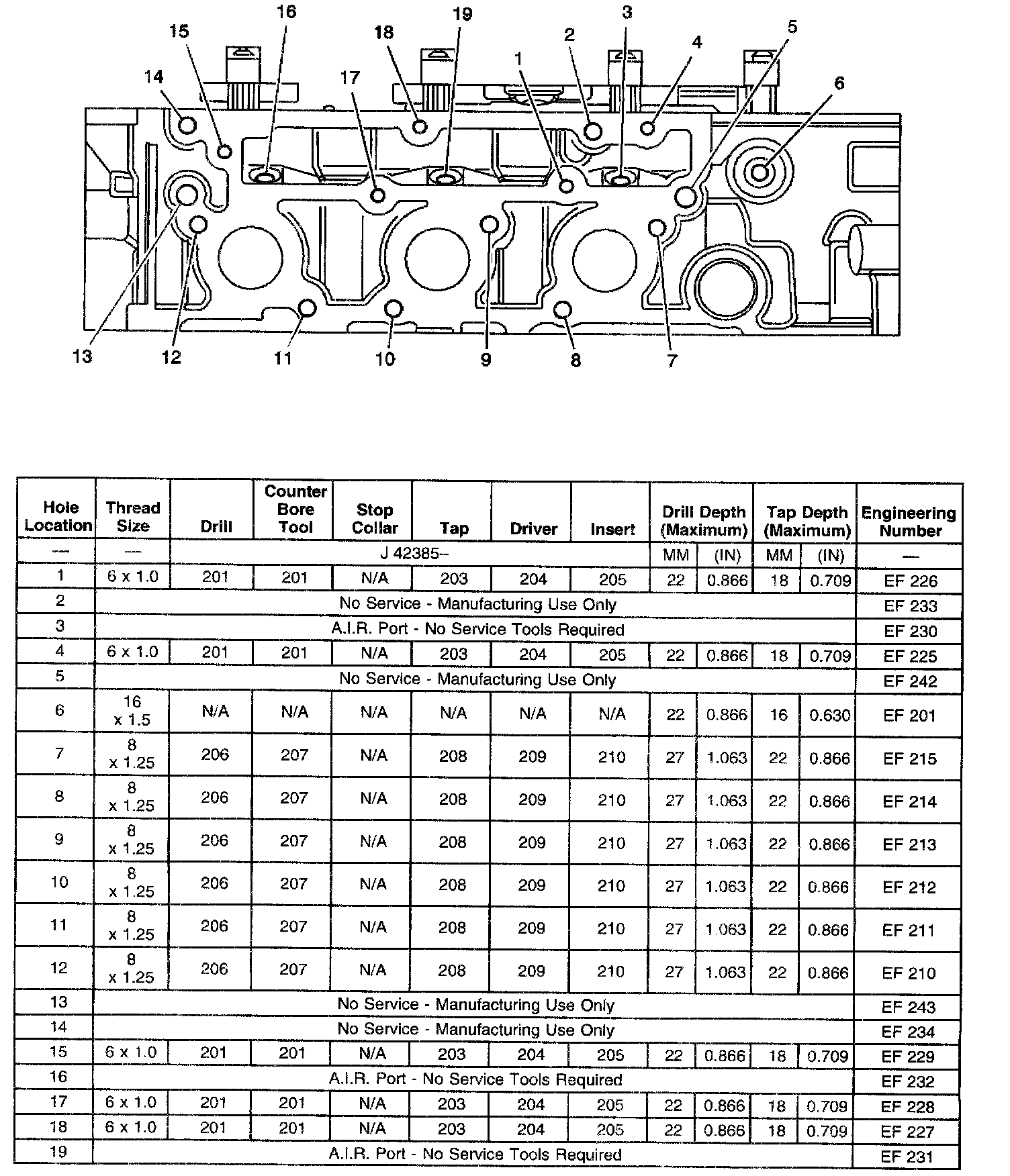

Left Cylinder Head Exhaust Manifold Face

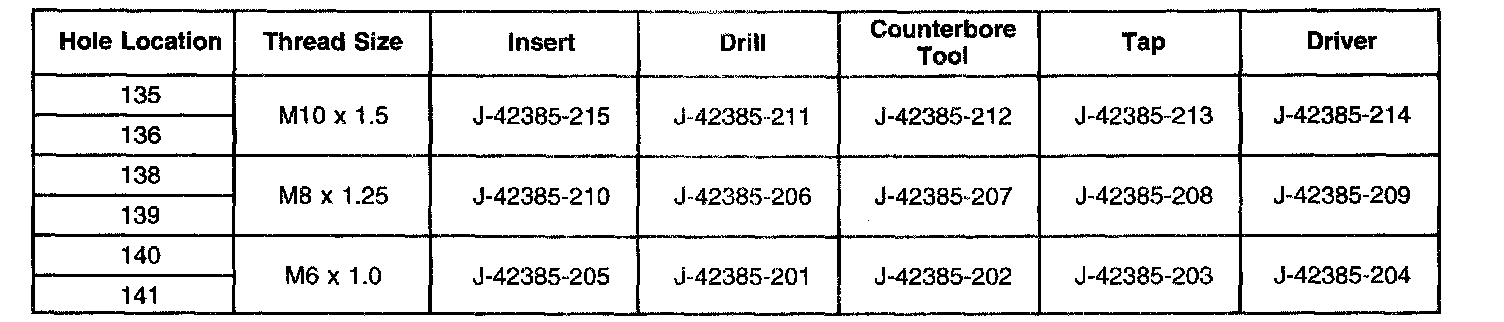

Left Cylinder Head Exhaust Manifold Face with A.I.R.

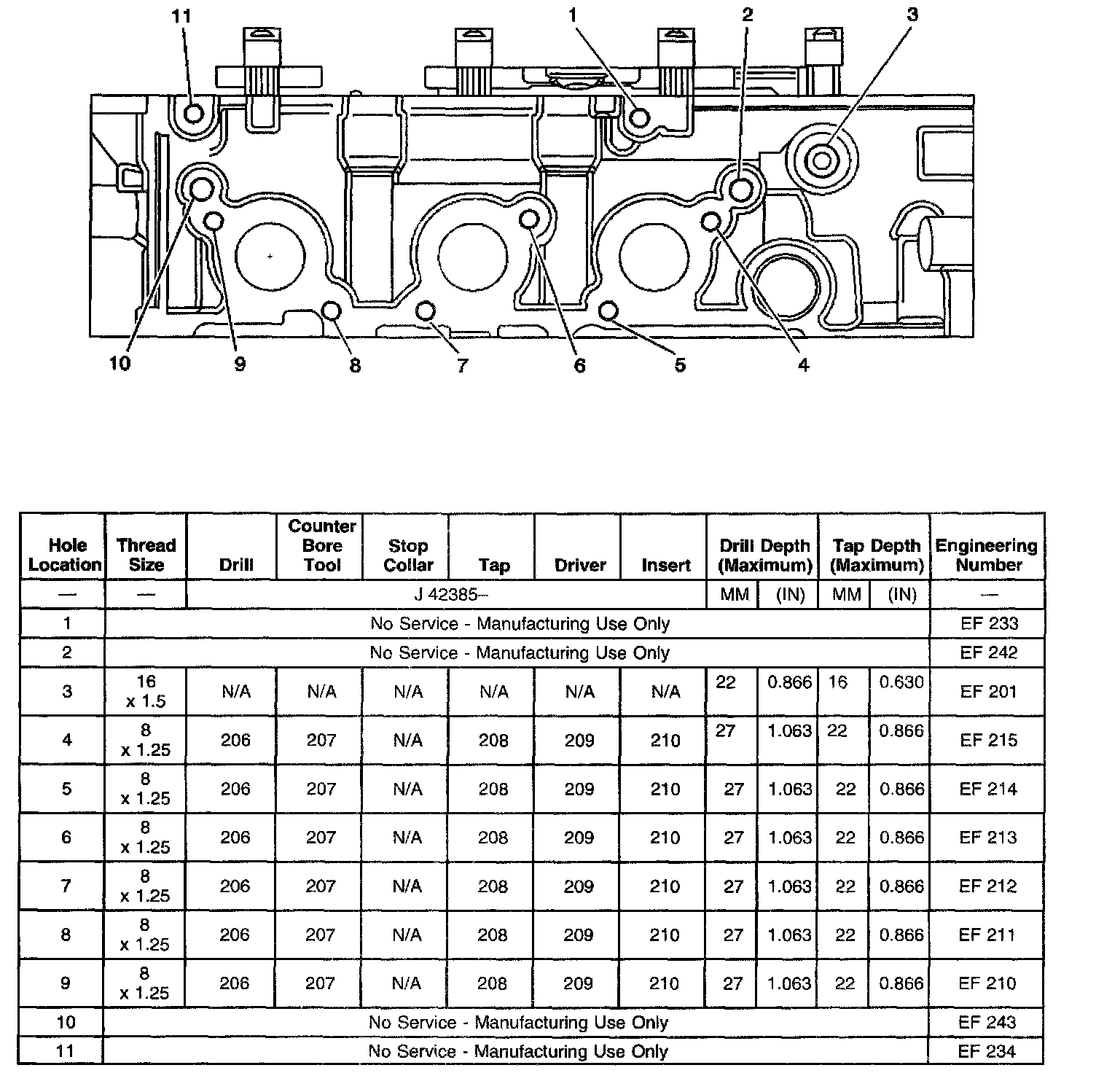

Right Cylinder Head Cam Cover Face
Part 1 of 2
Part 2 of 2
Right Cylinder Head Front Face
Right Cylinder Head Rear Face
Right Cylinder Head Intake Face
Right Cylinder Head Exhaust Manifold Face
Right Cylinder Head Exhaust Manifold Face with A.I.R.
