17. Left Drive Shaft Oil Seal Disassemble

^ Tools Required
- J 23129 Seal Remover
- J 6125-1B Slide Hammer

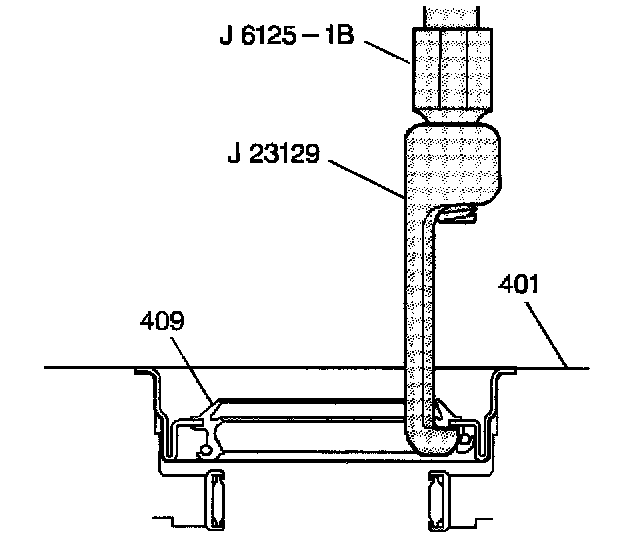

- Use J 23129 and J 6125-1B in order to remove the axle oil seal assembly (409) from the case cover (401).
