Power Windows - Power Feed and Actuators
Power Windows - Power Feed and Actuators

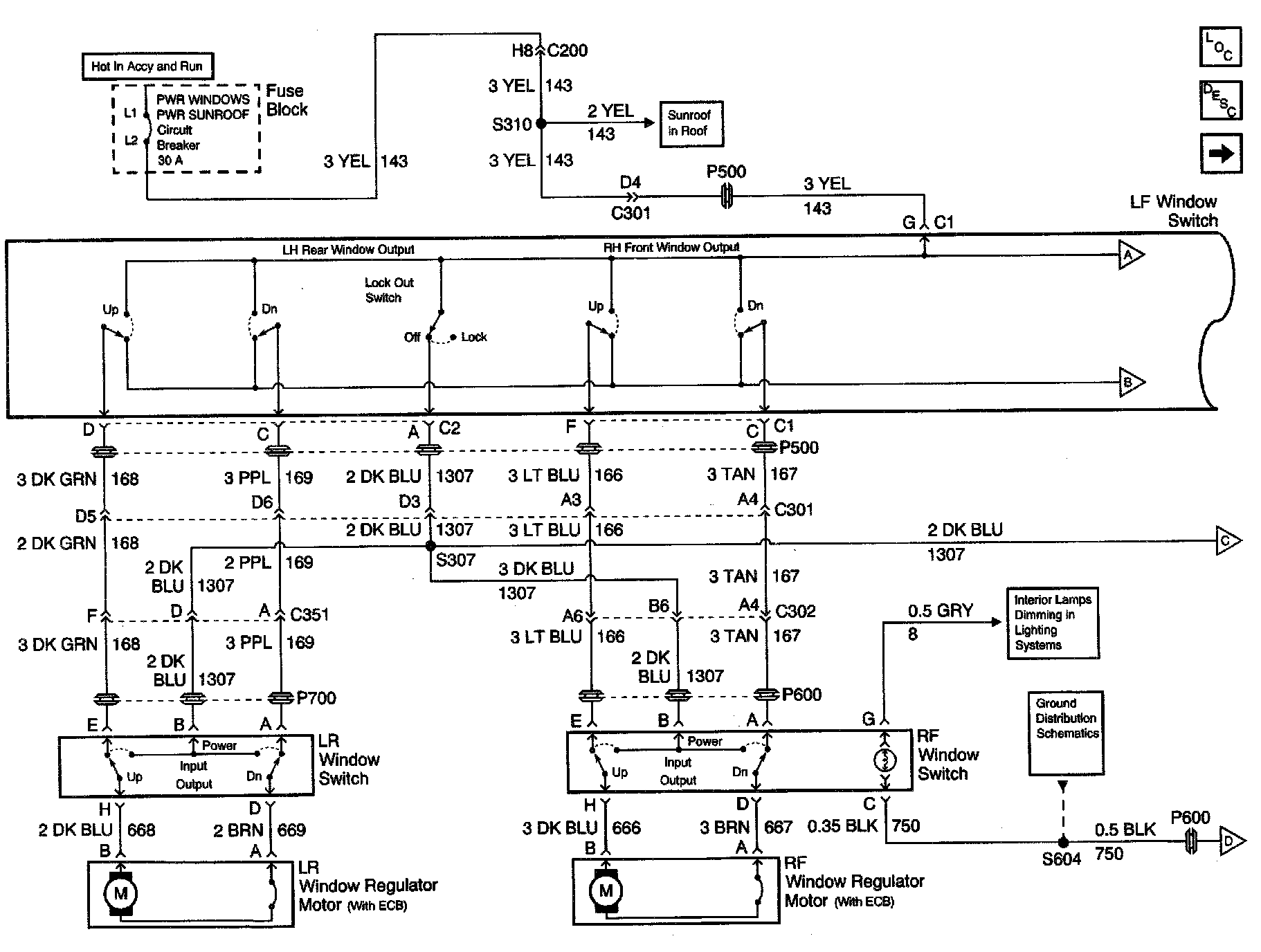

Power Window Schematics: Power Feed And Actuators:
