Home >> Oldsmobile >> 2001 >> Alero V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Door Lock Switch - Driver (Level 1)

Door Lock Switch - Driver (Level 1)

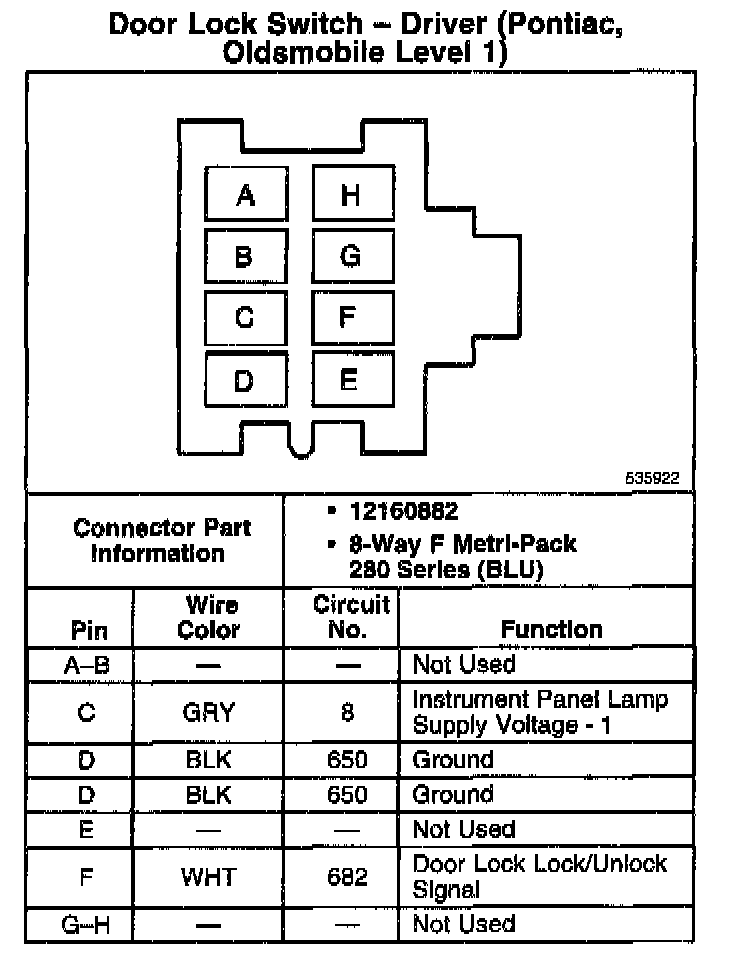

Door Lock Switch - Driver (Pontiac, Oldsmobile Level 1):
