Home >> Oldsmobile >> 2001 >> Alero V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> Window Motor - RR

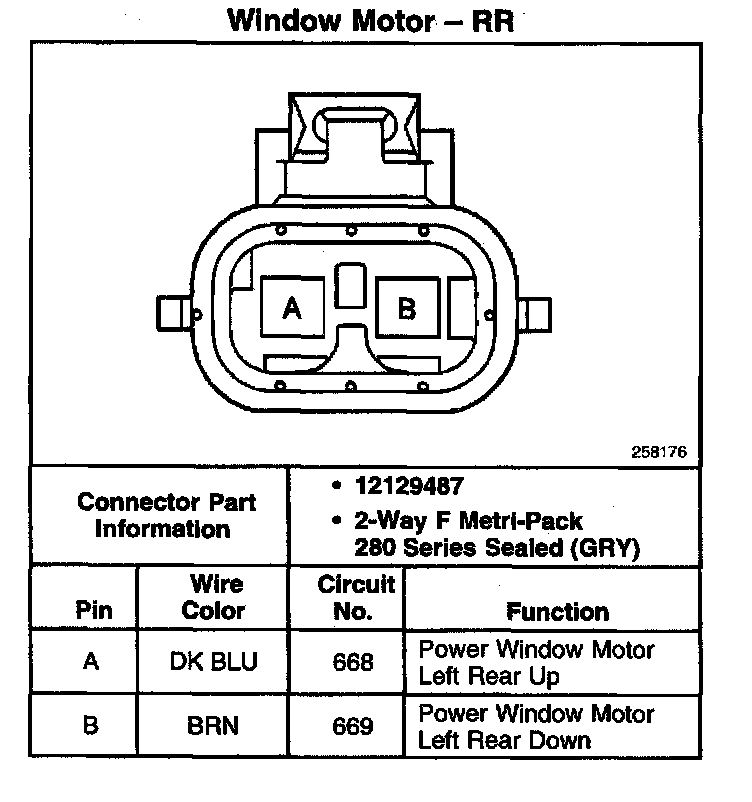

Window Motor - RR

Window Motor - RR:
