Home >> Oldsmobile >> 2001 >> Alero V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - Driver (Coupe)

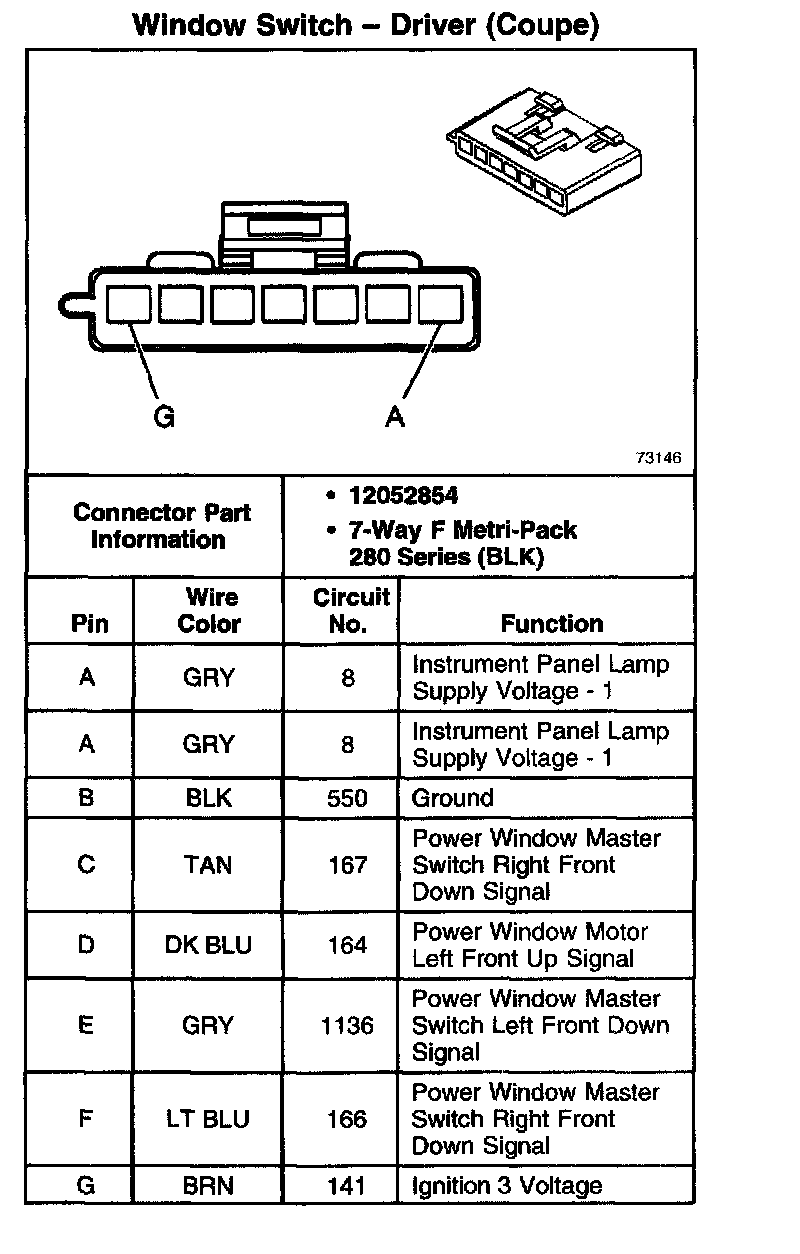

Window Switch - Driver (Coupe)

Window Switch - Driver (Coupe):
