Home
>>
Oldsmobile
>>
2001
>>
Alero V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Right I/P Fuse Block Identification
Right I/P Fuse Block Identification

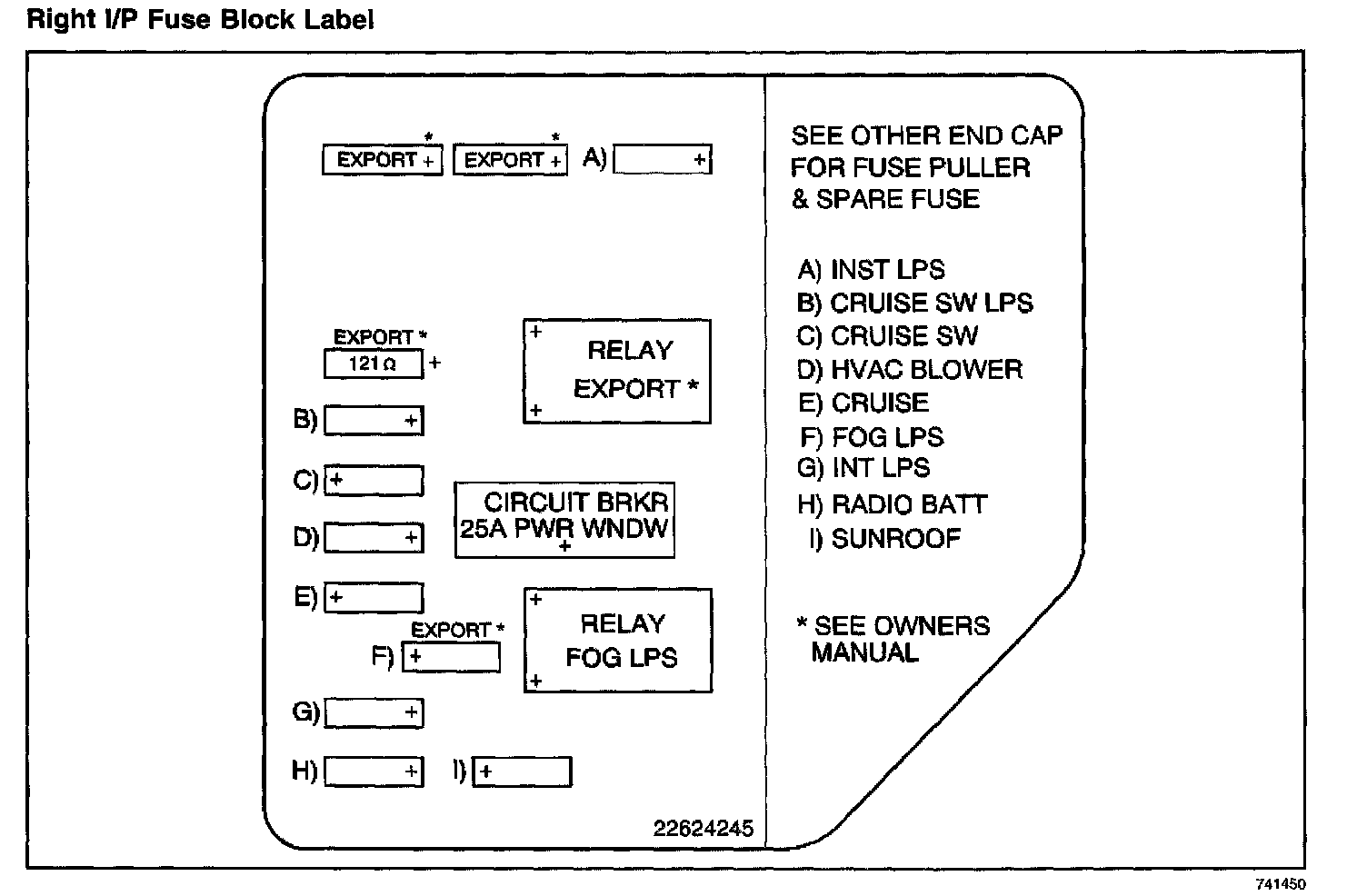

Right I/P Fuse Block Label:

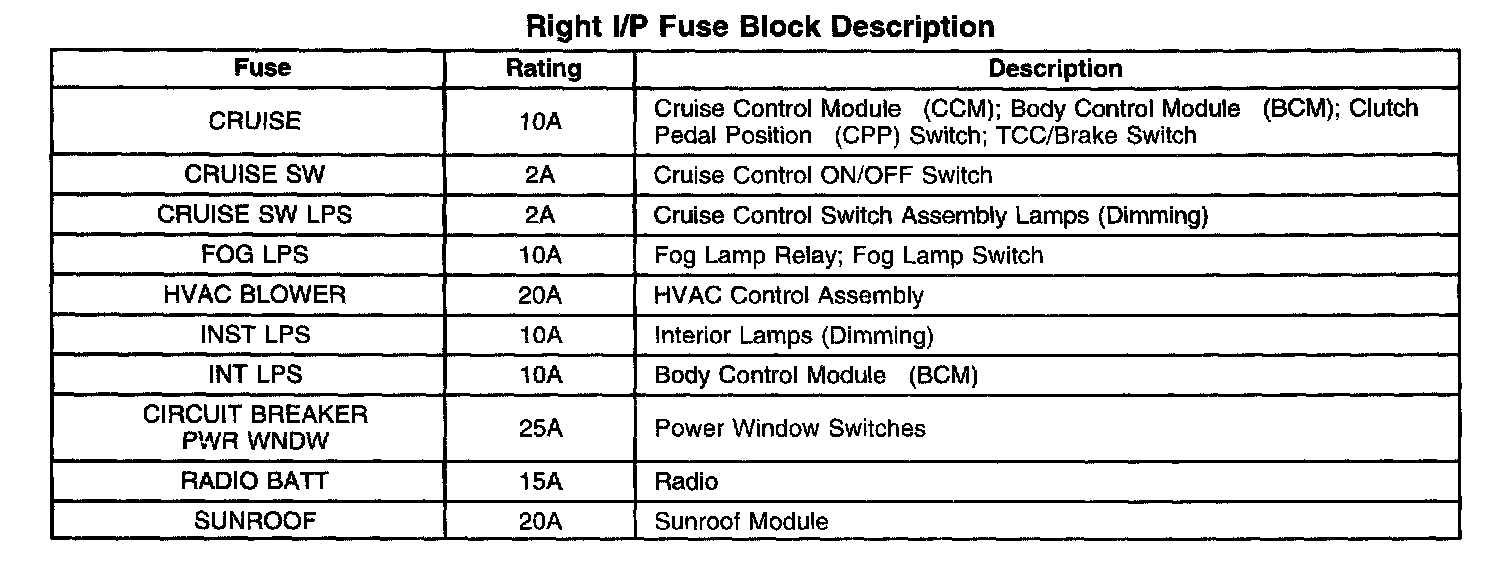

Right I/P Fuse Block Description:
