Electronic Brake Control Module
>>
Electronic Brake Control Module (EBCM) (W/O RPO JL4)
Electronic Brake Control Module (EBCM) (W/O RPO JL4)
Electronic Brake Control Module
(
EBCM
) (w/o RPO JL4)

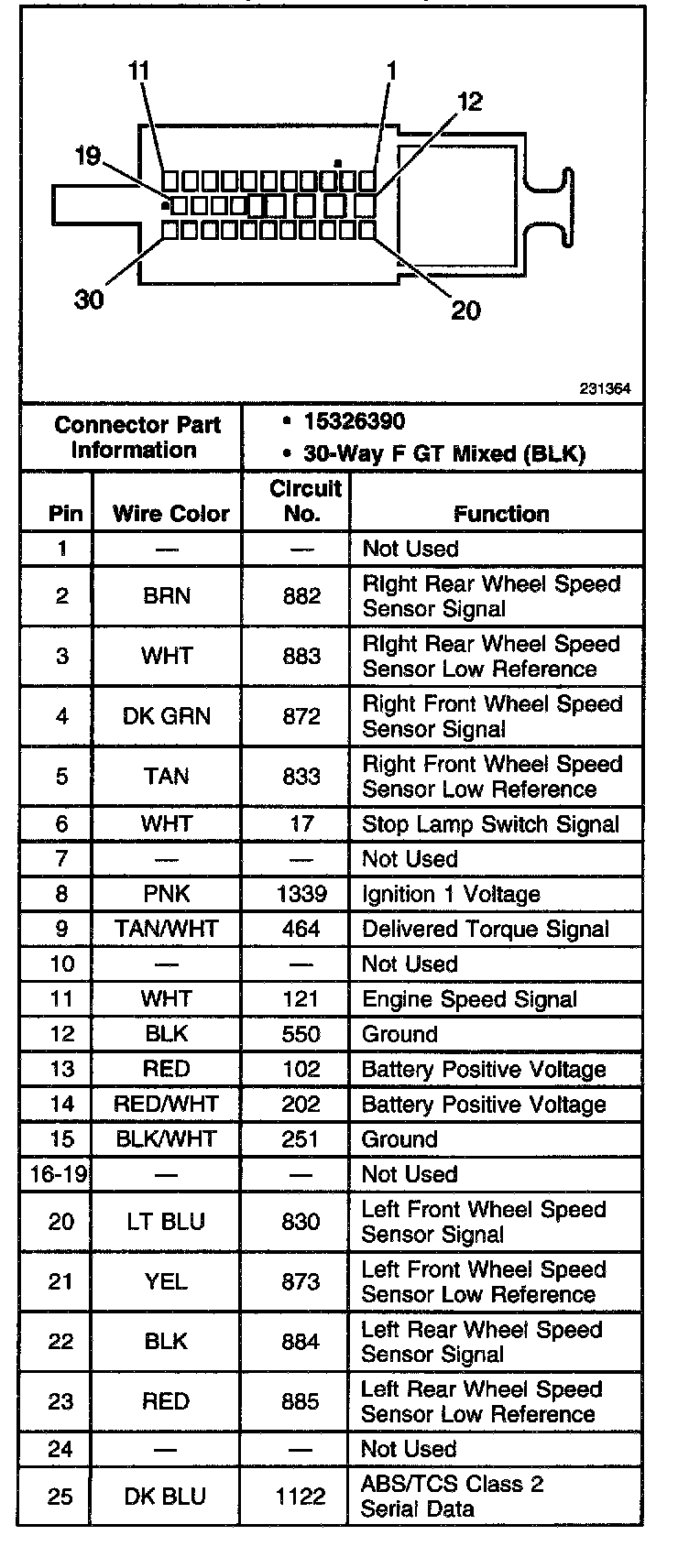

Part 1 of 2

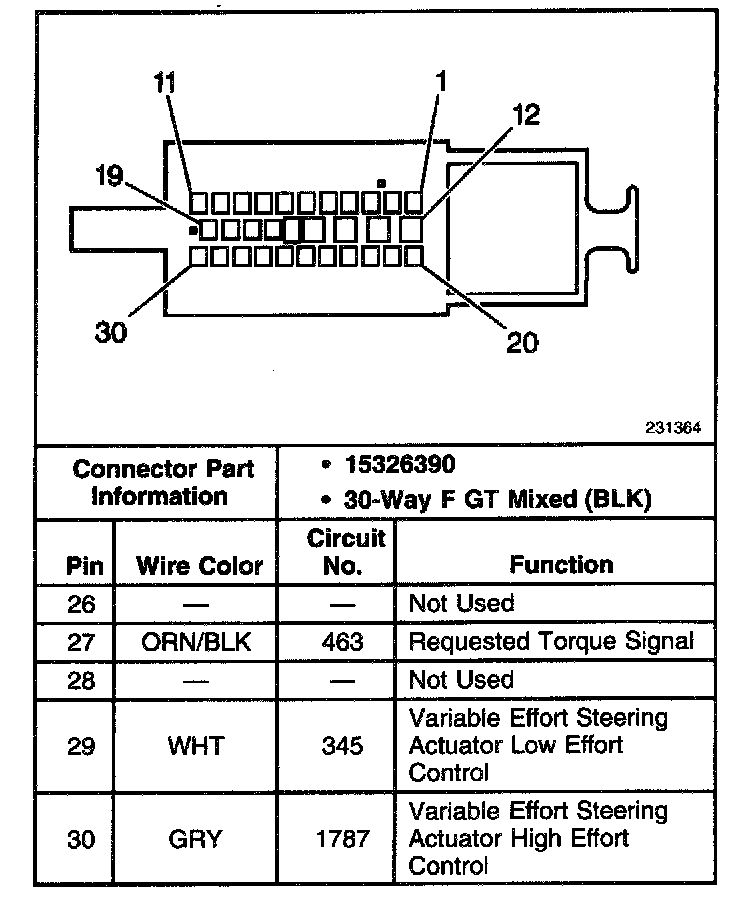

Part 2 of 2
