Ignition Control Module
>>
Ignition Control Module - Rear Bank
Ignition Control Module - Rear Bank

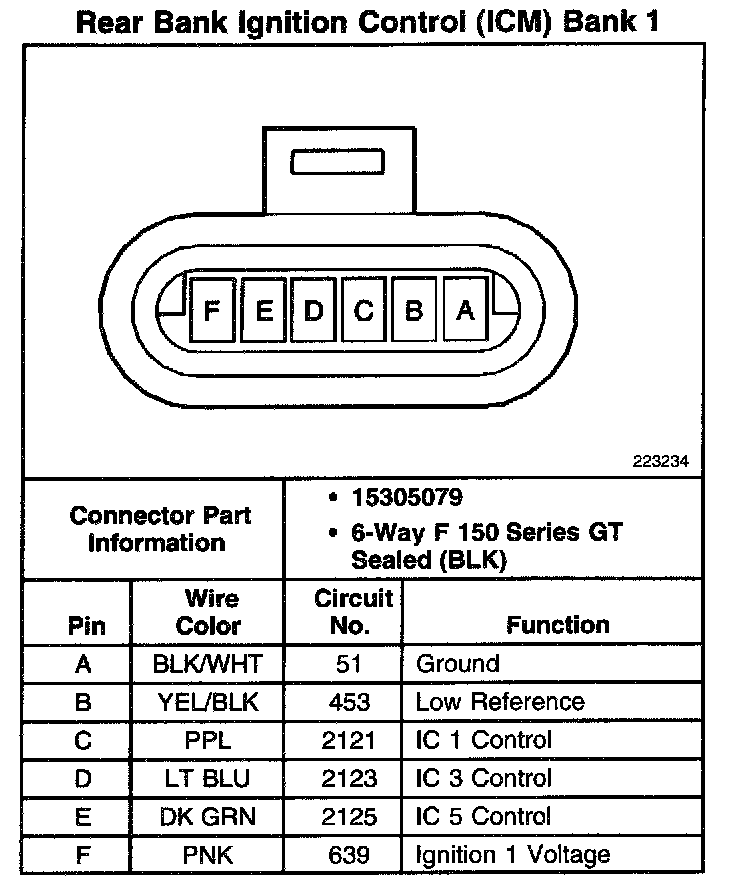

Rear Bank Ignition Control (ICM) Bank 1:
