Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>
A/T Shift Lock Control Connector End Views
>>

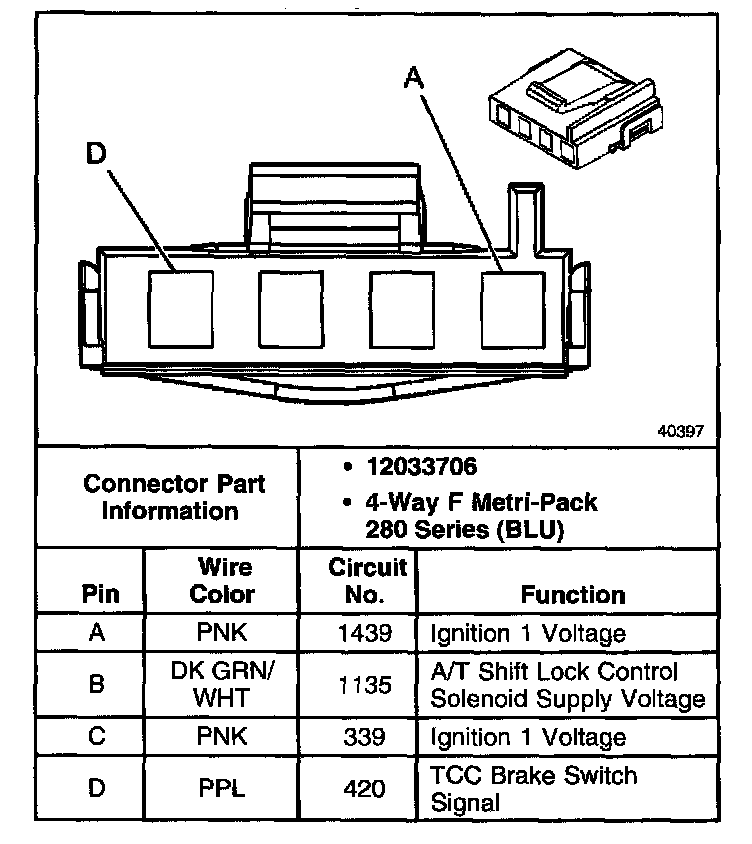

Stoplamp Switch C2
Stoplamp Switch C2
