Scan Tool Data List - HVAC Control Module

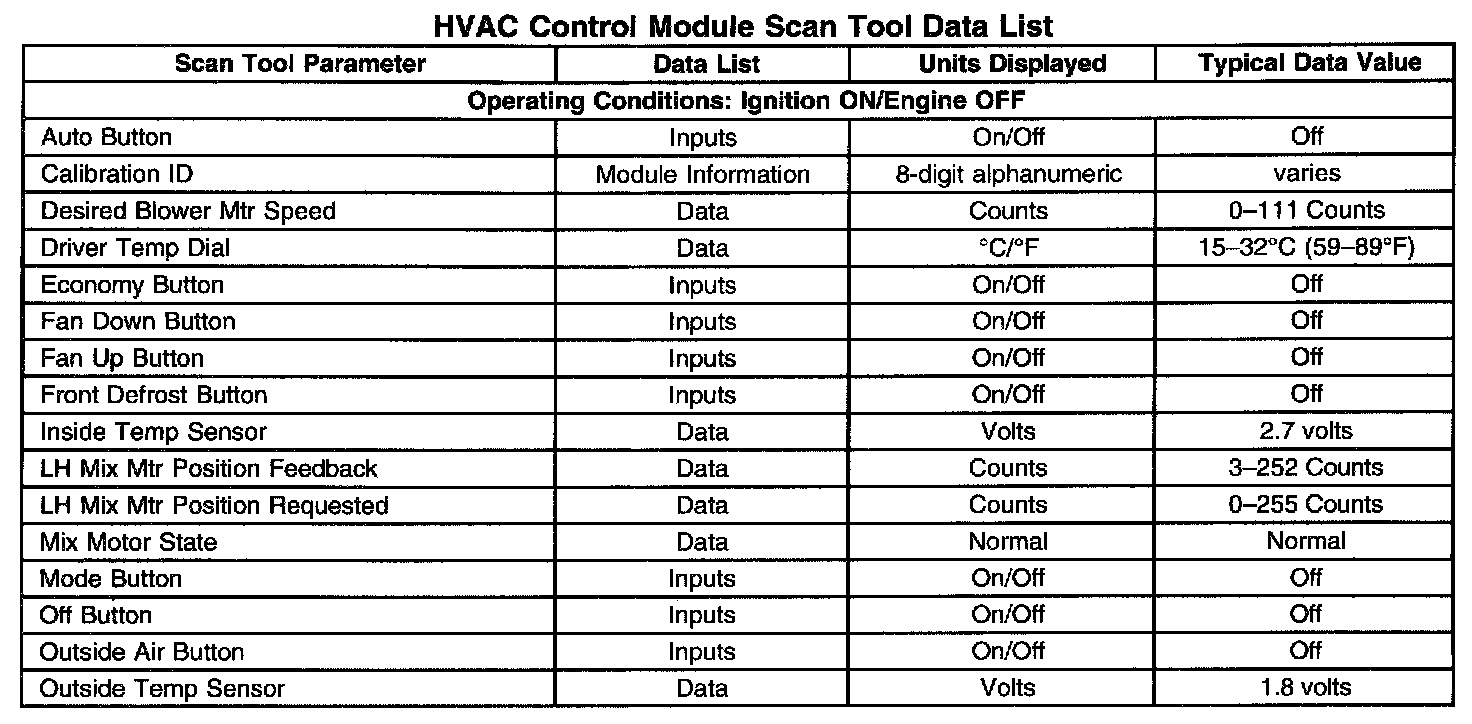

HVAC Control Module Scan Tool Data List (Part 1 Of 2):



HVAC Control Module Scan Tool Data List (Part 2 Of 2):
