Fuel Tank Pressure Sensor: Service and Repair
FUEL TANK PRESSURE SENSOR REPLACEMENTREMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Remove the spare tire cover, the jack, and the spare tire.
3. Remove the trunk liner. Refer to Compartment Trim Panel Replacement - Rear in Trunk/Liftgate.

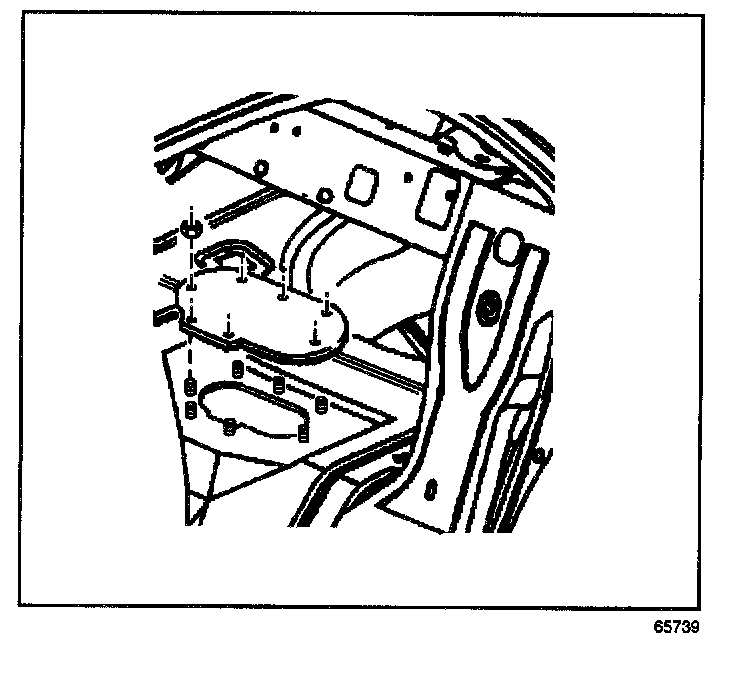

4. Remove the (7) nuts retaining the fuel sender access panel.
5. Remove the fuel sender access panel.
6. Disconnect the electrical connector from the fuel tank vapor pressure sensor.

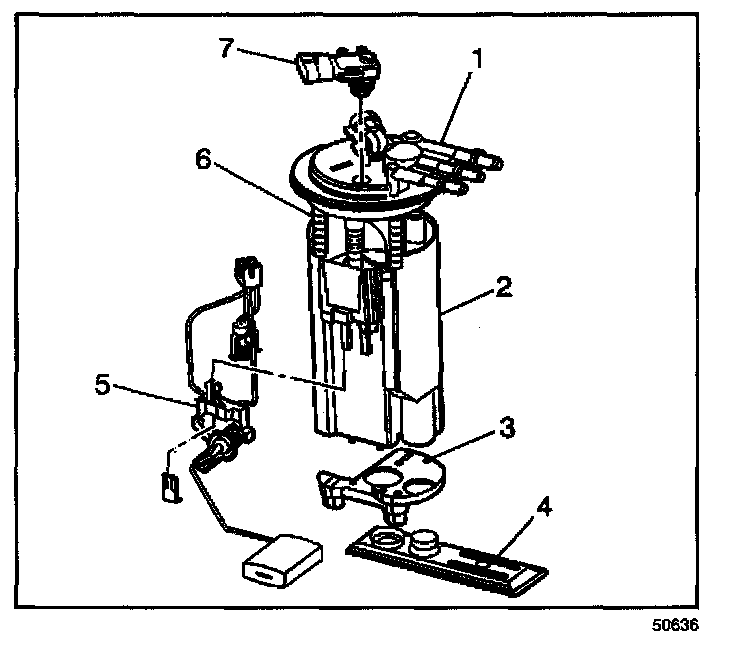

7. Remove the fuel tank pressure sensor (7) from modular fuel sender assembly.
8. Remove the fuel tank Pressure sensor seal.
INSTALLATION PROCEDURE
1. Install a new fuel tank pressure sensor seal.
2. Install the new fuel tank pressure sensor (7) to modular fuel sender.
3. Connect the electrical connector to fuel tank vapor pressure sensor
4. Install the fuel sender access panel.
NOTE: Refer to Fastener Notice in Caution and Notices.
5. Install the (7) nuts retaining the fuel sender access panel.
Tighten
Tighten the fuel sender access panel nuts to 10 N.m (89 lb in)
6. Install the trunk liner. Refer to Compartment Trim Panel Replacement - Rear in Trunk/Liftgate.
7. Install the spare tire, the jack, and the spare tire cover.
8. Connect the negative battery cable.
