Lock Replacement - Sliding Door Rear

REMOVAL PROCEDURE




1. Remove the sliding door inner trim panel.
2. Remove the sliding door water deflector.
3. Remove the sliding door latch screws.
4. When the sliding door rear lock is loose, unhook the lock rod from the sliding door rear lock.
5. Remove the sliding door rear lock from the sliding door.

INSTALLATION PROCEDURE




1. Install the sliding door rear lock to the sliding door.
2. Hook the lock rod to the sliding door rear lock.

NOTE: Refer to Fastener Notice in Service Precautions.

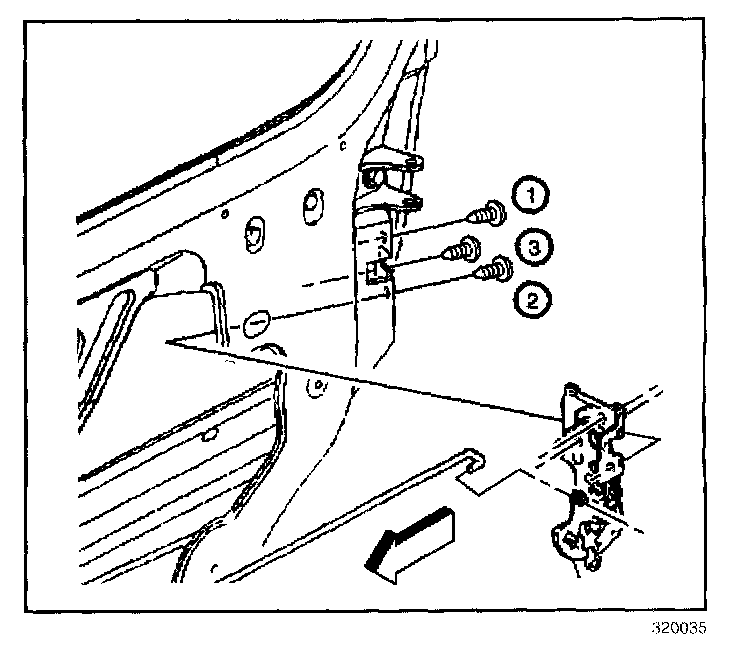

3. Install the sliding door rear lock screws according to the specified fastener tightening sequence.

Tighten
Tighten the sliding door rear lock screws to 10 N.m (89 lb in).

4. Install the sliding door water deflector.
5. Install the sliding door inner trim panel.
