Power Sliding Door (PSD) On/Off-Open/Close Overhead Switch

REMOVAL PROCEDURE

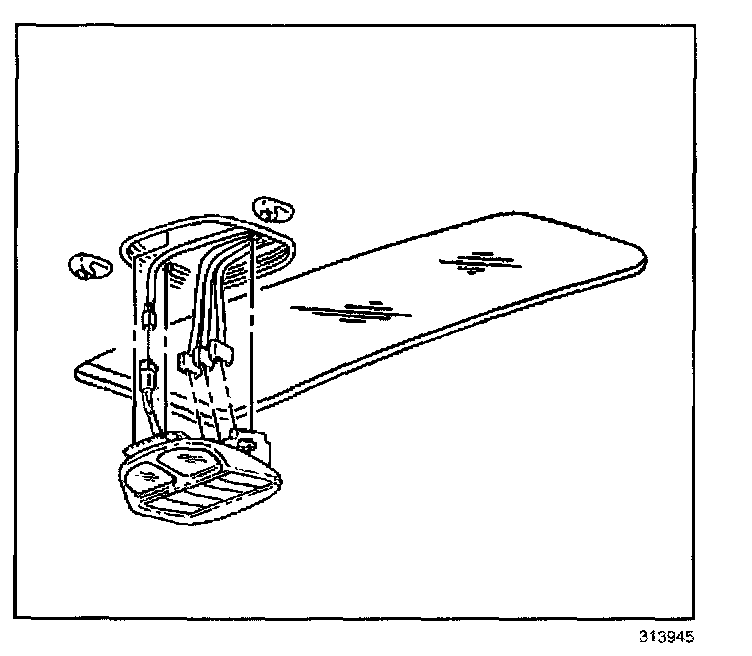

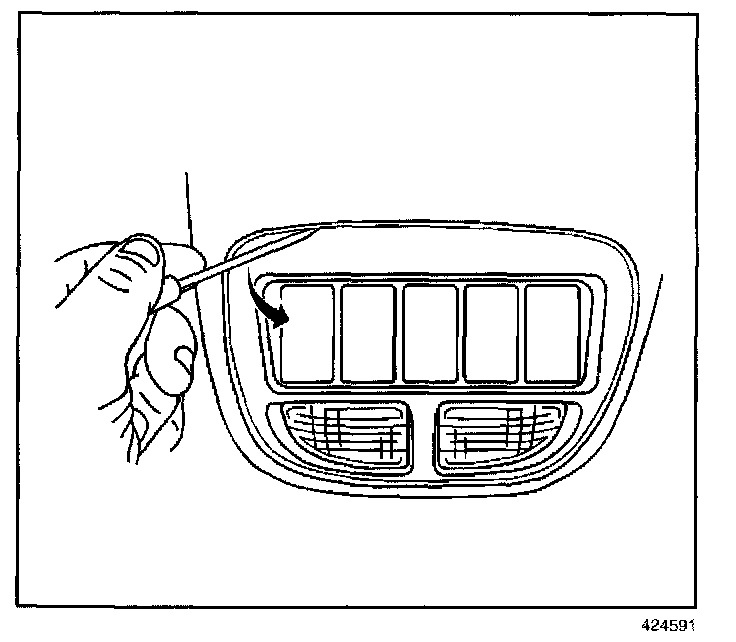

1. Insert a small flat-bladed tool between the interior lamp/multifunction switch/reading lamp housing and the overhead console.
2. Press inward and down in order to release the interior lamp/multifunction switch/reading lamp housing from the overhead console.




3. Remove the interior lamp/multifunction switch/reading lamp housing from the overhead console.
4. Disconnect the electrical connectors from the interior lamp/multifunction switch.

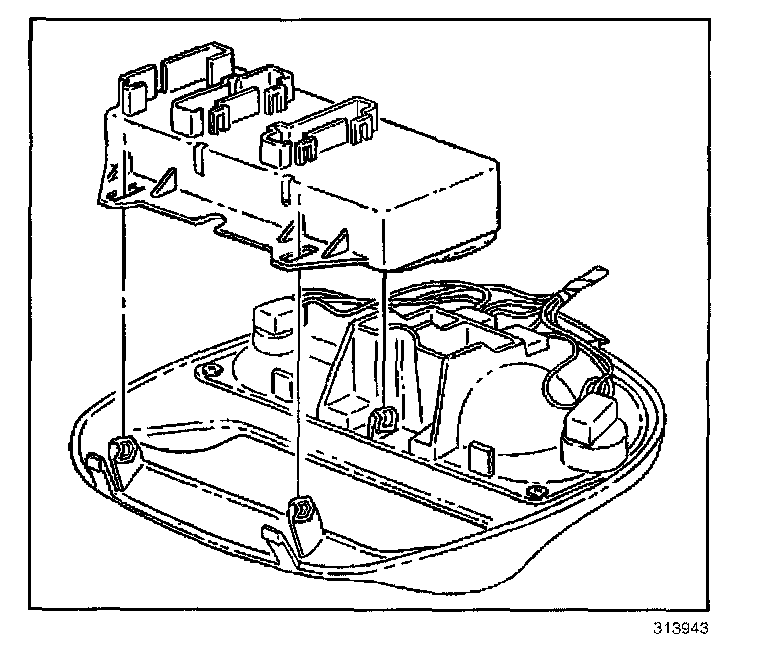

5. Remove the interior lamp/multifunction switch by using pliers in order to compress the interior lamp/multifunction switch retainers while pulling switch away from the housing.

INSTALLATION PROCEDURE




1. Snap the interior lamp/multifunction switch into the interior lamp/multifunction switch/reading lamp housing.




2. Connect the electrical connectors.
3. Align the retaining tabs on the interior lamp/multifunction switch/reading lamp housing with the overhead console
4. Press up on the interior lamp/multifunction switch/reading lamp housing in order to snap the housing into the overhead console.
