In-Line Connector C216 (Yellow), Body Harness to Inflatable Restraint I/P Module
In-Line Connector C216 (Yellow), Body Harness to Inflatable Restraint I/P Module

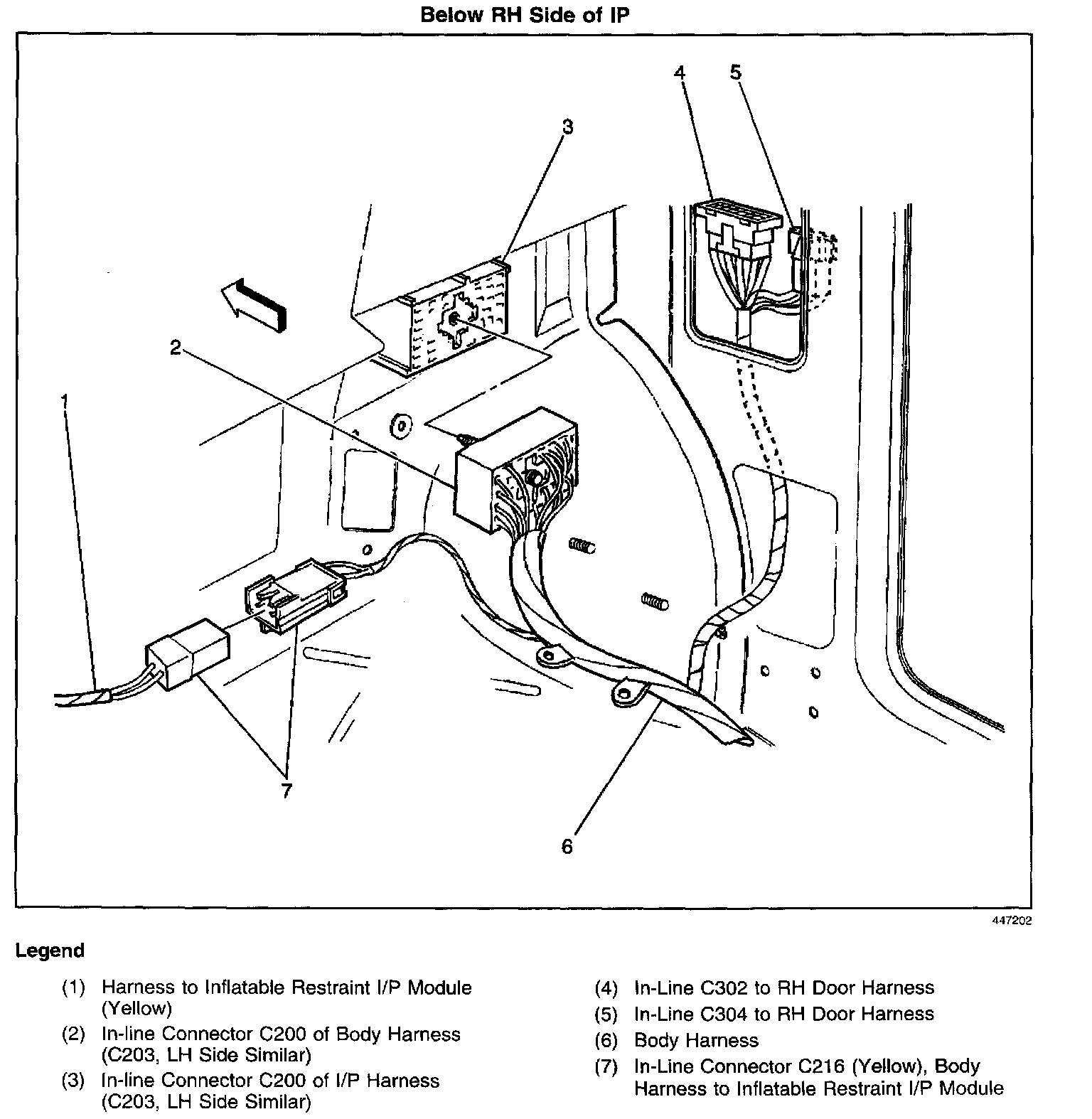

Locations View:
